Partiron

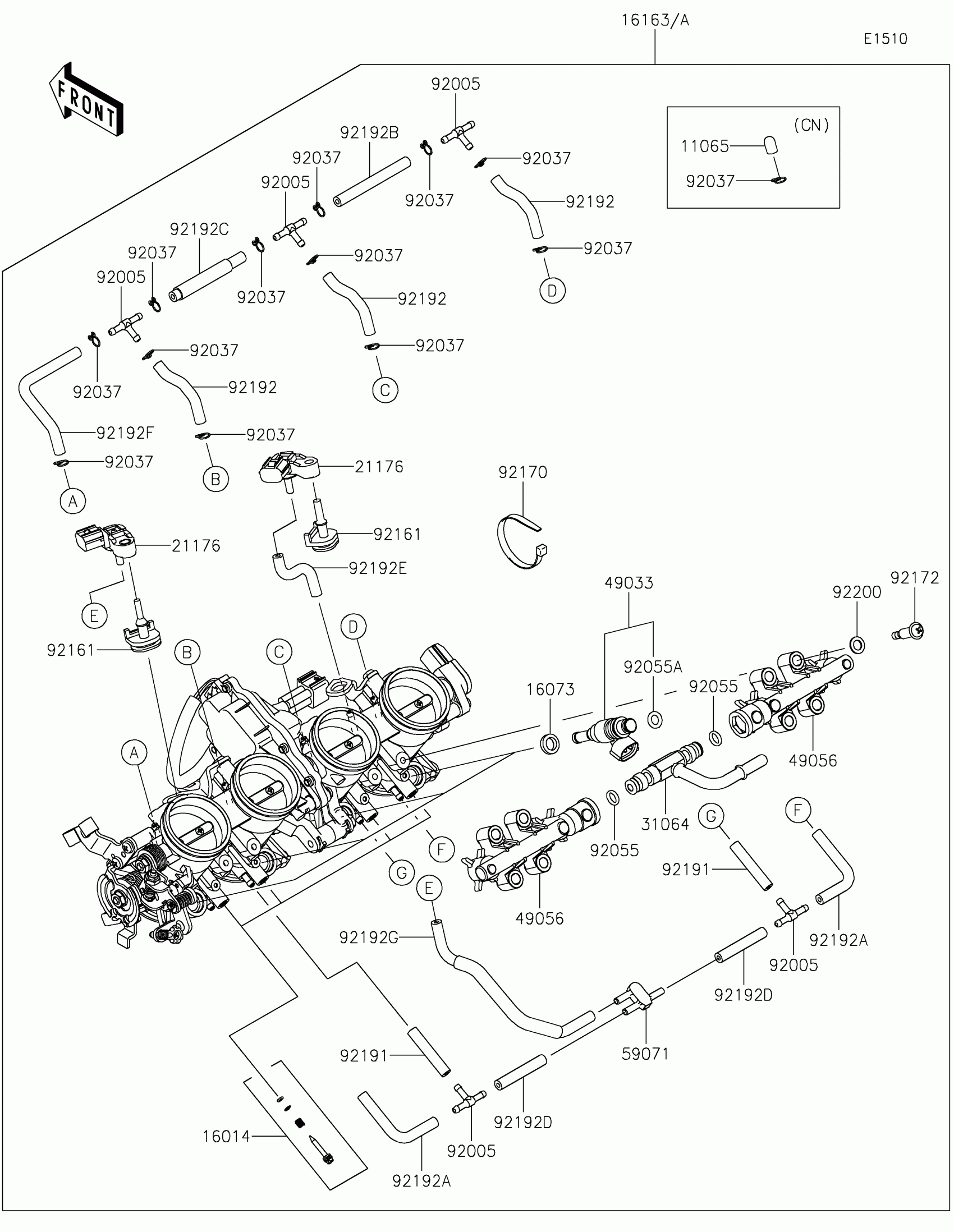

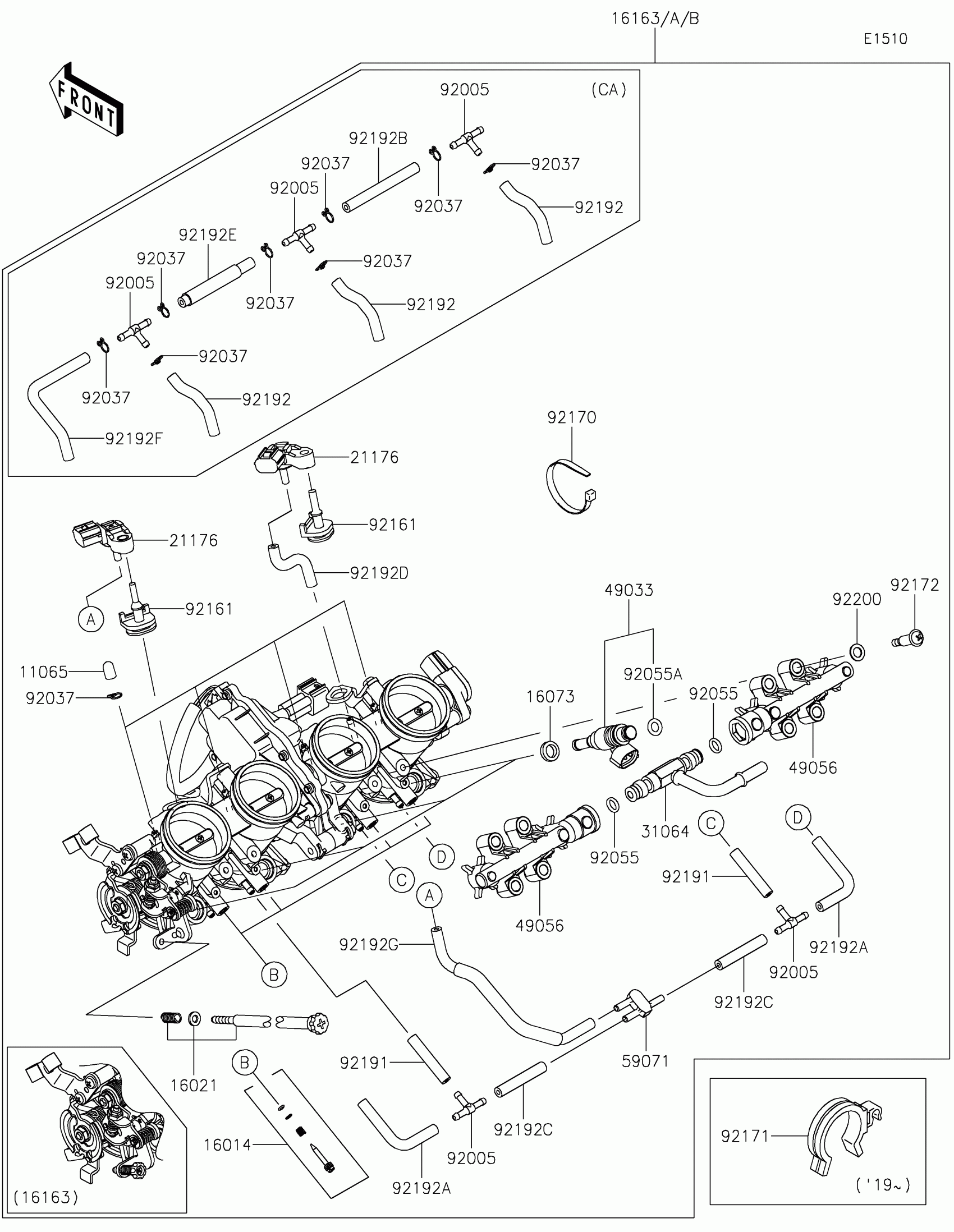

Kawasaki Z900RS CAFE Throttle Diagram

#

Description
Price

16014

SCREW-PILOT AIR

16014-0017

$22.08

16021

SCREW-THROTTLE STOP

16021-0032

$81.83

16073

INSULATOR,INJECTER

16073-1123

$7.41

16163A

THROTTLE-ASSY

16163-1155

$1,984.35

16163B

THROTTLE-ASSY

16163-1156

$1,984.35

21176

SENSOR,PRESSURE

21176-0111

$226.99

31064

PIPE-COMP

31064-0692

$87.59

49033

NOZZLE-INJECTION

49033-0034

$124.94

49056

PIPE-INJECTION

49056-0049

$105.63

59071

JOINT

59071-0022

$16.34

92055

RING-O

92055-0761

$7.31

92055A

RING-O,REGULATOR-FUEL

92055-2187

$2.42

92161

DAMPER

92161-0673

$4.85

92170

CLAMP

92170-3749

$3.15

92171

CLAMP

92171-0359

$9.76

92172

SCREW,PIPE INJECTION

92172-0828

$2.11

92191

TUBE,3.2X7.4X40

92191-1551

$2.27

92192

TUBE,3.5X7.5X55

92192-1349

$13.05

92192A

TUBE,3.2X7.4X75

92192-1446

$10.93

92192B

TUBE,3.5X7.5X70

92192-1447

$13.05

92192C

TUBE,3.2X7.4X45

92192-1617

$7.41

92192D

TUBE,3.2X7.4X55

92192-1802

$10.75

92192E

TUBE,3.5X7.5X70

92192-1803

$13.05

92192F

TUBE,3.5X7.5X115

92192-1804

$22.86

92192G

TUBE,3.2X7.4X175

92192-1805

$25.24

92200

WASHER

92200-3807

$4.53
