2020 Kawasaki Z900RS Cafe Seat Cover Diagram

← All diagrams

Find the part on the Seat Cover diagram for your 2020 Kawasaki Z900RS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

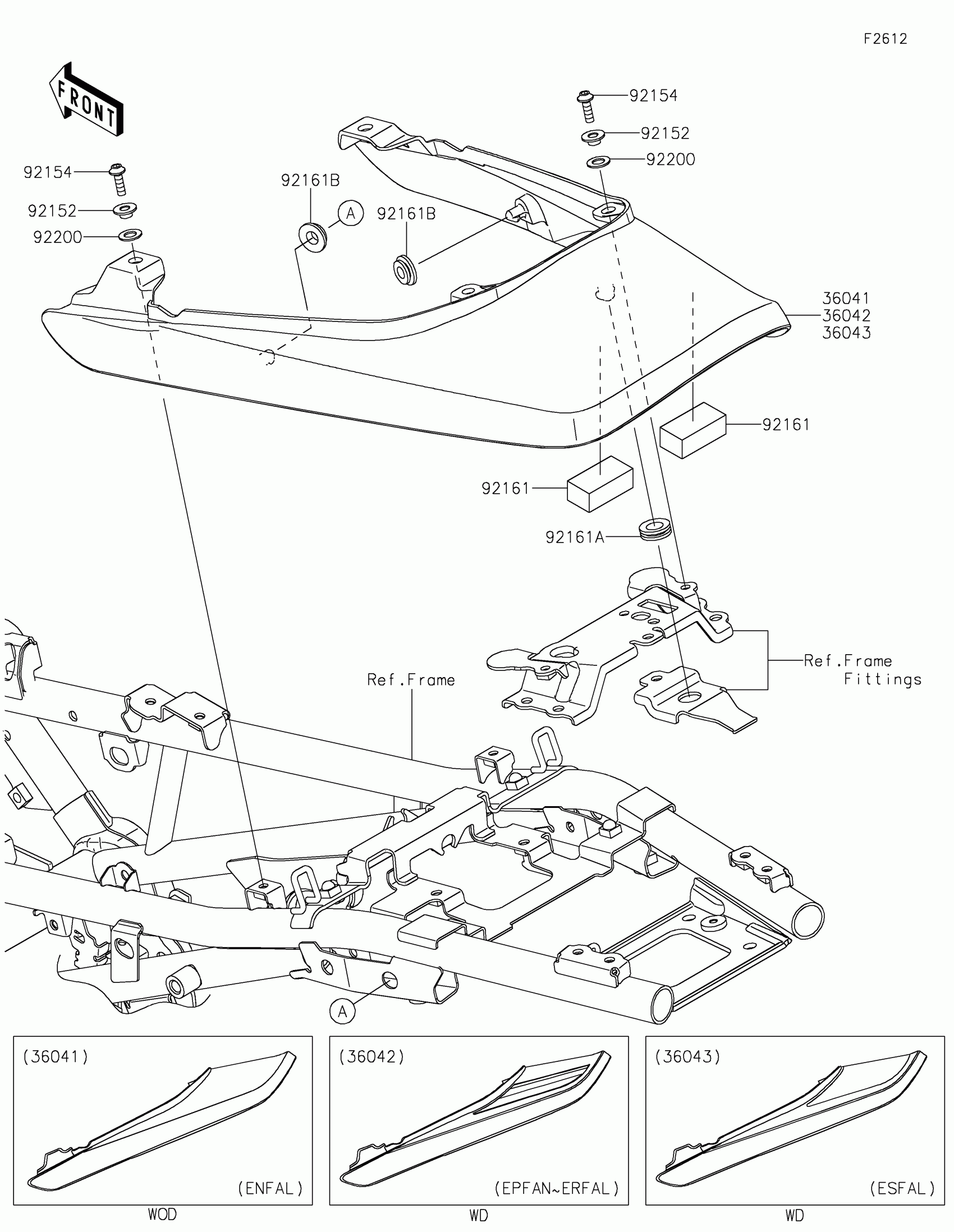

2020 Kawasaki Z900RS Cafe Seat Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36041B

COVER-TAIL,V.L.GREEN

36041-0049-7F

1

$302.09

In stock

92075

DAMPER

92075-161

1

$3.72

In stock

92152

COLLAR,5.6X8X5.45

92152-2537

1

$3.51

In stock

92154

BOLT,SOCKET,5X16

92154-1701

1

$1.10

In stock

92161

DAMPER,20X40X15

92161-1608

1

$1.32

In stock

92161A

DAMPER,10X20X6

92161-2168

1

$3.92

In stock

92200

WASHER,8.2X15X1

92200-0742

1
Out of stock
