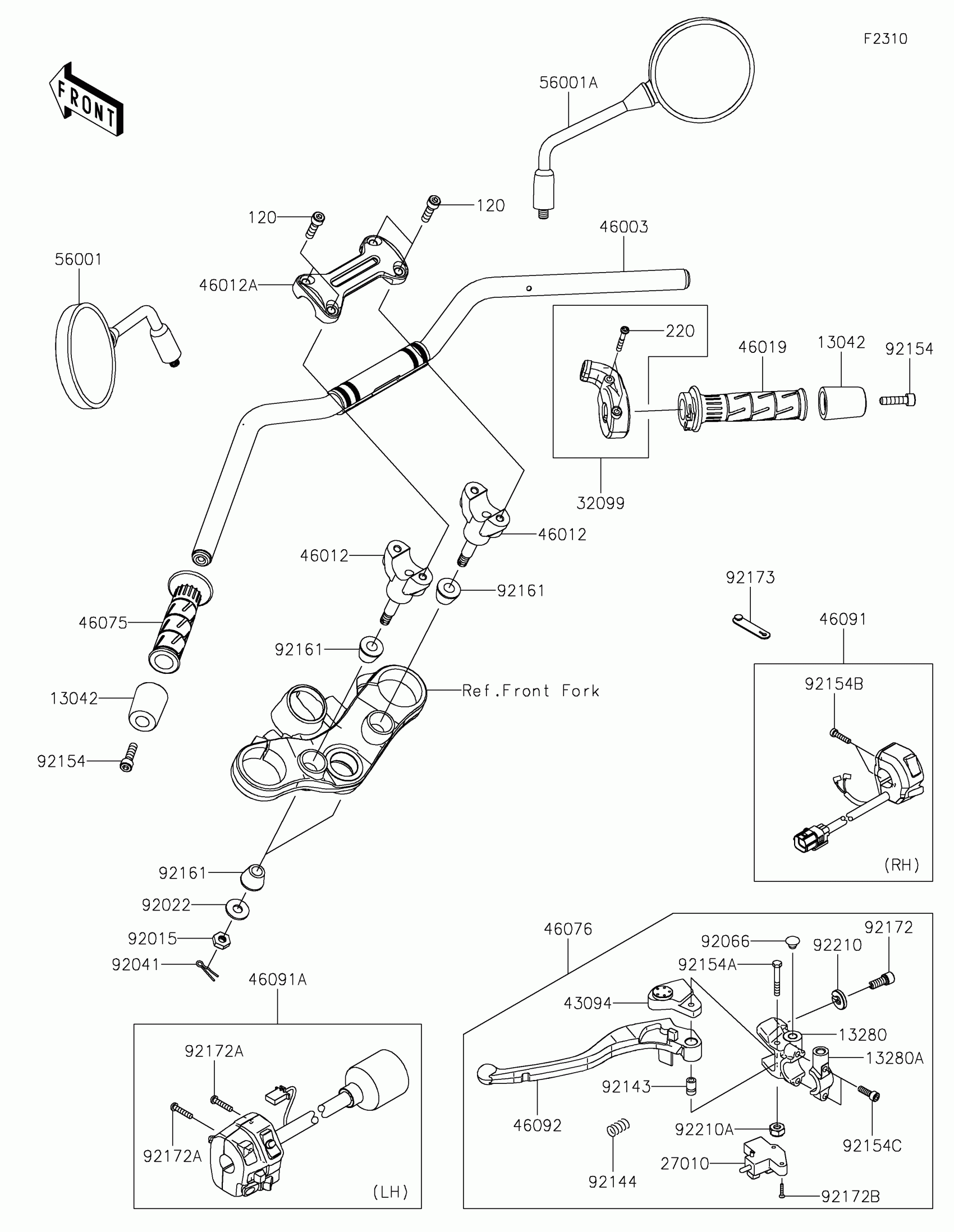

Kawasaki Z900RS CAFE Handlebar Diagram

#

Description
Price

120

BOLT-SOCKET,8X30

120CC0830

$2.82

13042

WEIGHT,HANDLE

13042-5007

$45.66

13280

HOLDER,CLUTCH LEVER

13280-0248

$52.39

13280A

HOLDER,CLUTCH LEVER

13280-0772

$26.18

220

SCREW-PAN-CROS,5X35

220AB0535

$1.49

27010

SWITCH,CLUTCH

27010-0854

$29.57

32099

CASE,THROTTLE

32099-0049

$25.10

43094

ADJUSTER

43094-0008

$36.81

46003

HANDLE,F.S.BLACK

46003-0743-18R

$311.45

46012

HOLDER-HANDLE,LWR,F.S.BLACK

46012-0381-18R

$61.83

46012A

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0382-18R

$71.52

46019

GRIP-ASSY,THROTTLE

46019-0001

$37.15

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP

46076-0139

$68.38

46091

HOUSING-ASSY-CONTROL,RH

46091-0378

$153.89

46091A

HOUSING-ASSY-CONTROL,LH

46091-0442

$296.57

46092

LEVER-GRIP

46092-0570

$15.87

56001

MIRROR-ASSY,LH

56001-0384

$92.29

56001A

MIRROR-ASSY,RH

56001-0385

$92.29

92015

NUT,LOCK,10MM

92015-1962

$4.59

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$2.59

92041

COTTER,8MM

92041-1060

$3.15

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92154

BOLT,SOCKET,8X30

92154-0502

$2.84

92154A

BOLT

92154-2318

$6.02

92154B

BOLT,5X22

92154-2483

$3.14

92154C

BOLT,SOCKET,6X20

92154-2644

$2.98

92161

DAMPER,HANDLE HOLDER

92161-0113

$4.02

92172

SCREW

92172-1138

$5.76

92172A

SCREW-PAN-CROS,5X25

92172-1140

$8.97

92172B

SCREW,3X16

92172-1185

$1.57

92173

CLAMP,RUBBER PLATE

92173-1229

$3.56

92210

NUT

92210-1519

$10.02

92210A

NUT,LOCK,6MM

92210-1544

$2.72
