2020 Kawasaki Z900RS ABS Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

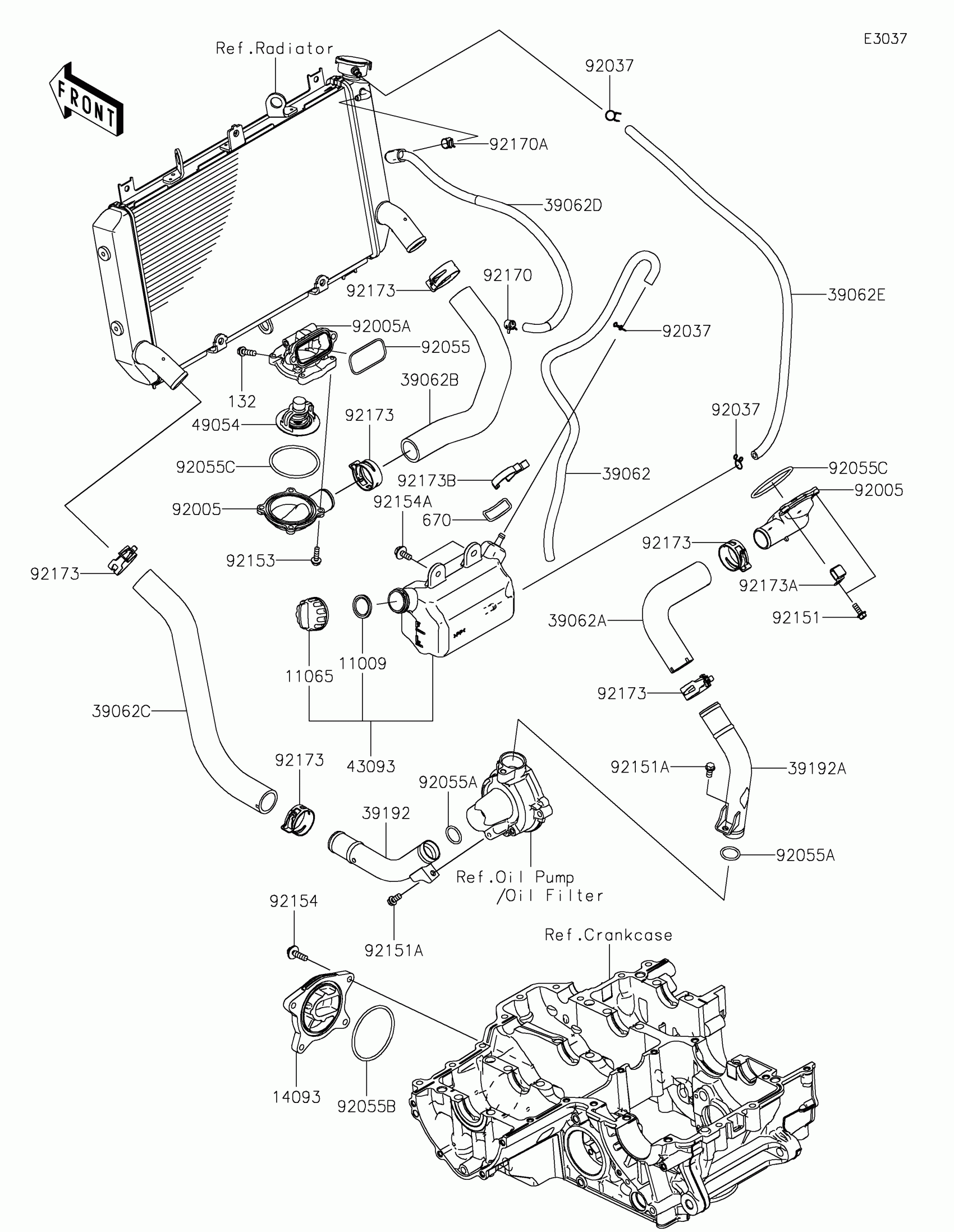

2020 Kawasaki Z900RS ABS Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0991

1
Out of stock

14093

COVER

14093-0625

1
Out of stock

39062

1

$10.39

In stock

39062A

HOSE-COOLING,CYLINDER-RADIATOR

39062-0779

1
Out of stock

39062B

HOSE-COOLING,RADIATOR-W/PUMP

39062-0780

1
Out of stock

39062C

1

$16.53

In stock

39062D

1

$18.05

In stock

39062E

1

$38.54

In stock

39192

1

$43.96

In stock

39192A

1

$30.11

In stock

43093

RESERVOIR-ASSY-TANK

43093-0005

1
Out of stock

49054

THERMOSTAT

49054-0004

1

$53.21

In stock

92005

FITTING,THERMO CAP

92005-0883

1
Out of stock

92005A

FITTING,THERMO CASE

92005-0884

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,YP 27.6 57.6 1.9

92055-0021

1
Out of stock

92055A

RING-O,20.8X2.4

92055-0114

1

$3.11

In stock

92055B

RING-O,63.3MM

92055-0739

1

$3.26

In stock

92055C

RING-O,53.5X2.6

92055-0831

1

$6.25

In stock

92151

BOLT,5X14

92151-1764

1

$2.00

In stock

92151A

BOLT,6X12

92151-1997

1

$1.36

In stock

92153

BOLT,FLANGED,5X18

92153-1588

1

$1.20

In stock

92154

BOLT,FLANGED,6X22

92154-0403

1

$2.68

In stock

92154A

BOLT,UPSET-WP,6X16

92154-1850

1

$1.53

In stock

92170

CLAMP

92170-1493

1

$3.97

In stock

92170A

CLAMP

92170-1872

1

$3.18

In stock

92173

CLAMP,34MM

92173-1360

1

$3.16

In stock

92173A

CLAMP

92173-1663

1

$5.56

In stock

92173B

CLAMP

92173-1792

1
Out of stock

132

1

$0.94

In stock
