2020 Kawasaki Z900RS ABS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

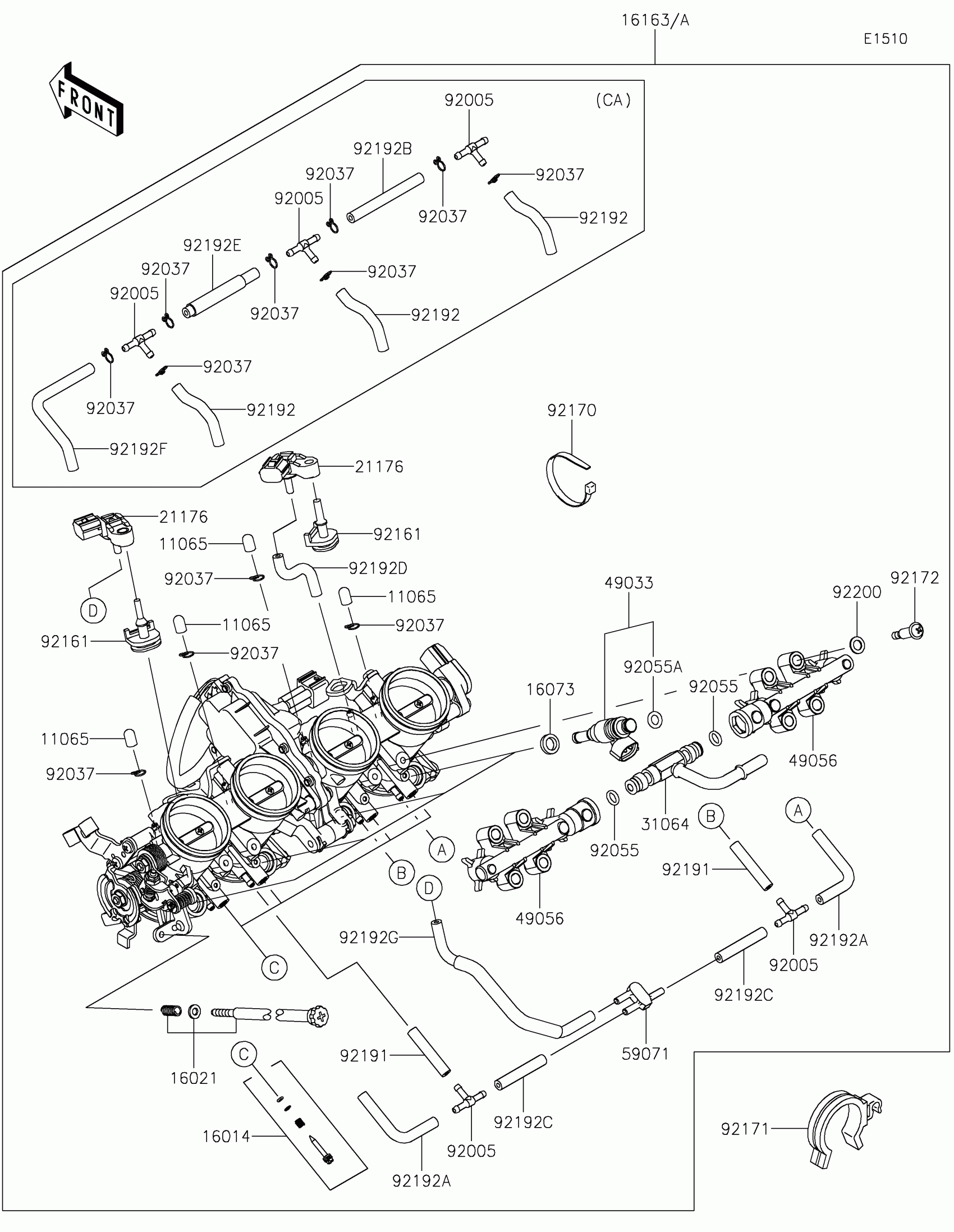

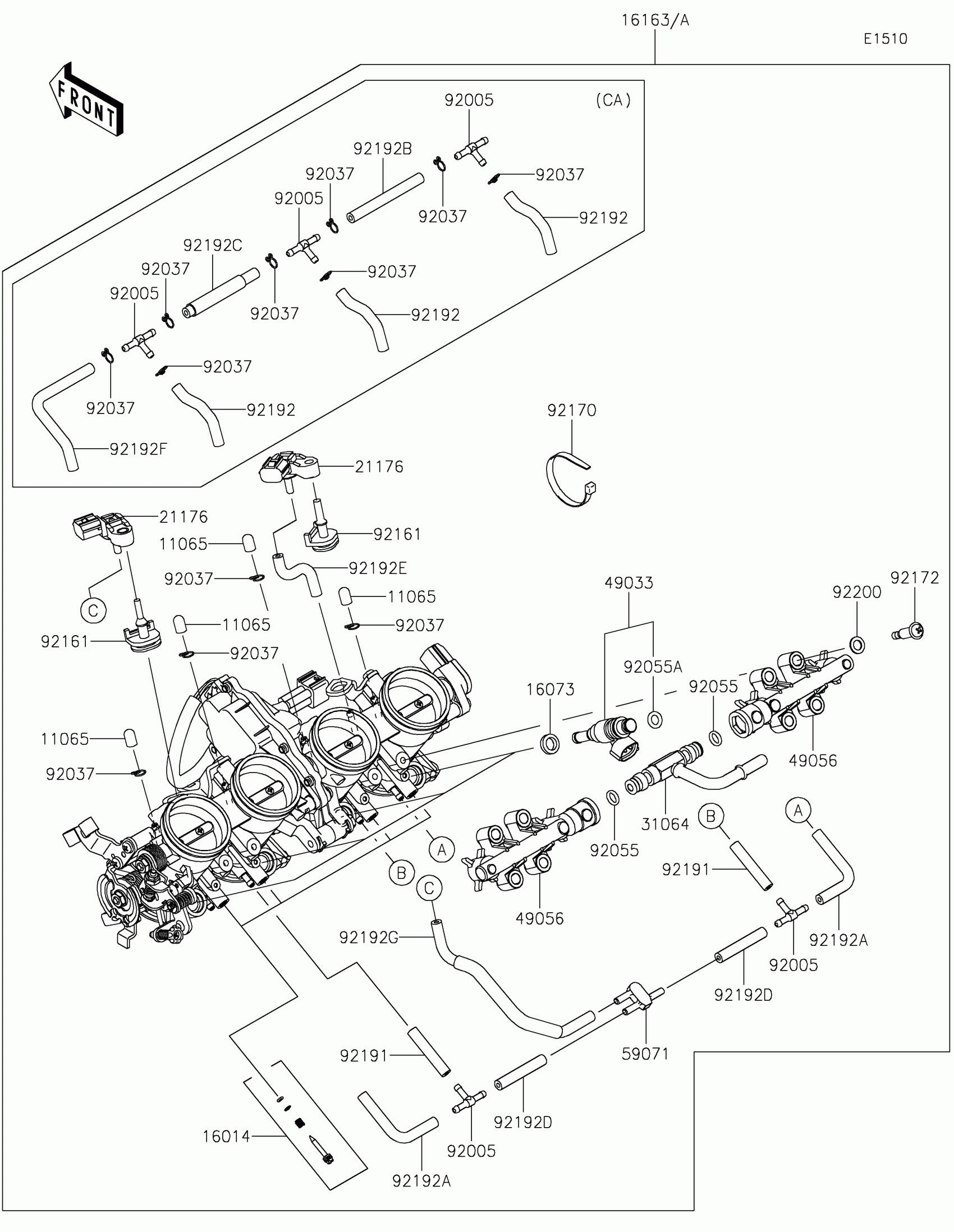

2020 Kawasaki Z900RS ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0072

1

$5.73

In stock

16014

SCREW-PILOT AIR

16014-0017

1

$24.28

In stock

16021

SCREW-THROTTLE STOP

16021-0032

1

$81.83

In stock

16073

INSULATOR,INJECTER

16073-1123

1

$7.72

In stock

16163A

THROTTLE-ASSY

16163-1156

1

$1,984.35

In stock

21176

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

31064

PIPE-COMP

31064-0692

1

$87.59

In stock

49033

NOZZLE-INJECTION

49033-0034

1

$124.94

In stock

49056

PIPE-INJECTION

49056-0049

1

$105.63

In stock

59071

JOINT

59071-0022

1

$16.34

In stock

92005

FITTING

92005-1380

1
Out of stock

92037

CLAMP,TUBE

92037-1124

1

$4.83

In stock

92055

RING-O

92055-0761

1

$7.31

In stock

92055A

1

$2.42

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92170

CLAMP

92170-3749

1

$3.15

In stock

92171

CLAMP

92171-0359

1

$9.76

In stock

92172

1

$2.44

In stock

92191

TUBE,3.2X7.4X40

92191-1551

1

$2.27

In stock

92192A

TUBE,3.2X7.4X75

92192-1446

1
Out of stock

92192C

TUBE,3.2X7.4X45

92192-1617

1
Out of stock

92192D

TUBE,3.2X7.4X55

92192-1802

1
Out of stock

92192G

TUBE,3.2X7.4X175

92192-1805

1
Out of stock

92200

WASHER

92200-3807

1
Out of stock
