2020 Kawasaki Z900RS ABS Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

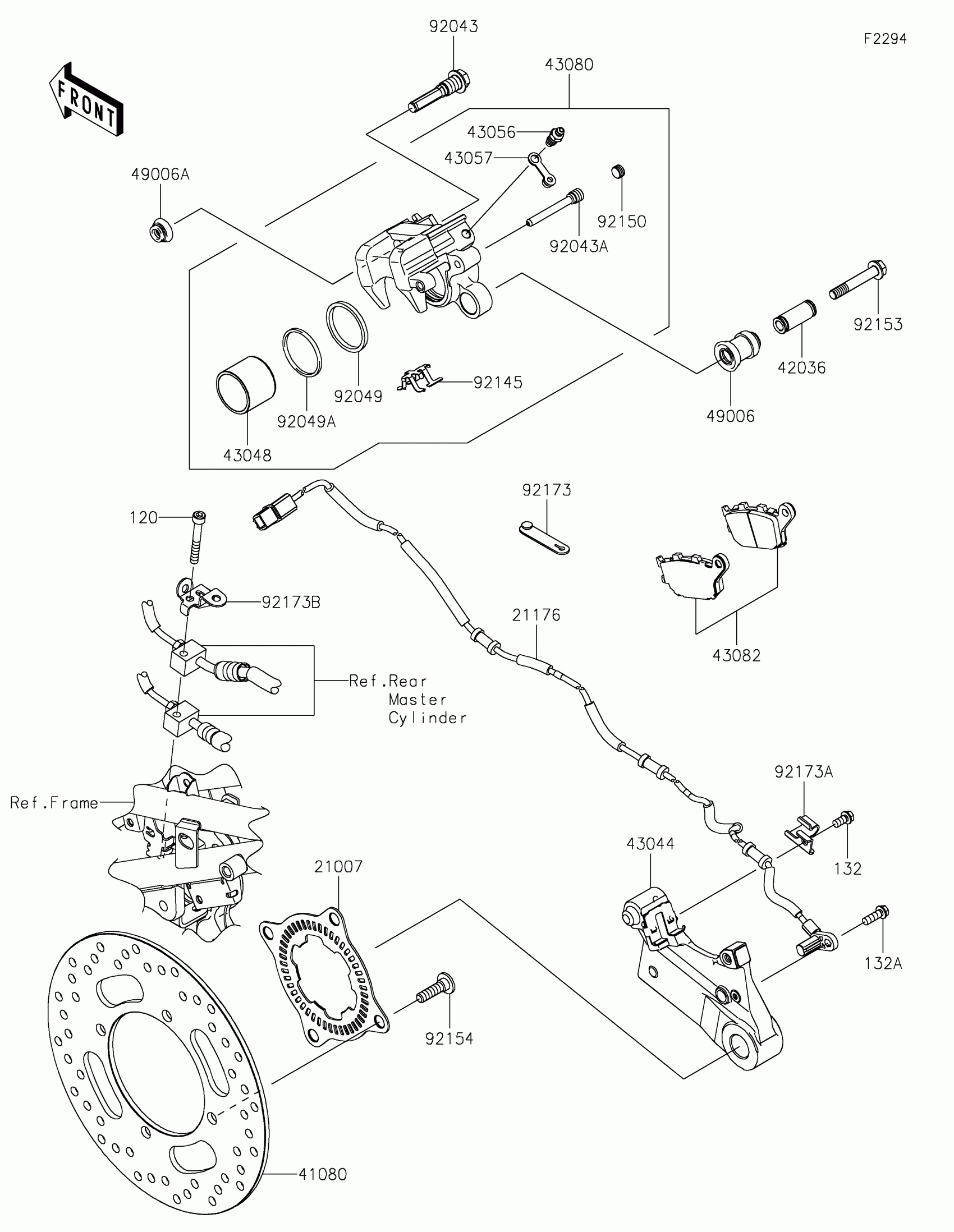

2020 Kawasaki Z900RS ABS Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,RR SENSOR

21007-0660

1
Out of stock

21176

SENSOR,SPEED,RR

21176-0877

1
Out of stock

41080

DISC,RR

41080-0678

1
Out of stock

42036

SLEEVE

42036-0050

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-0086

1
Out of stock

43048

PISTON-CALIPER

43048-0008

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0050-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0185

1
Out of stock

49006

BOOT

49006-0058

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92043

PIN

92043-0137

1
Out of stock

92043A

PIN,HANGER

92043-1520

1
Out of stock

92049

SEAL-OIL

92049-1449

1
Out of stock

92049A

SEAL-OIL

92049-1450

1
Out of stock

92145

SPRING,PAD

92145-0493

1
Out of stock

92150

BOLT,PLUG

92150-1692

1
Out of stock

92153

BOLT,FLANGED

92153-1826

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-1865

1
Out of stock

92173

CLAMP,RUBBER PLATE

92173-1229

1
Out of stock

92173A

CLAMP

92173-1798

1
Out of stock

92173B

CLAMP

92173-1799

1
Out of stock

120

BOLT-SOCKET,6X45

120CA0645

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X18

132BC0618

1
Out of stock
