2020 Kawasaki Z900RS ABS Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

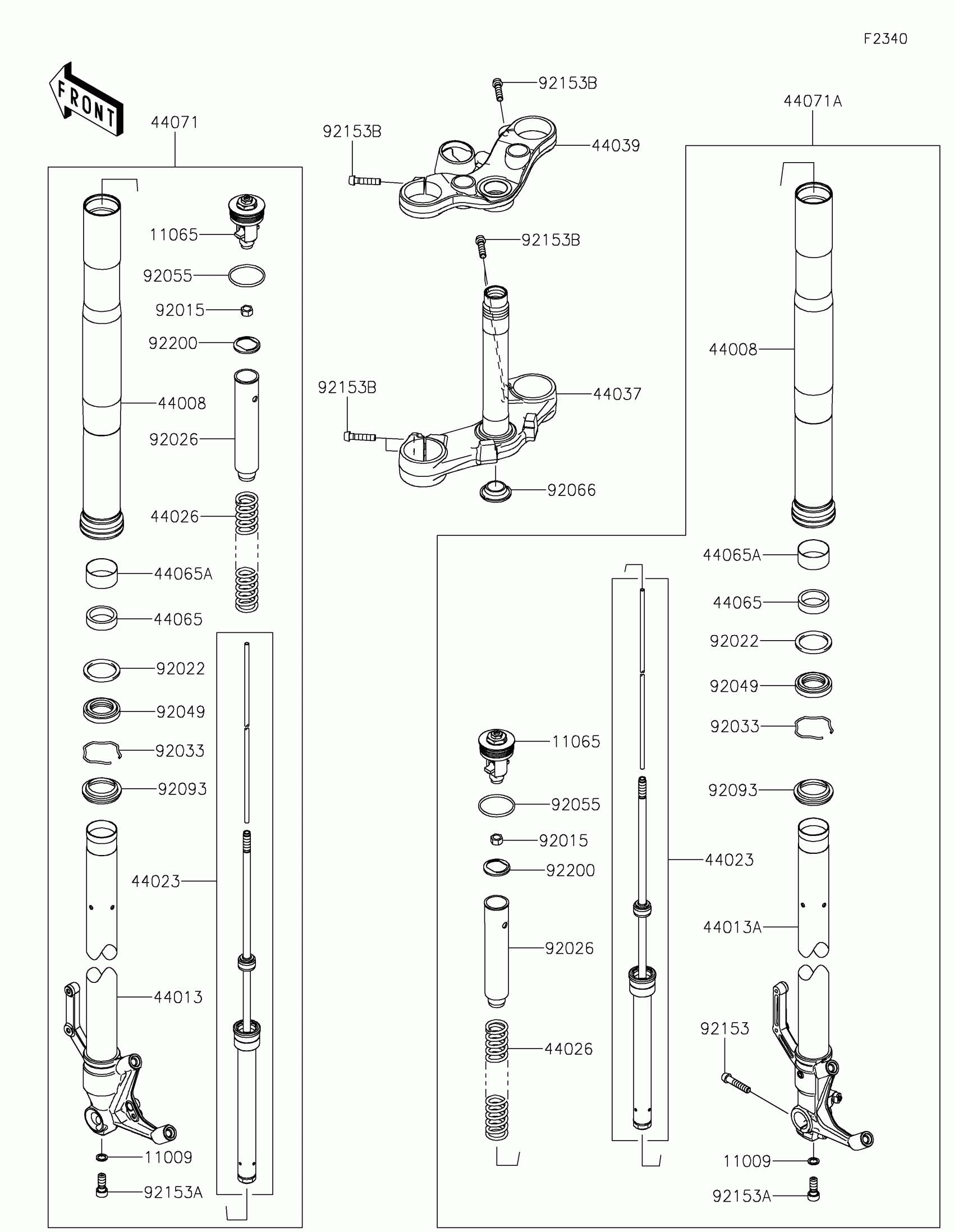

2020 Kawasaki Z900RS ABS Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X15X1.5

11009-1325

1
Out of stock

11065

CAP,GRAY

11065-1293-11G

1
Out of stock

44008

PIPE-FORK OUTER,BLACK

44008-0085-499

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-0314

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-0315

1
Out of stock

44023

CYLINDER-SET-FORK

44023-0147

1
Out of stock

44026

SPRING-FRONT FORK

44026-0225

1
Out of stock

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0172-18R

1
Out of stock

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0182-18R

1
Out of stock

44065

BUSHING-FRONT FORK

44065-0042

1

$19.47

In stock

44065A

1

$19.99

In stock

44071

DAMPER-ASSY,FORK,LH,BLACK

44071-1290-59P

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH,BLACK

44071-1291-59P

1
Out of stock

92015

NUT

92015-1795

1

$4.85

In stock

92022

1

$6.82

In stock

92026

SPACER

92026-0854

1
Out of stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL

92049-0073

1
Out of stock

92055

RING-O

92055-0145

1

$2.10

In stock

92066

PLUG

92066-0032

1

$11.19

In stock

92093

1

$22.03

In stock

92153

BOLT,SOCKET,8X40

92153-0506

1
Out of stock

92153A

BOLT,SOCKET,10X25

92153-0548

1
Out of stock

92153B

BOLT,SOCKET,8X35

92153-1472

1
Out of stock

92200

WASHER

92200-0085

1
Out of stock
