2020 Kawasaki Z900RS ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2020 Kawasaki Z900RS ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

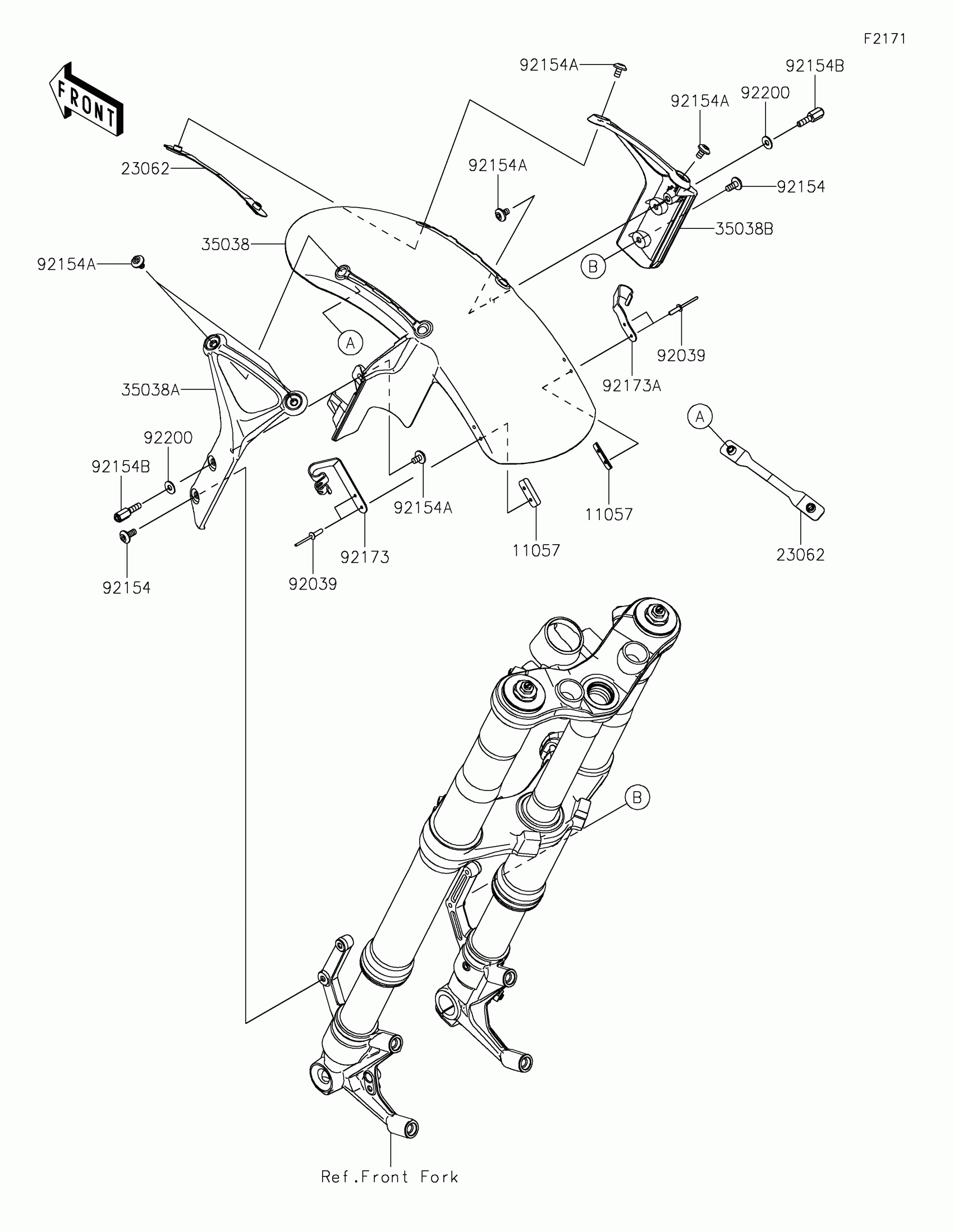

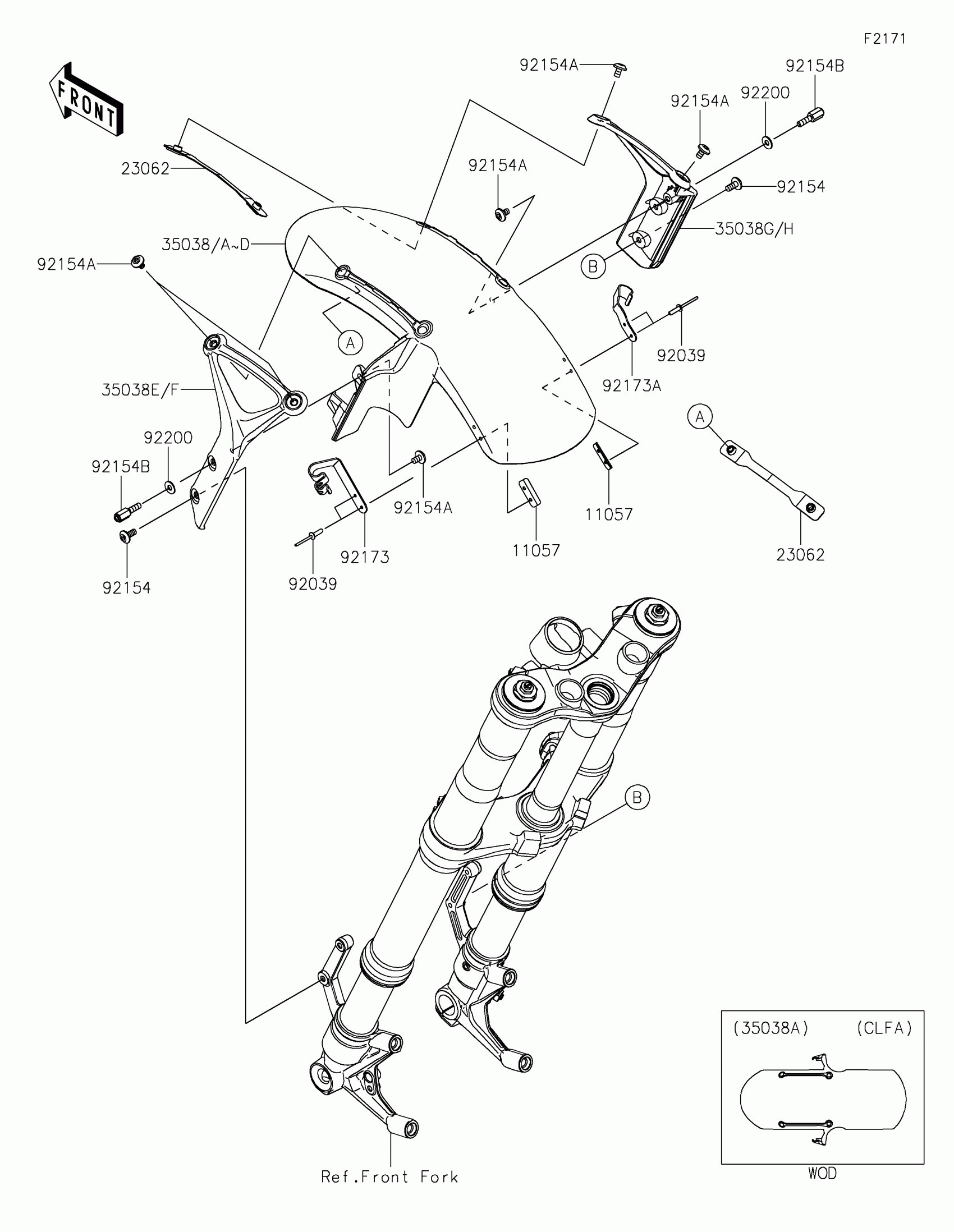

2020 Kawasaki Z900RS ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1565

1
Out of stock

23062

BRACKET-COMP

23062-0979

1
Out of stock

35038A

FENDER-FRONT,M.G.GRAY

35038-0002-45W

1
Out of stock

35038F

FENDER-FRONT,ARM,LH,B.B.SILVER

35038-0003-60N

1
Out of stock

35038H

FENDER-FRONT,ARM,RH,B.B.SILVER

35038-0004-60N

1
Out of stock

92039

RIVET,3.2X9.5

92039-0752

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1735

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-1834

1
Out of stock

92154B

BOLT,CONNECTOR

92154-3734

1
Out of stock

92173

CLAMP,LH

92173-1739

1
Out of stock

92173A

CLAMP,RH

92173-1740

1
Out of stock

92200

WASHER,6.2X15X1.2

92200-1762

1
Out of stock
