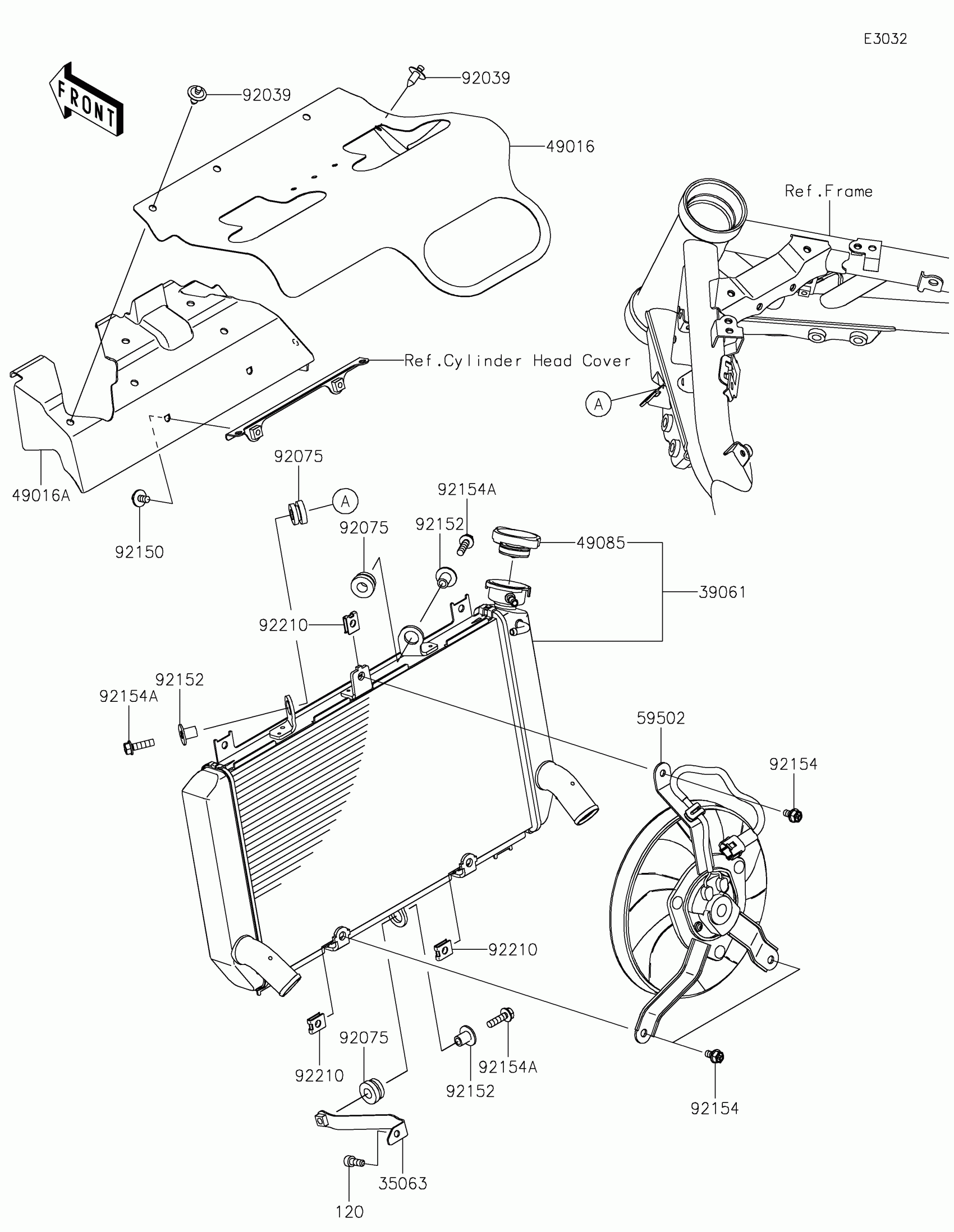

Kawasaki Z900 SE Radiator Diagram

Description

Price

35063

STAY

35063-1364

$4.42

39061

RADIATOR-ASSY

39061-0813

$847.01

49016

COVER-SEAL,HEAT

49016-0638

$54.55

49016A

COVER-SEAL,HEAT

49016-0639

$26.39

49085

CAP-ASSY-PRESSURE

49085-0006

$44.67

59502

FAN-ASSY

59502-0614

$810.90

92039

RIVET

92039-1289

$1.98

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,6X12

92150-1891

$3.53

92152

COLLAR

92152-0667

$5.63

92154

BOLT

92154-1429

$3.75

92154A

BOLT,FLANGED,6X22

92154-2673

$2.46

92210

NUT

92210-1323

$3.19

120

BOLT-SOCKET,6X16

120CA0616

$1.77
