2022 Kawasaki Z900 SE Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2022 Kawasaki Z900 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

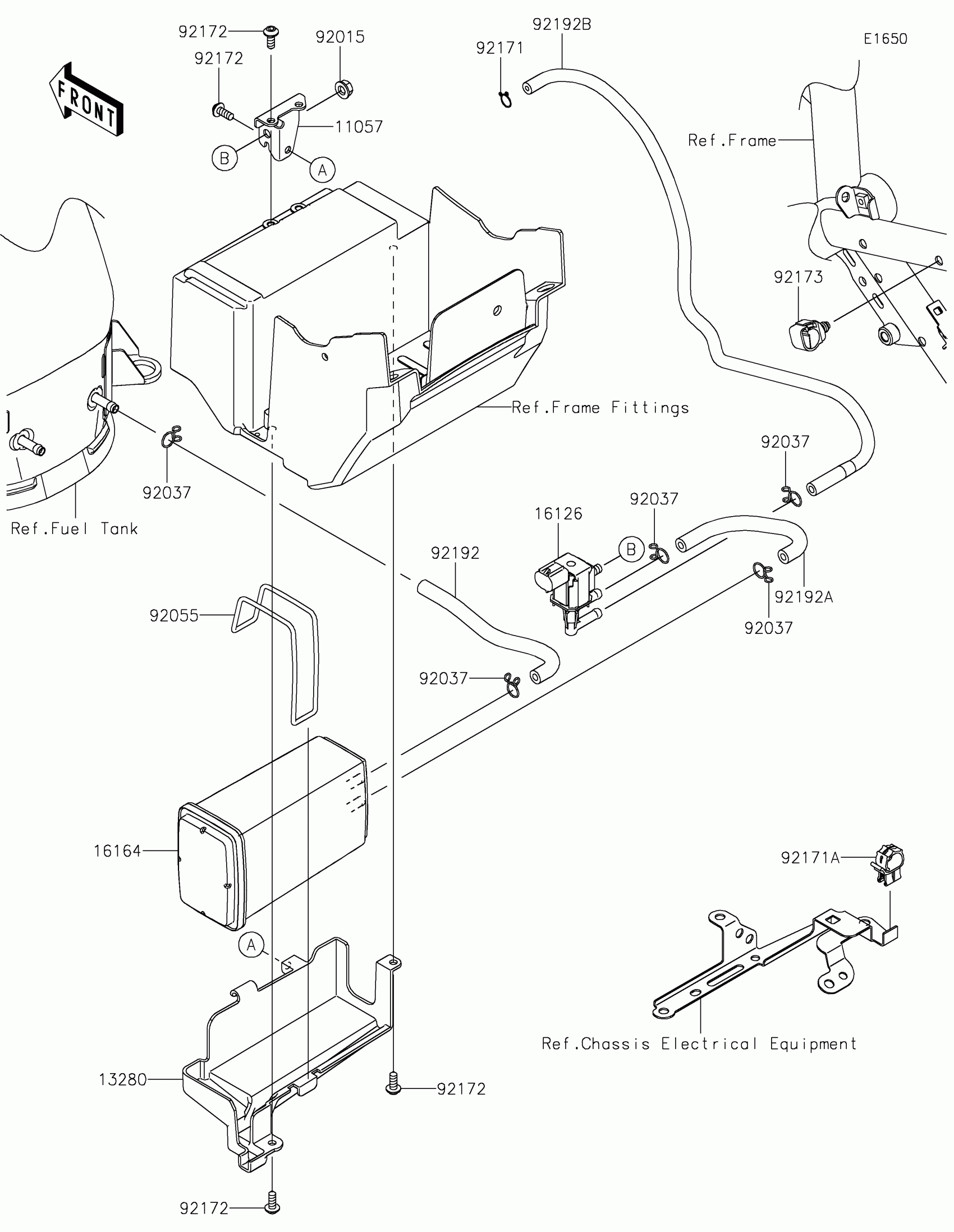

2022 Kawasaki Z900 SE Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,PCV

11057-0286

1
Out of stock

13280

HOLDER,CANISTER

13280-0880

1

$5.71

In stock

16126

VALVE,PCV

16126-0740

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92055

RING-O,104.4X3.1

92055-1020

1
Out of stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92171A

CLAMP,EDGE CLIP

92171-1722

1
Out of stock

92172

SCREW,SOCKET,5X14

92172-0823

1
Out of stock

92173

CLAMP,12MM DIA.

92173-0736

1
Out of stock

92192

TUBE,CANISTER-TANK

92192-1690

1
Out of stock

92192A

TUBE,PCV-CANISTER

92192-1691

1
Out of stock

92192B

TUBE,PCV-THROTTLE BODY

92192-1779

1
Out of stock
