2022 Kawasaki Z900 SE Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2022 Kawasaki Z900 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

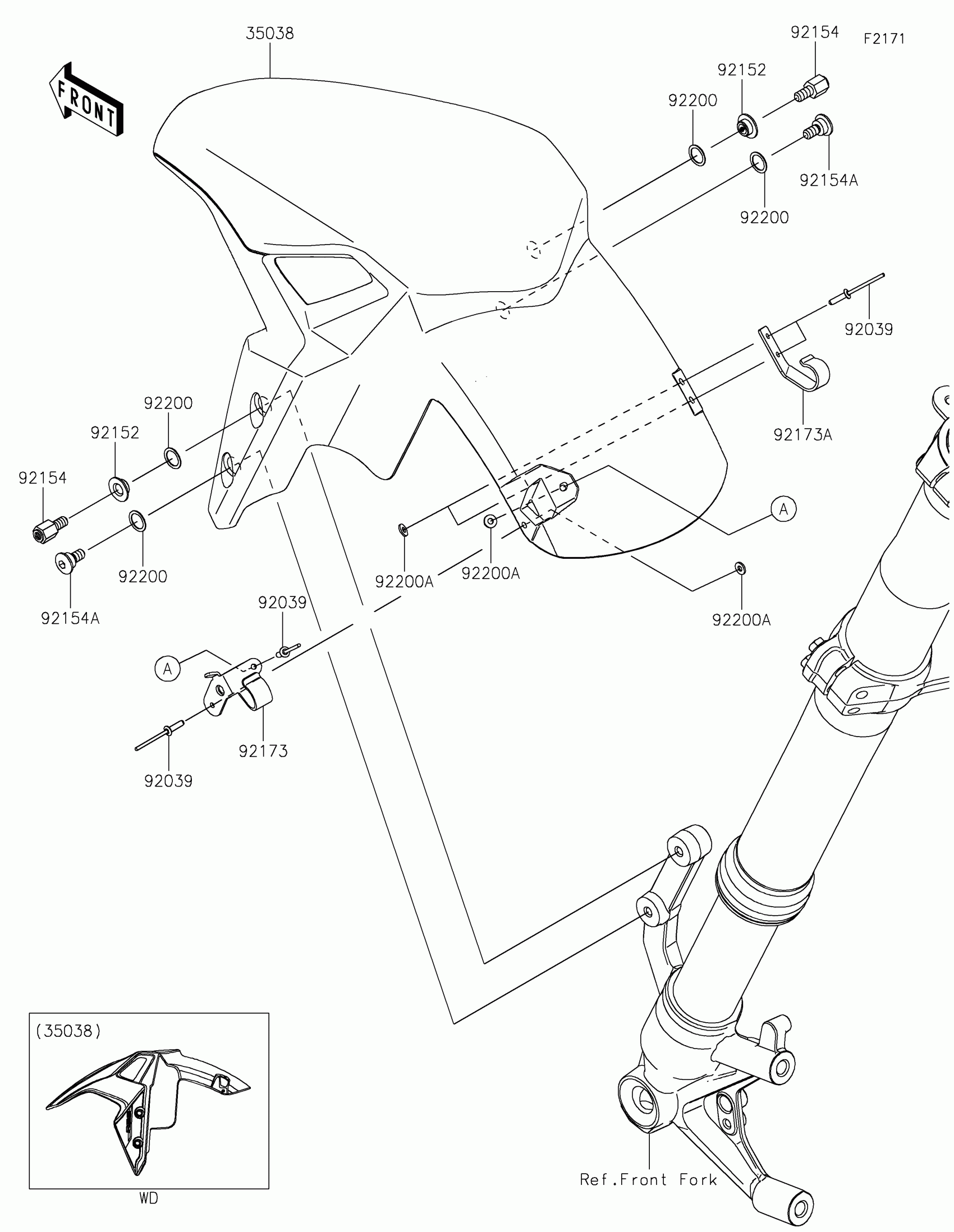

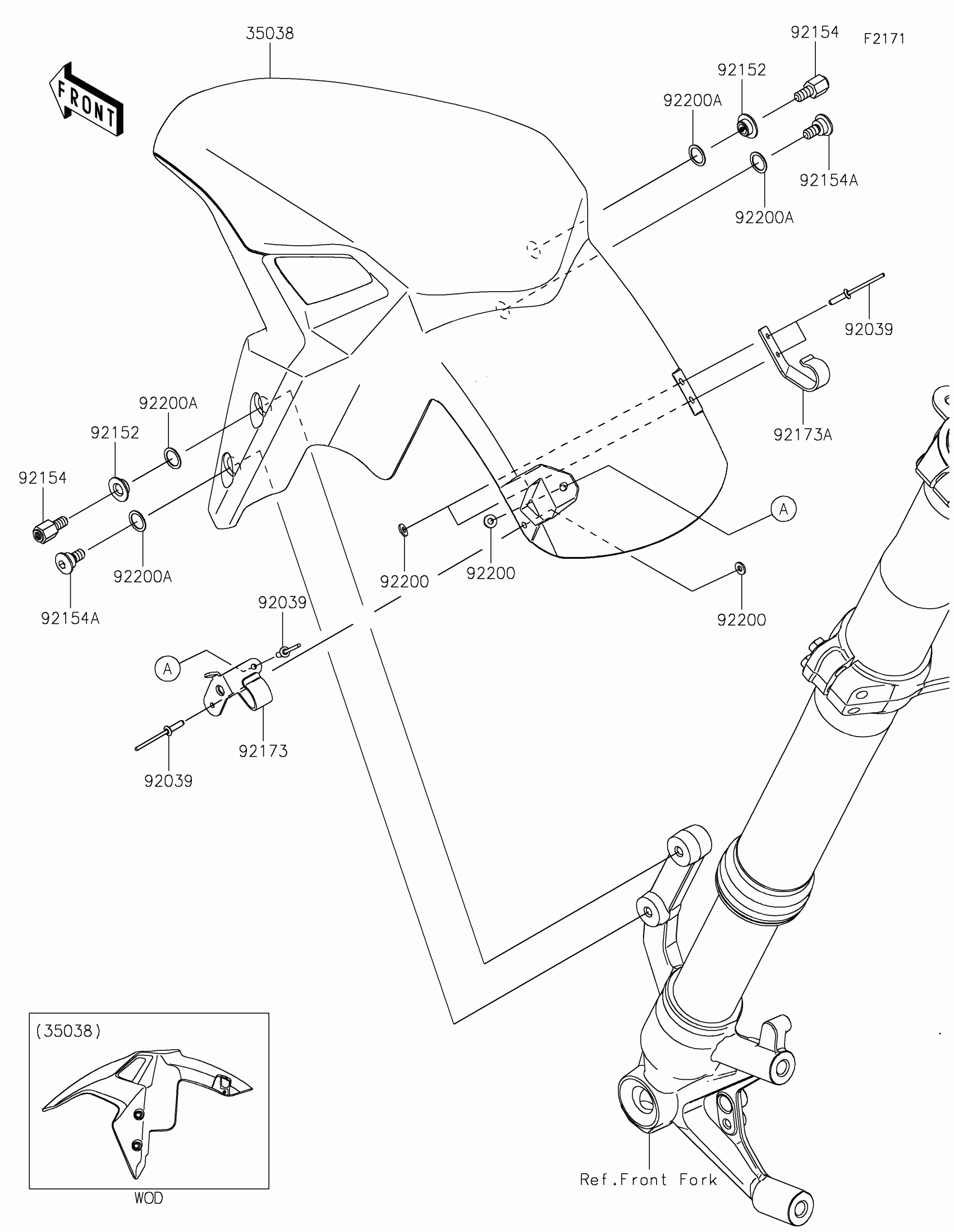

2022 Kawasaki Z900 SE Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35038

FENDER-FRONT,M.S.BLACK

35038-5090-660

1
Out of stock

92039

RIVET,3.2X9.5

92039-0752

1
Out of stock

92152

COLLAR,6.5X10X5.3

92152-1863

1
Out of stock

92154

BOLT,6MM

92154-0746

1
Out of stock

92154A

BOLT,SOCKET,6X15

92154-2660

1
Out of stock

92173

CLAMP,LH

92173-1600

1
Out of stock

92173A

CLAMP,RH

92173-1601

1
Out of stock

92200

WASHER,3.5X8X1

92200-1251

1
Out of stock

92200A

WASHER,10.4X14X0.5

92200-1880

1
Out of stock
