Transmission

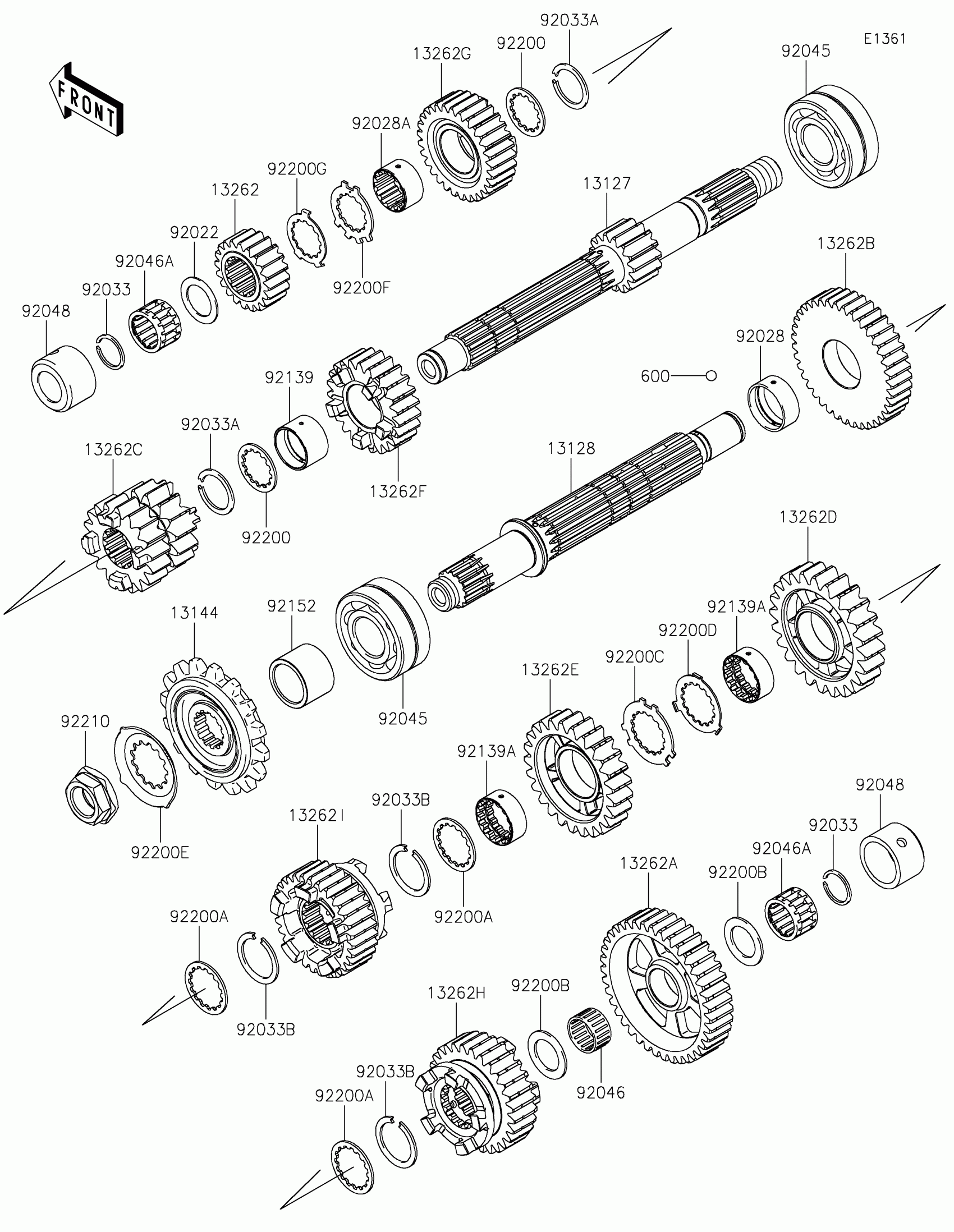

2025 Kawasaki Z900 Se ABS Transmission Diagram
Find the part on the Transmission diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
92046A
BEARING-NEEDLE,PK20X27X17X3
92046-1303
92048
RACE
92048-0016
92152
COLLAR,SPROCKET
92152-2263
92200
WASHER,25.2X31.0X1.5
92200-1239
92200A
WASHER,28.5X34.0X1.5
92200-1240
92200B
WASHER,20.5X31X1.5
92200-1375
92200C
WASHER,25.8X40.5X1.5
92200-1522
92200D
WASHER,25.2X37.0X1.0
92200-1523
92200E
WASHER
92200-1720
92200F
WASHER,22.6X34.2X1.5
92200-1941
92200G
WASHER,22X32X1
92200-1942
92210
NUT,20MM
92210-0850
