2025 Kawasaki Z900 Se ABS Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2025 Kawasaki Z900 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

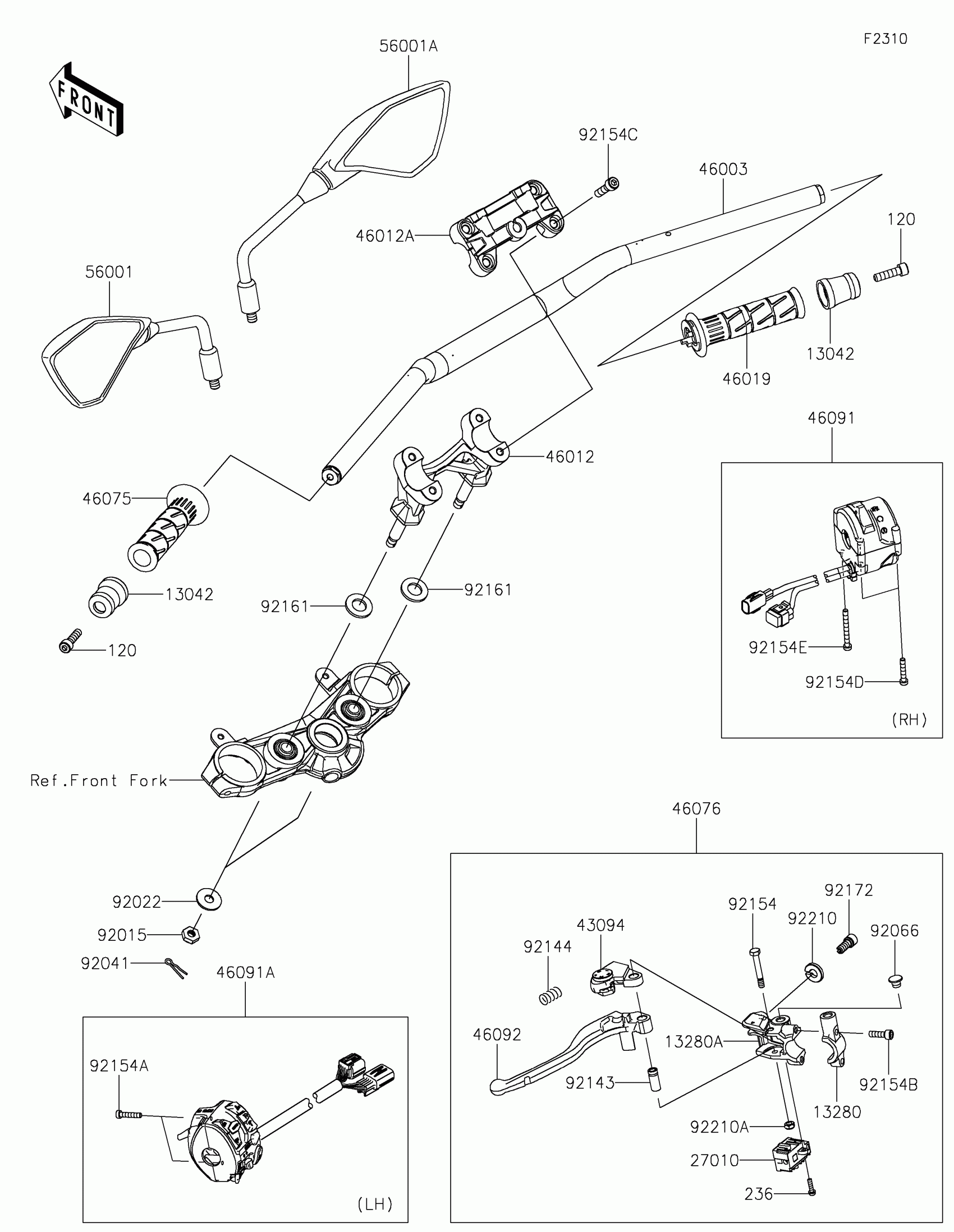

2025 Kawasaki Z900 Se ABS Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13042

WEIGHT,HANDLE

13042-5024

1

$31.92

In stock

13280

HOLDER,CLUTCH LEVER

13280-0772

1

$26.81

In stock

13280A

HOLDER

13280-0926

1

$52.39

In stock

27010

SWITCH,CLUTCH

27010-0925

1

$60.55

In stock

43094

ADJUSTER

43094-0008

1

$36.81

In stock

46003

HANDLE,FAT BAR

46003-0848

1

$359.20

In stock

46012

1

$173.12

In stock

46012A

1

$78.25

In stock

46019

GRIP-ASSY,THROTTLE

46019-0080

1

$38.91

In stock

46075

GRIP,HANDLE,LH

46075-0564

1

$18.54

In stock

46076

1

$94.76

In stock

46091

1

$241.41

In stock

46091A

1

$430.69

In stock

46092

LEVER-GRIP,CLUTCH

46092-0575

1

$18.28

In stock

56001

MIRROR-ASSY,LH

56001-0466

1

$77.36

In stock

56001A

MIRROR-ASSY,RH

56001-0467

1

$77.36

In stock

92015

NUT,LOCK,10MM

92015-1962

1

$4.83

In stock

92022

WASHER,10.2X28X2

92022-1088

1

$3.72

In stock

92041

COTTER,8MM

92041-1060

1

$3.15

In stock

92066

1

$3.69

In stock

92143

COLLAR

92143-1379

1

$7.55

In stock

92144

SPRING

92144-1467

1

$5.15

In stock

92154

BOLT

92154-2318

1

$6.28

In stock

92154A

BOLT,SOCKET,5X25

92154-2596

1

$3.51

In stock

92154B

BOLT,SOCKET,6X20

92154-2644

1
Out of stock

92154C

BOLT,SOCKET,8X30

92154-2683

1

$2.95

In stock

92154D

BOLT,5X30

92154-3921

1

$3.51

In stock

92154E

BOLT,5X50

92154-3922

1

$3.51

In stock

92161

DAMPER

92161-0037

1

$1.59

In stock

92172

SCREW

92172-1138

1

$5.76

In stock

92210

NUT

92210-1519

1
Out of stock

92210A

NUT,LOCK,6MM

92210-1544

1
Out of stock

120

BOLT-SOCKET,8X30

120CA0830

1

$2.29

In stock

236

SCREW-PAN-WSP-CROS

236AB0416

1

$9.90

In stock
