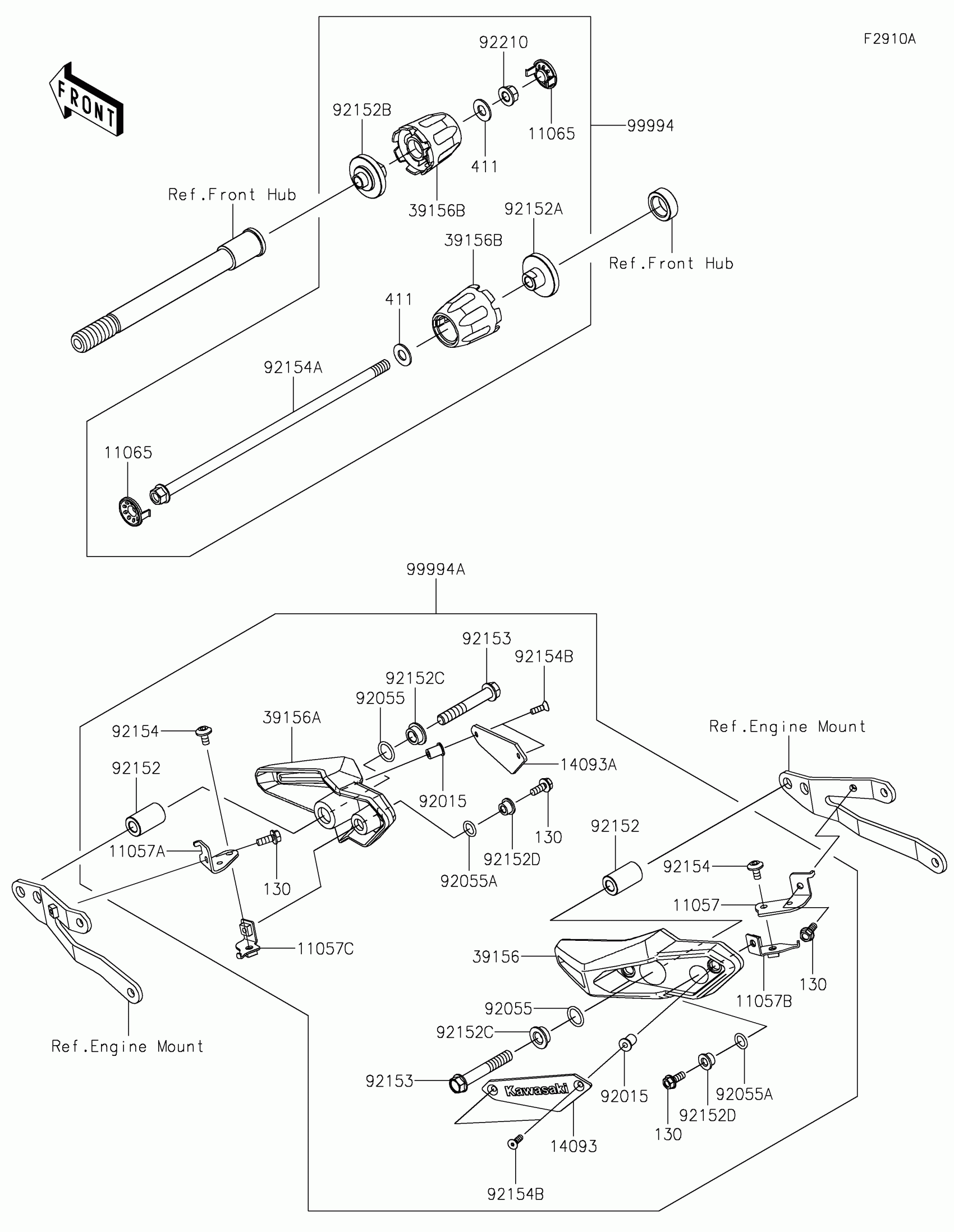

Kawasaki Z900 SE ABS Accessory(Slider) Diagram

#

Description
Price

11057

BRACKET,LH

11057-2712

$23.14

11057A

BRACKET,RH

11057-2713

$23.14

11057B

BRACKET,LH,FR

11057-2714

$23.14

11057C

BRACKET,RH,FR

11057-2715

$23.14

11065

CAP,B.SILVER

11065-1313-54N

$7.41

14093

COVER,LH

14093-0516

$66.36

14093A

COVER,RH

14093-0517

$66.36

39156

PAD,LH

39156-2123

$120.96

39156A

PAD,RH

39156-2124

$120.96

39156B

PAD,AXLE SLIDER

39156-2212

$60.42

92015

NUT,WELL,5MM

92015-1757

$5.58

92055

RING-O,15.8X2.4

92055-0884

$1.47

92055A

RING-O,11X2.4

92055-0885

$1.47

92152

COLLAR,10.5X20X34

92152-2268

$8.75

92152A

COLLAR,LH

92152-2272

$79.30

92152B

COLLAR,RH

92152-2273

$79.30

92152C

COLLAR,10.5X22X8.1

92152-2334

$5.56

92152D

COLLAR,6.5X16X8.1

92152-2335

$4.71

92153

BOLT,FLANGED,10X65

92153-1931

$5.91

92154

BOLT,SOCKET,6X12

92154-1788

$2.05

92154A

BOLT,AXLE,10X300

92154-2250

$38.03

92154B

BOLT,SOCKET,5X16

92154-2669

$0.85

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

99994

KIT-ACCESSORY,FR AXLE SLIDER

99994-1275

$142.16

99994A

FRAME SLIDER

99994-1350

$300.08

130

BOLT-FLANGED,6X16

130CB0616

$2.10

411

WASHER-PLAIN,10MM

411AA1000

$0.81
