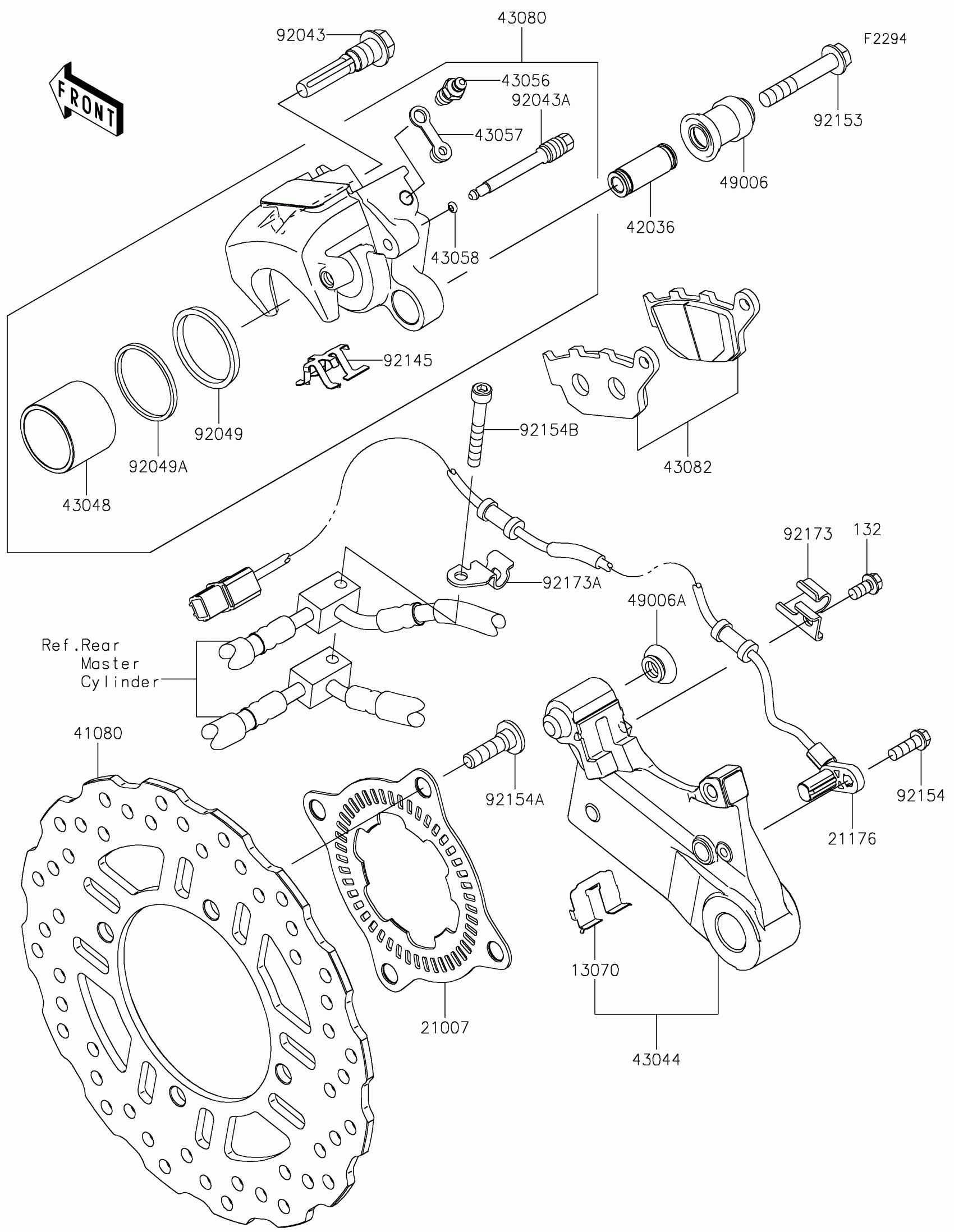

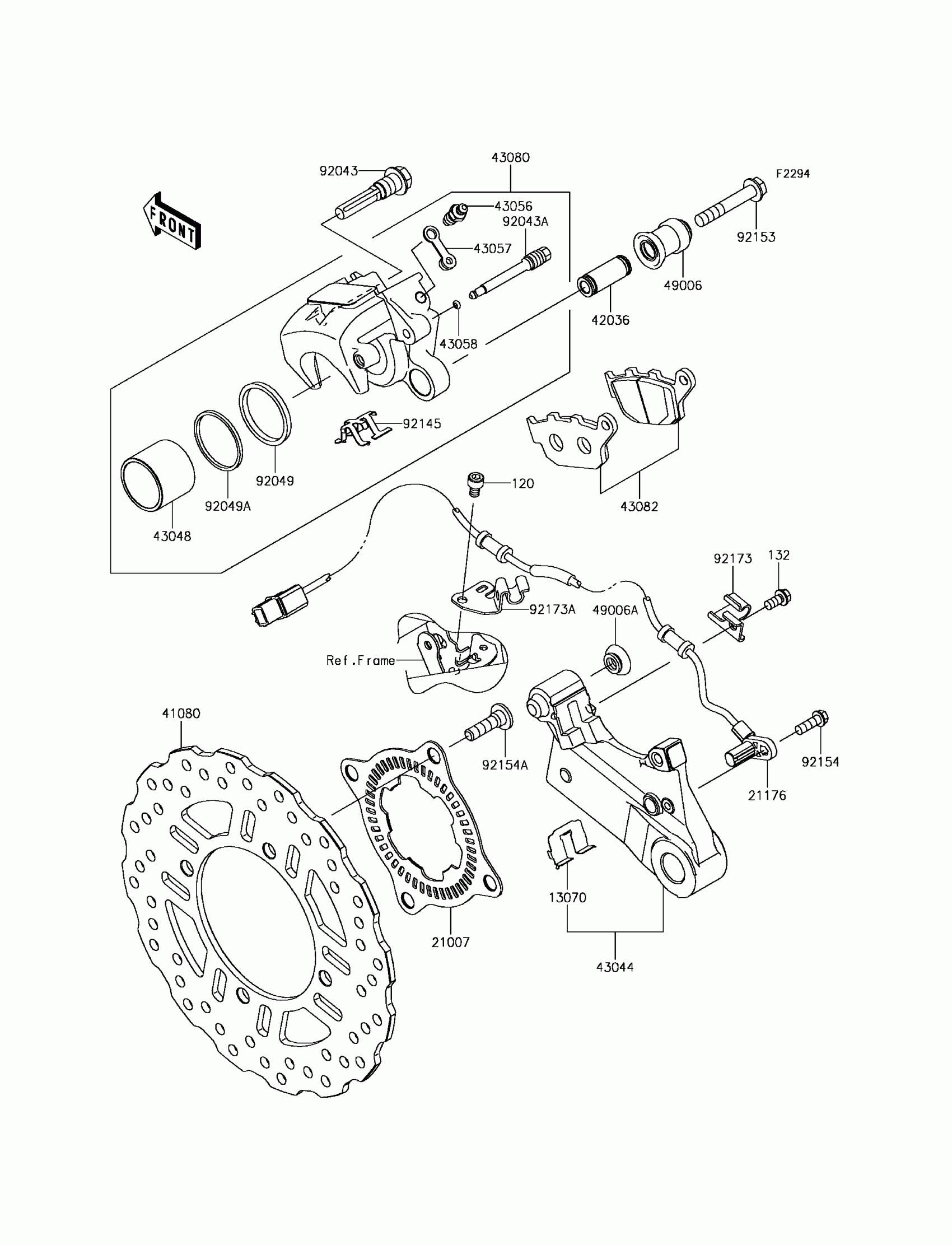

Kawasaki Z900 Rear Brake Diagram

#

Description
Price

120

BOLT-SOCKET,6X10

120CA0610

$1.27

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

13070

GUIDE,BRACKET RETAINER

13070-0795

Unavailable

21007

ROTOR,SENSOR,RR

21007-0645

$91.54

21176

SENSOR,SPEED,RR

21176-0834

$132.06

41080

DISC,RR

41080-0668

$328.77

42036

SLEEVE

42036-0050

$7.61

43044

HOLDER-COMP-CALIPER

43044-0082

$167.60

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.73

43058

RING,STOPPER

43058-1100

$11.22

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

$318.75

43082

PAD-ASSY-BRAKE

43082-0151

$61.17

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.14

92043

PIN

92043-0137

$10.34

92043A

PIN,HANGER

92043-0820

$7.24

92049

SEAL-OIL

92049-1449

$3.81

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$5.87

92153

BOLT,FLANGED

92153-1826

$7.84

92154

BOLT,FLANGED,6X18

92154-0784

$2.19

92154A

BOLT,SOCKET,8X30

92154-0844

$3.13

92173

CLAMP,CALIPER HOLDER

92173-1637

$3.15

92173A

CLAMP,FRM

92173-1646

$3.17
