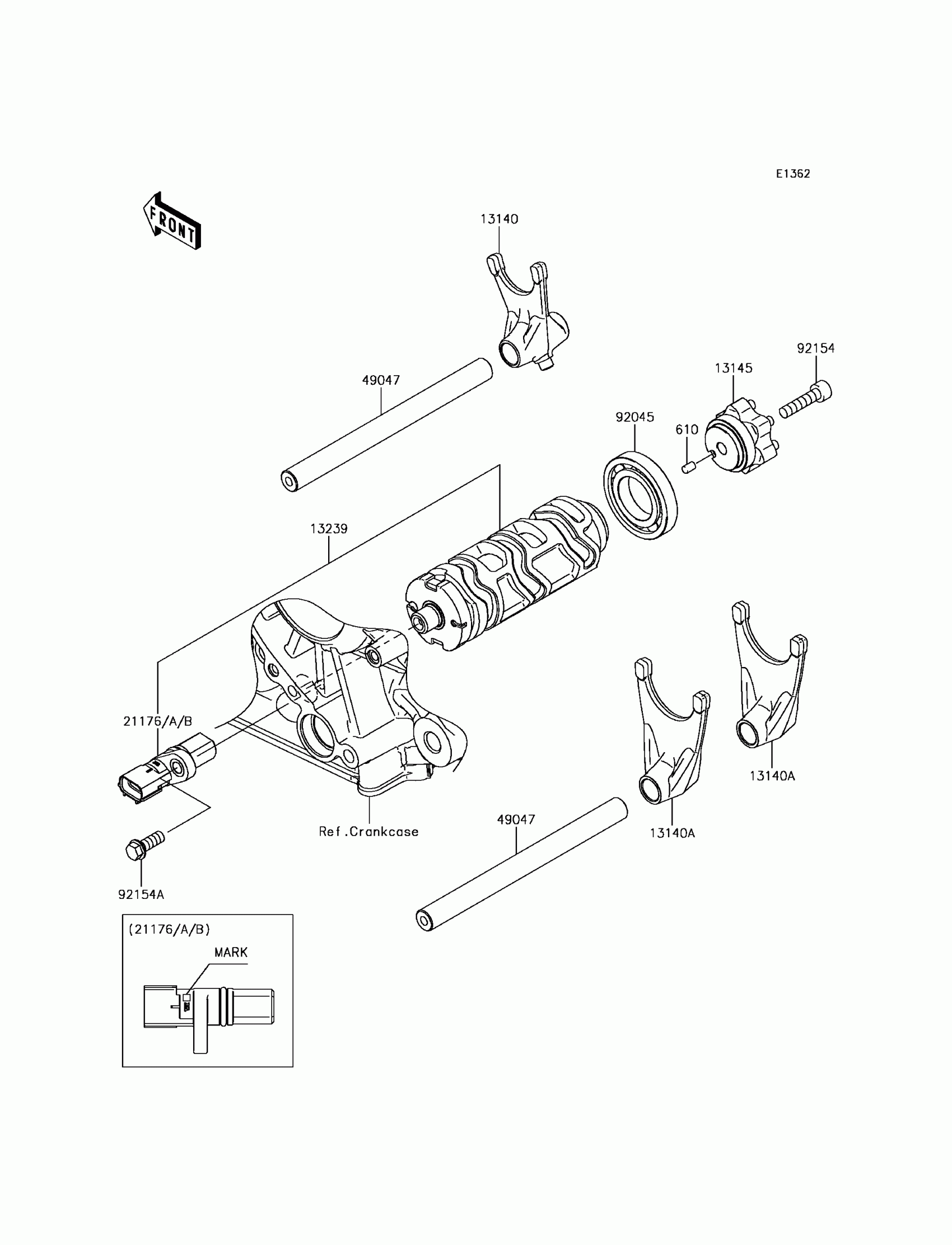

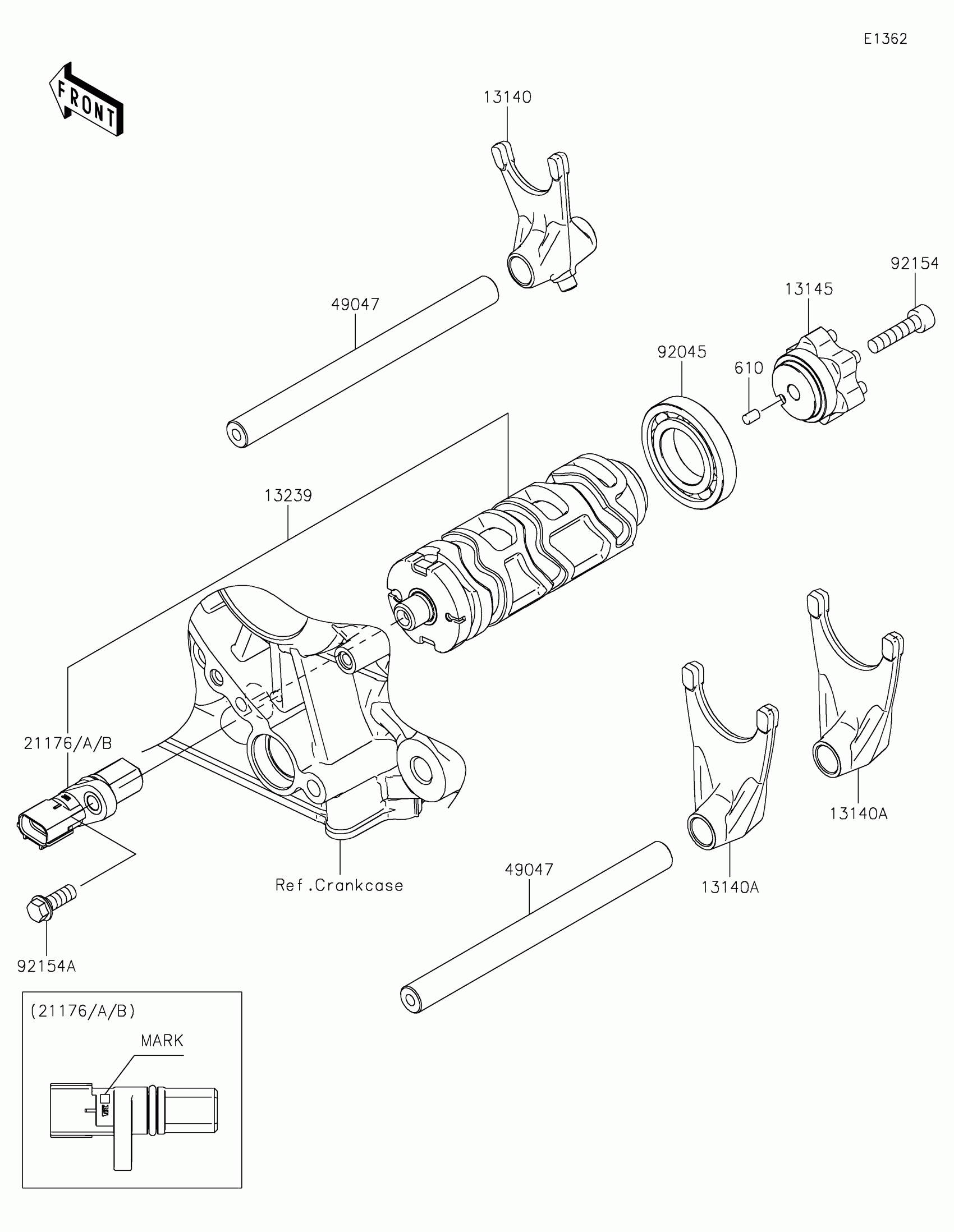

Kawasaki Z900 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X6

610A0406

$3.29

13140

FORK-SHIFT

13140-0061

$106.41

13140A

FORK-SHIFT

13140-0062

$106.41

13145

CAM-CHANGE DRUM

13145-0568

$59.99

13239

DRUM-ASSY-CHANGE

13239-0581

$375.59

21176

SENSOR,GEAR POSITION,M MARK

21176-0825

$154.98

21176A

SENSOR,GEAR POSITION,H MARK

21176-0845

$154.98

21176B

SENSOR,GEAR POSITION,L MARK

21176-0846

$154.98

49047

ROD-SHIFT

49047-0023

$29.73

92045

BEARING-BALL,16005

92045-1045

$28.80

92154

BOLT,SOCKET,6X25

92154-0477

$1.43

92154A

BOLT,FLANGED,6X16

92154-2096

$2.29
