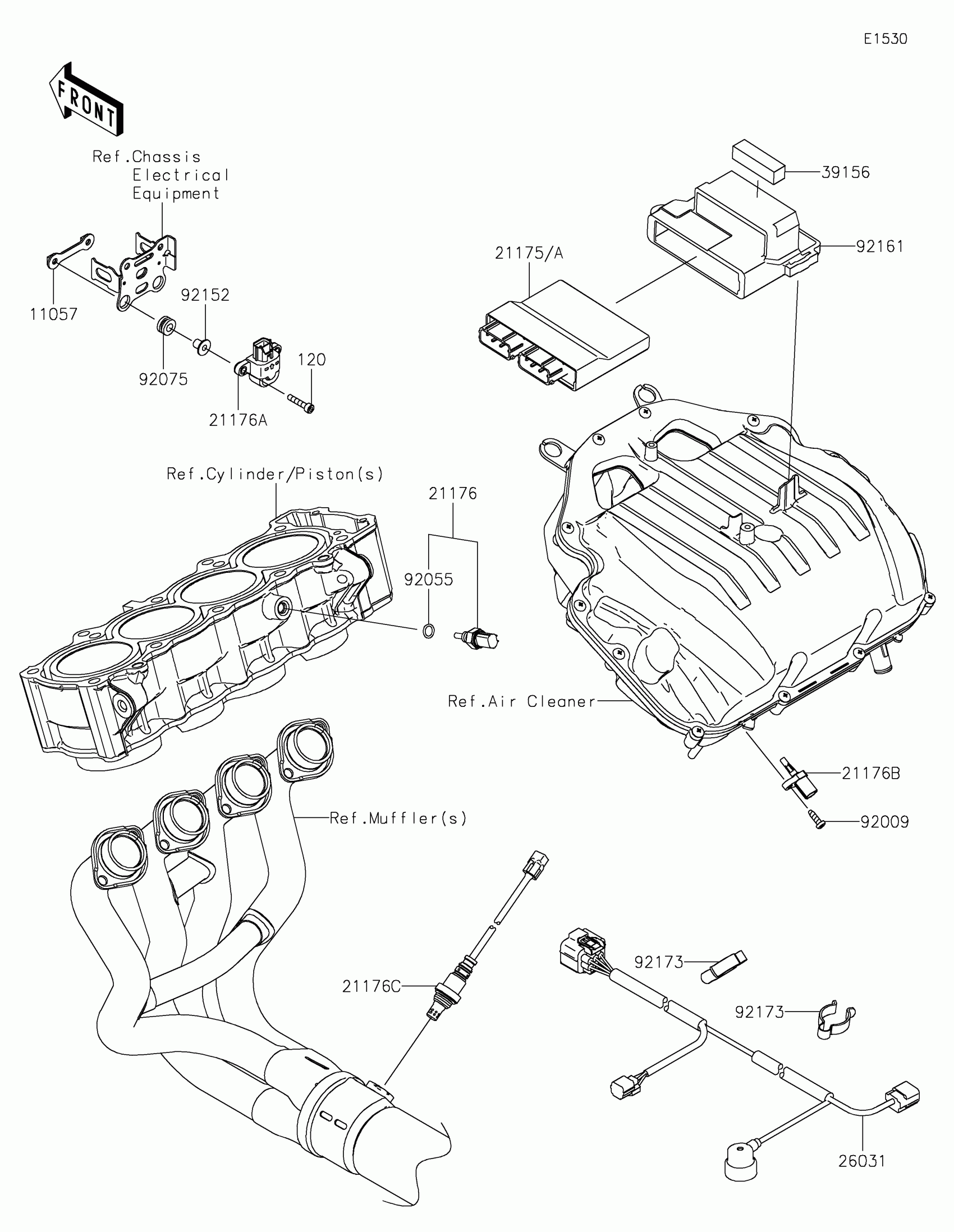

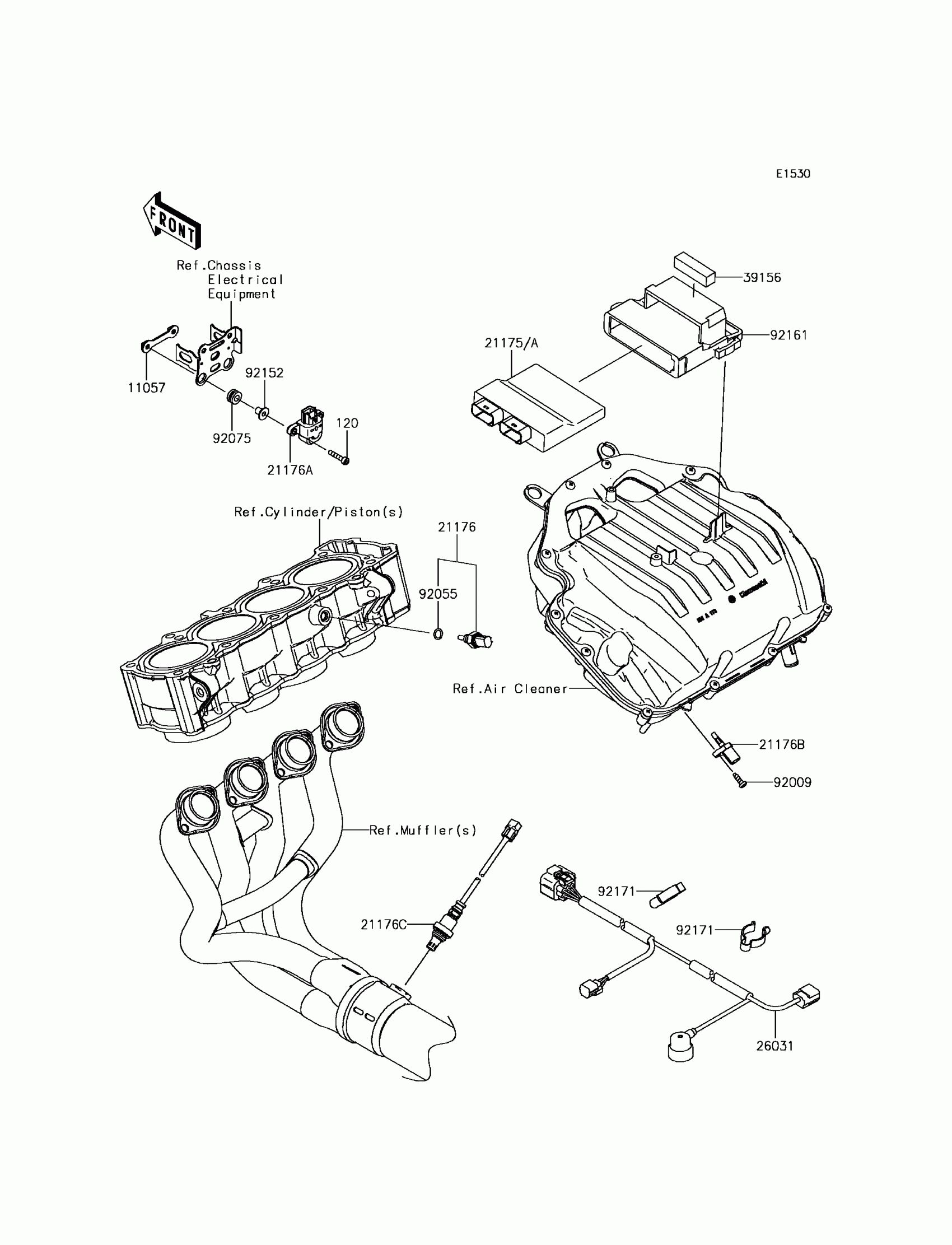

Kawasaki Z900 Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET,5X25

120CA0525

$3.86

11057

BRACKET,VEHICLE DOWN

11057-0287

$2.20

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

21176C

SENSOR,OXYGEN

21176-0835

$239.98

26031

HARNESS,SUB

26031-2159

$62.27

39156

PAD,15X55X15

39156-2129

$1.71

92009

SCREW,TAPPING,5X16

92009-1984

$1.82

92055

RING-O,9.5X1.9

92055-0016

$6.77

92075

DAMPER

92075-1912

$5.07

92152

COLLAR,5.6X8X11.2

92152-1562

$1.89

92161

DAMPER,ECU

92161-1870

$12.83

92171

CLAMP,CABLE

92171-1283

$10.51

21175

CONTROL UNIT-ELECTRONIC

21175-1226

$1,278.93

21175A

CONTROL UNIT-ELECTRONIC

21175-1238

$1,278.93
