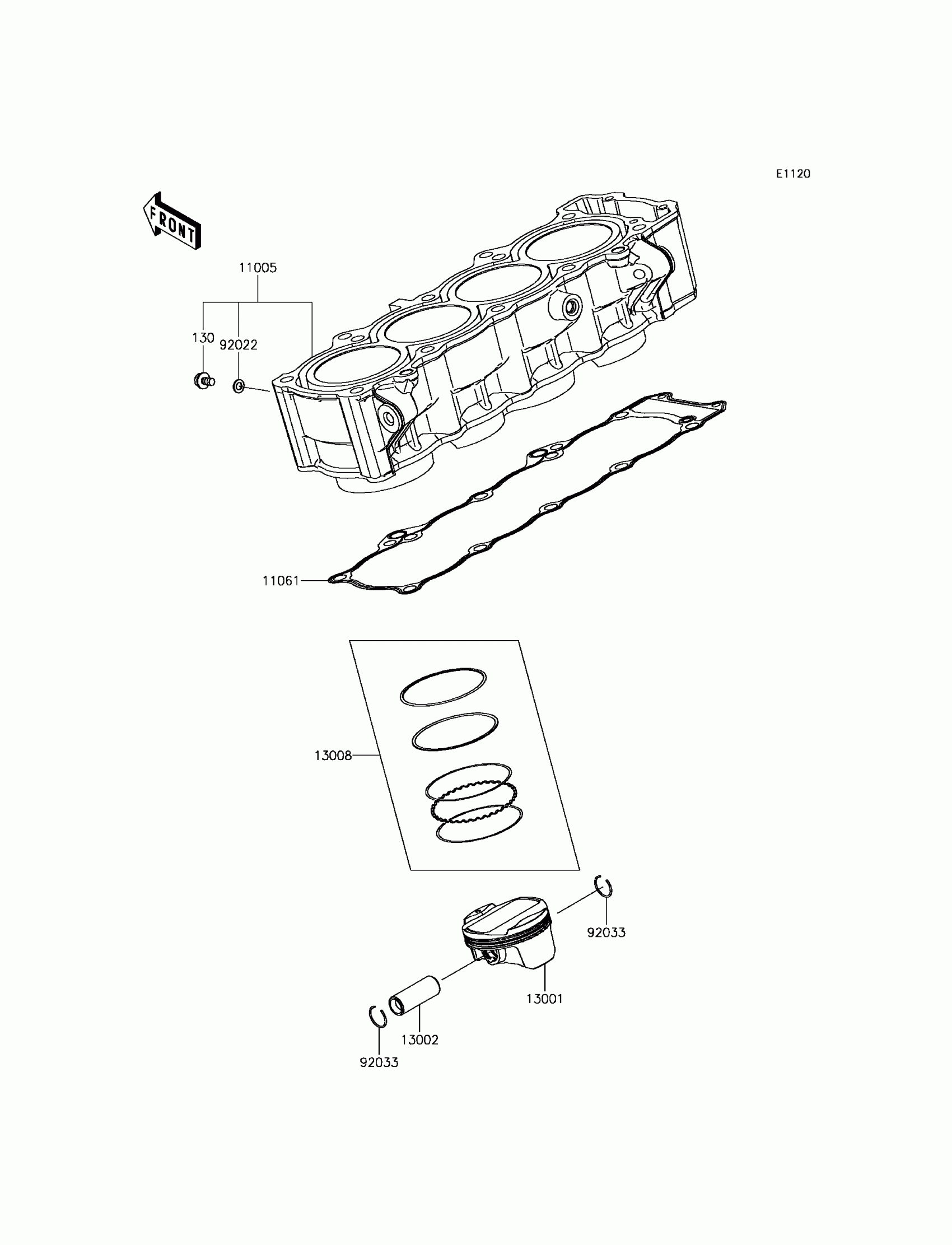

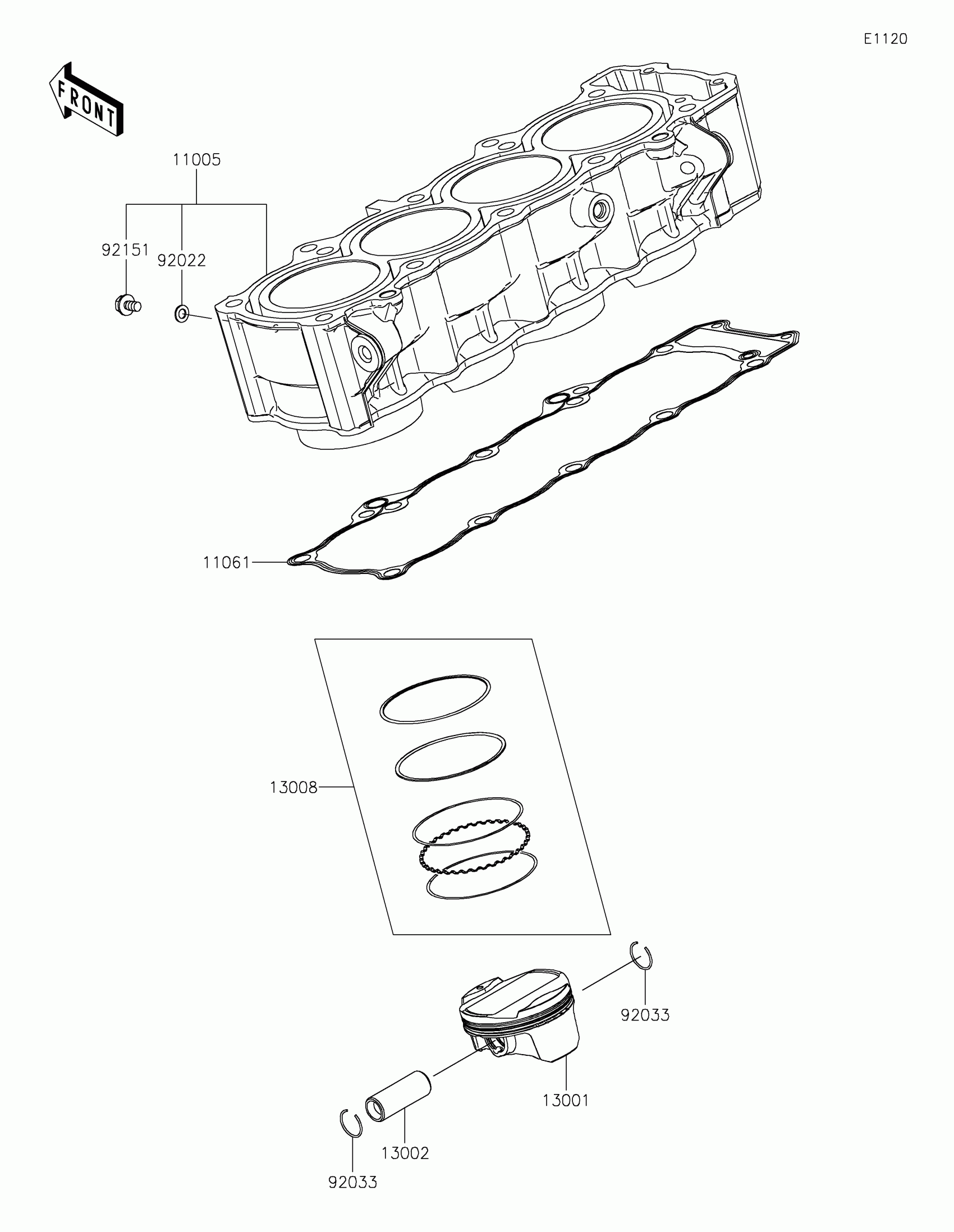

Kawasaki Z900 Cylinder/Piston(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130BD0610

$2.63

11005

CYLINDER-ENGINE

11005-0672

$1,673.07

11061

GASKET,CYLINDER BASE

11061-0402

$35.46

13001

PISTON-ENGINE

13001-0788

$106.84

13002

PIN-PISTON

13002-0004

$26.66

13008

RING-SET-PISTON

13008-0571

$66.61

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP

92033-1054

$1.76
