2017 Kawasaki Z900 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2017 Kawasaki Z900, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

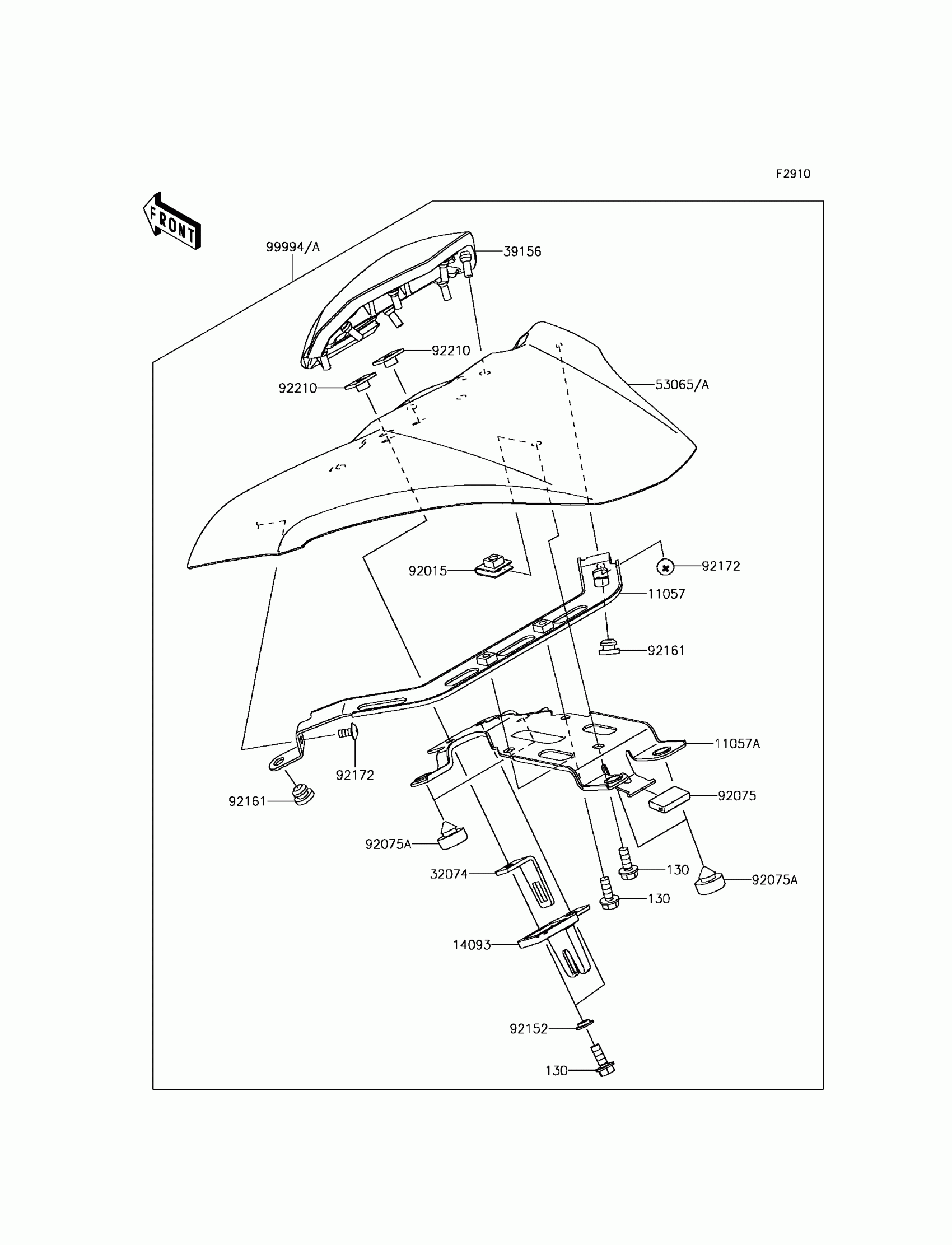

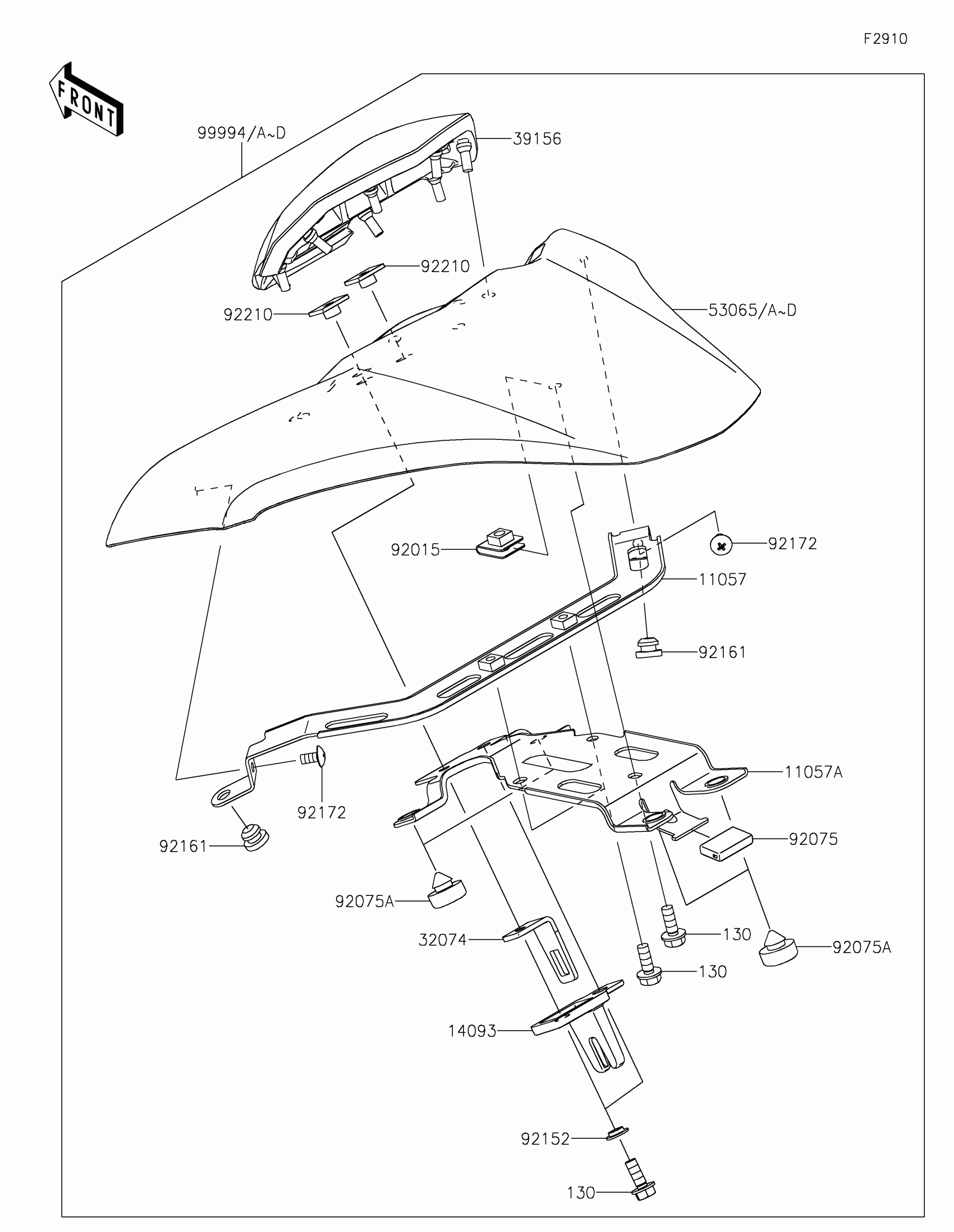

2017 Kawasaki Z900 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130BB0616

1

$1.73

In stock

11057

BRACKET

11057-0269

1
Out of stock

11057A

BRACKET,MOUNT

11057-0270

1
Out of stock

14093

COVER

14093-0515

1
Out of stock

32074

BRACKET-LOCK

32074-0017

1
Out of stock

39156

PAD

39156-2122

1

$109.28

In stock

53065

COVER SEAT,P.M.GRAY

53065-0040-36P

1

$275.17

In stock

53065A

COVER SEAT,M.S.BLACK

53065-0040-660

1

$259.04

In stock

92015

NUT,CLAMP,6MM

92015-1531

1
Out of stock

92075

DAMPER

92075-1446

1
Out of stock

92075A

DAMPER,10X20X8

92075-1927

1
Out of stock

92152

COLLAR

92152-0250

1
Out of stock

92161

DAMPER

92161-1084

1
Out of stock

92172

SCREW,5X10

92172-0864

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock

99994

KIT,SINGLE SEAT COVER,P.M.GRAY

99994-0835-36P

1
Out of stock

99994A

PILLION SEAT COVER,M.S.BLK

99994-0835-660

1
Out of stock
