2022 Kawasaki Z900 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2022 Kawasaki Z900, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

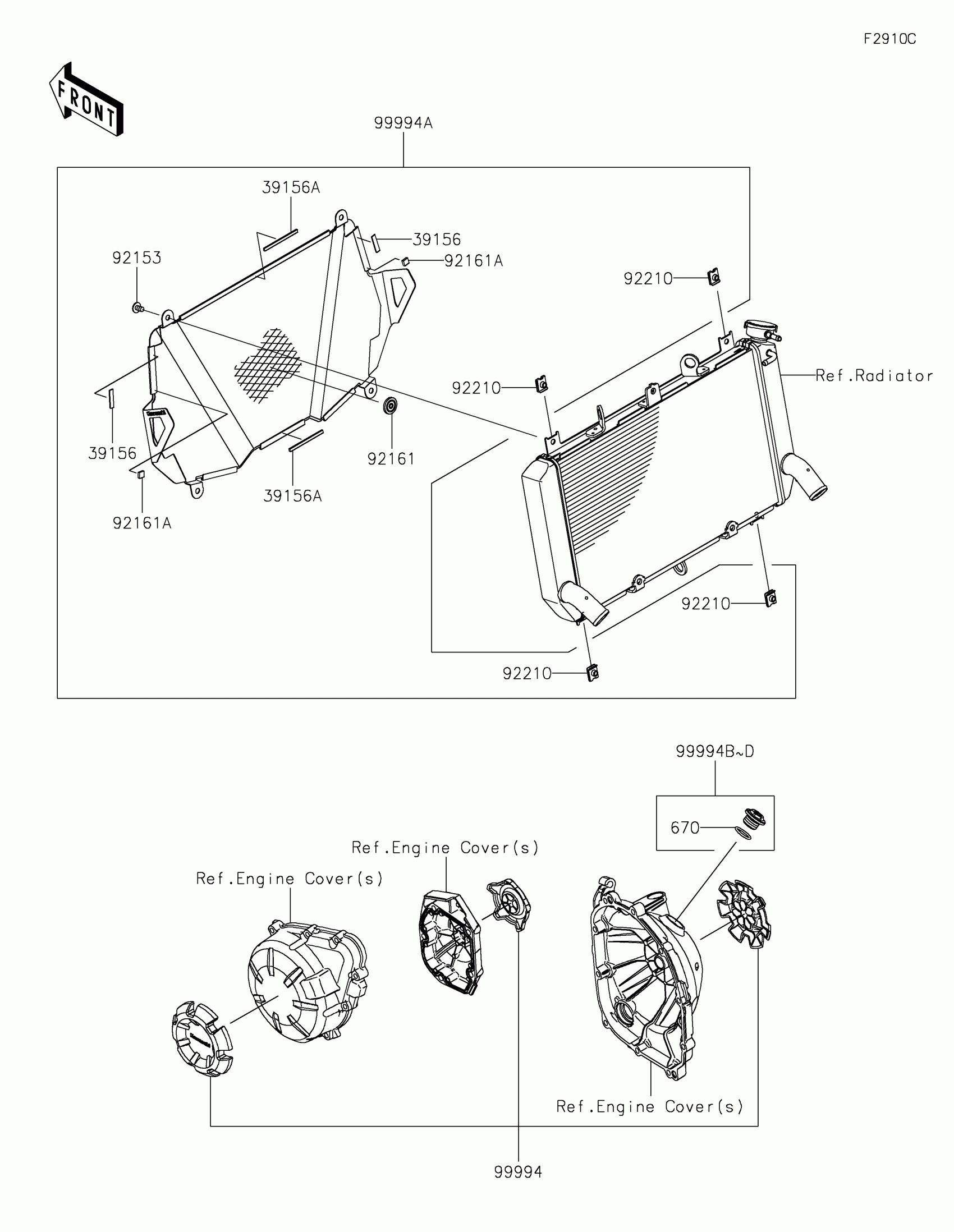

2022 Kawasaki Z900 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39156

PAD,6X25X1

39156-2167

1

$1.66

In stock

39156A

PAD,4X60X2

39156-2189

1

$2.64

In stock

92153

BOLT,SOCKET,6X10

92153-1527

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92161A

DAMPER

92161-1976

1

$0.88

In stock

92210

NUT

92210-1518

1
Out of stock

99994

KIT-ACCESSORY,ENG. COVER RING

99994-0868

1
Out of stock

99994A

KIT-ACCESSORY,SE RAD. SCREEN

99994-0871

1
Out of stock

99994B

KIT-ACC,OIL FILLER CAP,WHITE

99994-1018

1
Out of stock

99994C

KIT-ACC,OIL FILLER CAP,BLACK

99994-1229

1
Out of stock

99994D

KIT-ACC,OIL FILLER CAP,GOLD

99994-1245

1
Out of stock

670

O RING,20MM

670B2020

1
Out of stock
