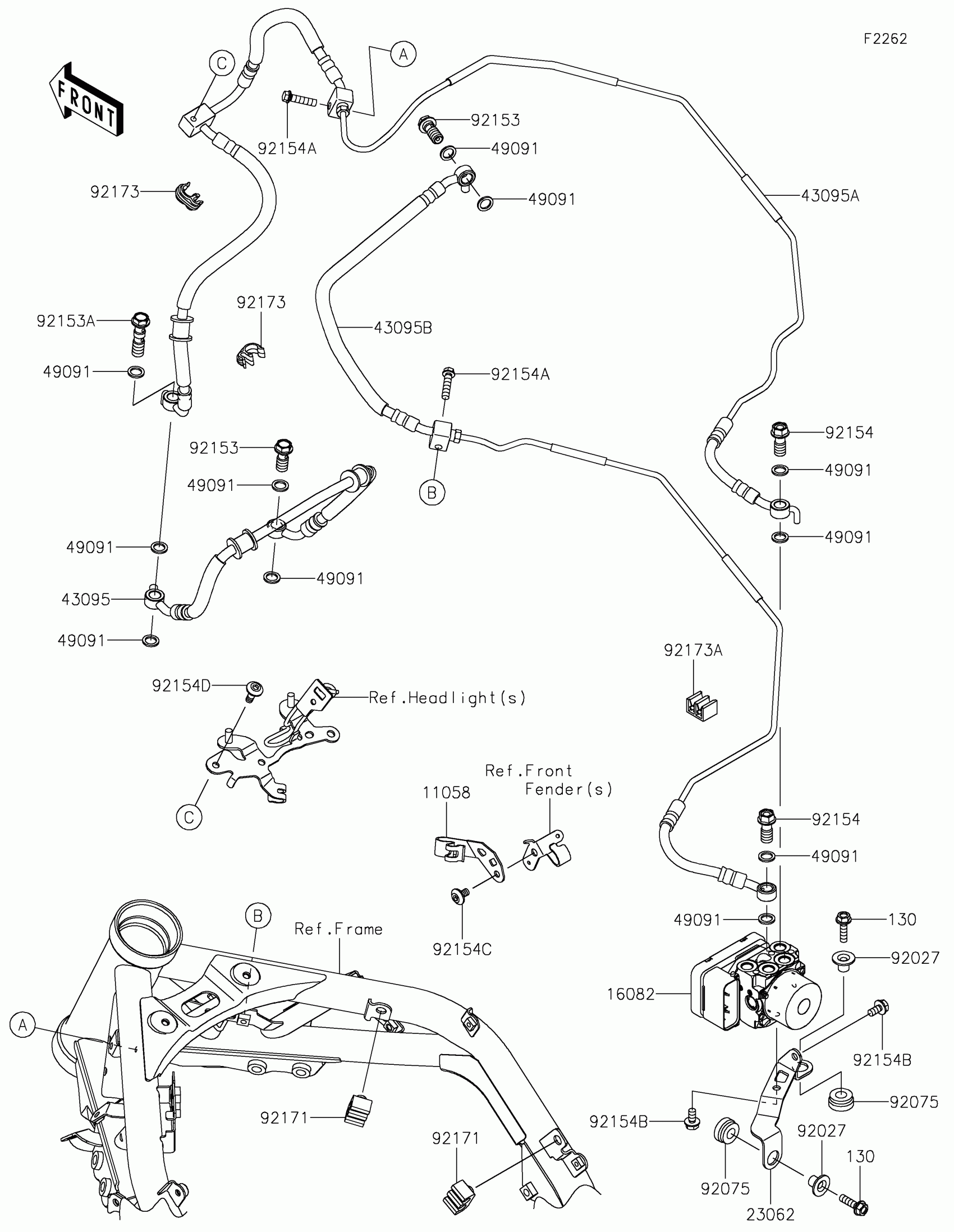

Find the part on the Brake Piping diagram for your 2017 Kawasaki Z900 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Kawasaki Z900 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

411

WASHER-PLAIN,6MM

411AA0600

1

$2.39

In stock

11057

BRACKET

11057-0256

1

$7.36

In stock

16082

PUMP-ASSY-OIL,ABS

16082-0769

1

$1,671.67

In stock

43095

HOSE-BRAKE,FR,444MM

43095-0970

1

$160.24

In stock

43095A

1

$310.07

In stock

43095B

1

$348.79

In stock

49091

1

$1.81

In stock

92027

1

$4.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,OIL,L=37

92153-0628

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-0774

1

$1.44

In stock

92154A

BOLT,FLANGED,6X12

92154-1050

1

$1.68

In stock

92154B

BOLT,BANJO,10X22

92154-1138

1

$5.89

In stock

92154C

BOLT,FLANGED,6X25

92154-2154

1

$2.44

In stock

92171

CLAMP

92171-0818

1

$3.93

In stock

92173

CLAMP,HOLDER CLIP

92173-0868

1

$2.44

In stock

92173A

1

$1.27

In stock

92173B

CLAMP,FR FENDER

92173-1634

1

$4.08

In stock

92173C

CLAMP,PIPE TRIPLE

92173-1705

1

$2.61

In stock
