2016 Kawasaki Z800 ABS Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2016 Kawasaki Z800 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

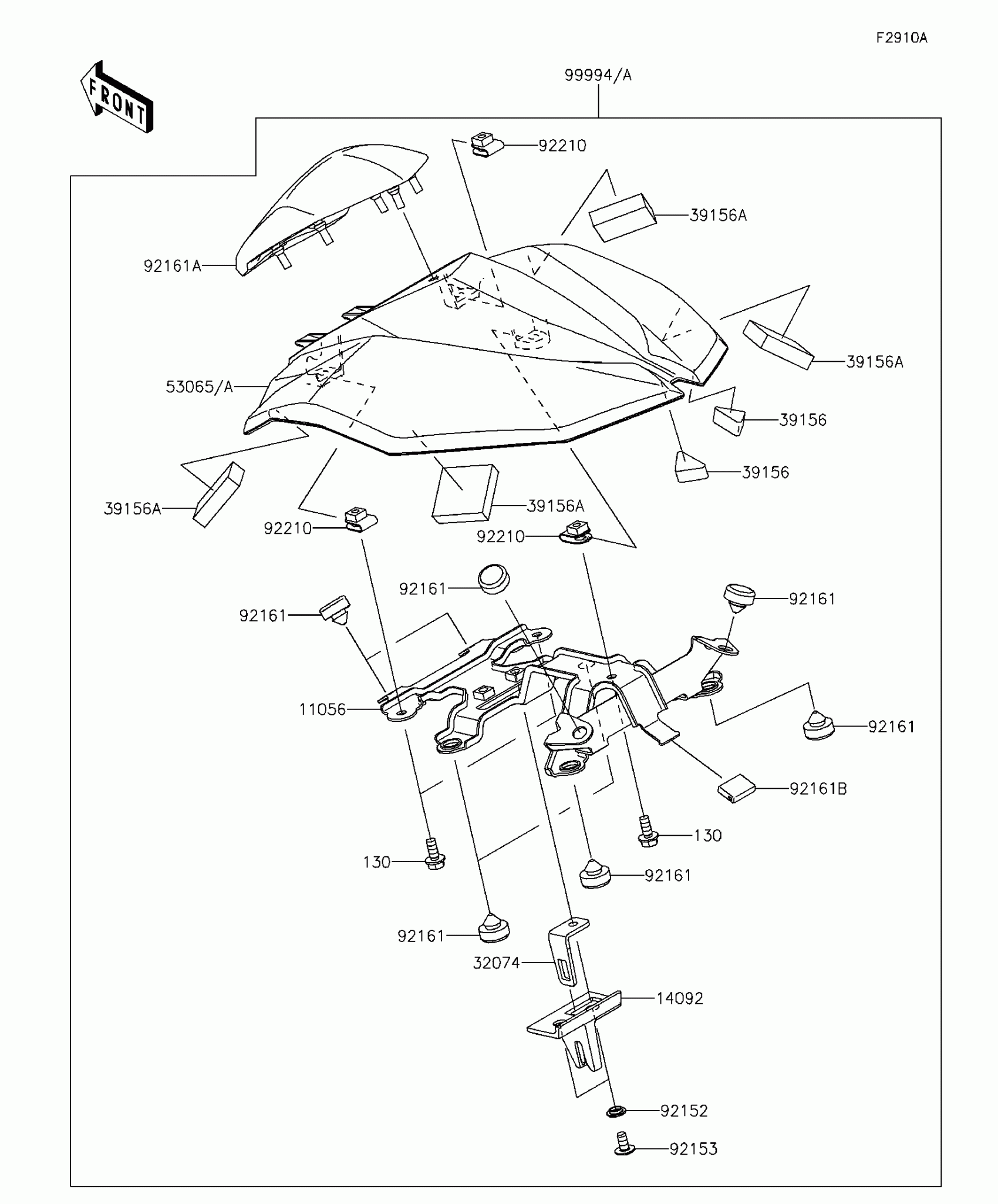

2016 Kawasaki Z800 ABS Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-2690

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

14092

COVER

14092-0248

1
Out of stock

32074

BRACKET-LOCK

32074-0017

1
Out of stock

39156

PAD

39156-0099

1
Out of stock

39156A

PAD,38X38X10

39156-0894

1
Out of stock

53065

COVER SEAT,M.S.BLACK

53065-0023-660

1
Out of stock

53065A

COVER SEAT,C.P.BLUE

53065-0023-723

1
Out of stock

92152

COLLAR

92152-0250

1
Out of stock

92153

BOLT,SOCKET,6X12

92153-1617

1
Out of stock

92161

DAMPER,10X20X8

92161-0855

1
Out of stock

92161A

DAMPER,CUSHION

92161-1460

1
Out of stock

92161B

DAMPER,15X21X5.5

92161-1472

1
Out of stock

92210

NUT,6MM

92210-0277

1
Out of stock

99994

KIT,SINGLE SEAT,M.S.BLACK

99994-0410-660

1
Out of stock

99994A

KIT,SINGLE SEAT,C.P.BLUE

99994-0410-723

1
Out of stock
