Description

Price

11057

BRACKET,WATER PUMP

11057-7939

$12.05

11057A

BRACKET

11057-7997

$13.46

11061

GASKET,DRAIN

11061-0875

$4.24

13216

GEAR-COMP,WATER PUMP,62T

13216-0894

$239.68

13227

HOUSING,WATER PUMP

13227-0713

$111.94

16142

COVER-PUMP

16142-0766

$82.48

39156

PAD

39156-0285

$1.20

49044

PUMP-WATER

49044-0018

$307.21

49063

SEAL-MECHANICAL

49063-1055

$16.33

59256

IMPELLER

59256-0554

$19.31

92045

BEARING-BALL

92045-0067

Unavailable

92049

SEAL-OIL,12X22X5

92049-0783

$5.91

92055

RING-O

92055-0889

$10.39

92055A

RING-O,31.20X2.4

92055-0896

$1.27

92055B

RING-O,23.3X1.9

92055-1555

$1.96

92072

BAND,TOOL,L=82

92072-1294

$14.14

92154

BOLT,FLANGED,6X10

92154-2344

$0.88

92154A

BOLT,FLANGED,6X45

92154-2789

$1.47

92154B

BOLT,FLANGED,6X14

92154-2838

$0.88

92173

CLAMP

92173-1828

$2.41

130

BOLT-FLANGED,6X12

130BB0612

$1.68

610

ROLLER,4X8

610A0408

$3.29

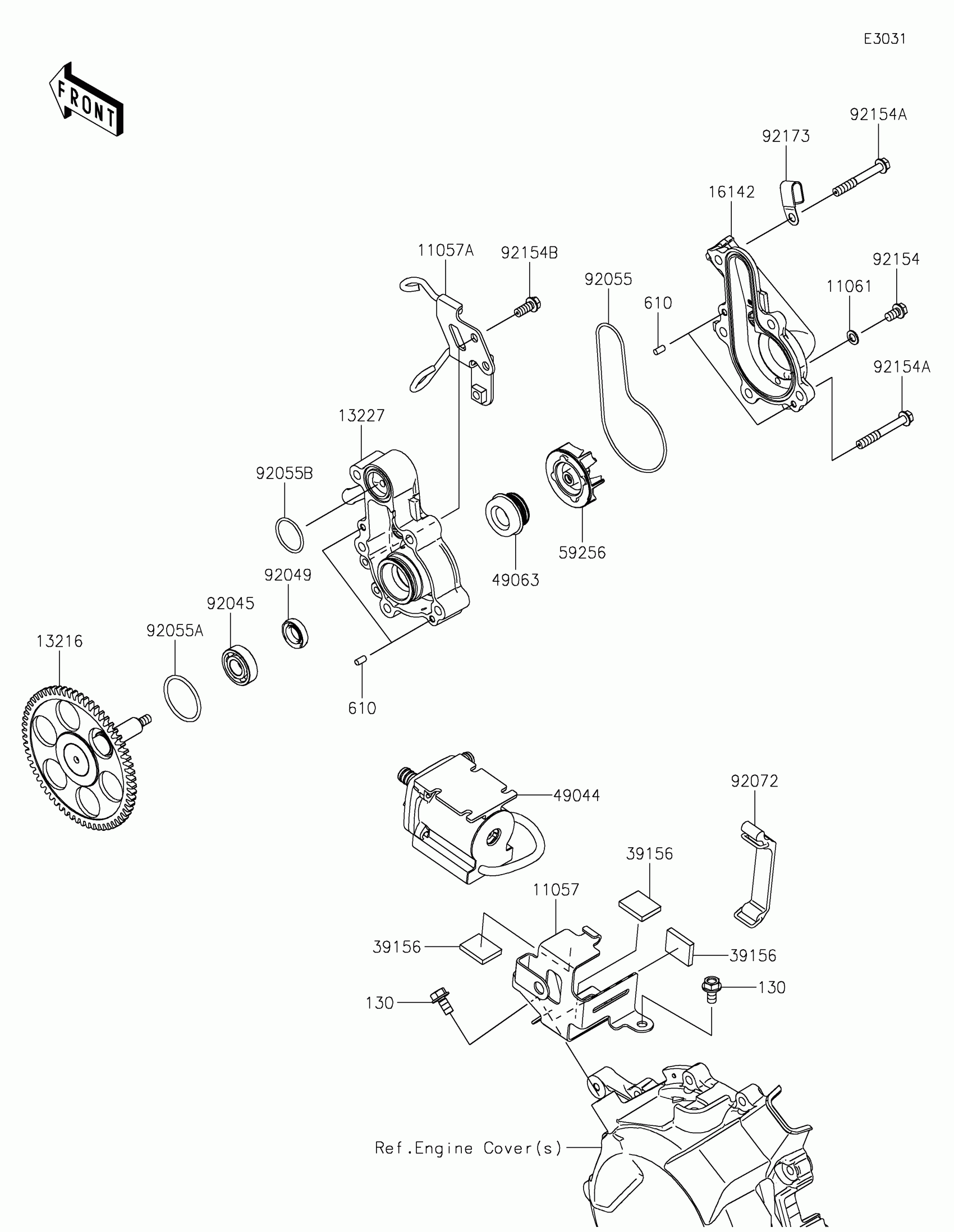

Kawasaki Z7 Hybrid Water Pump Diagram
