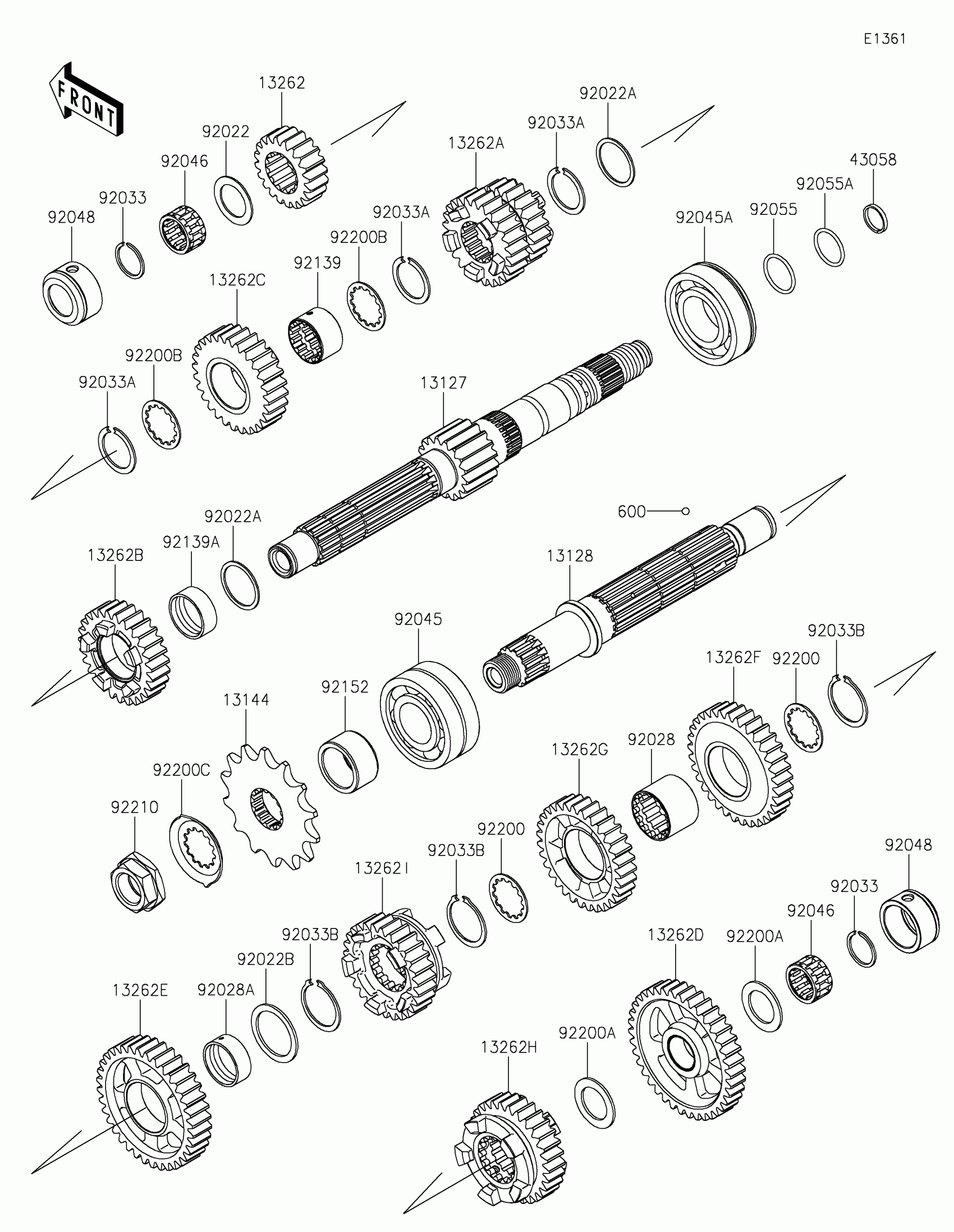

Kawasaki Z7 Hybrid Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,13T

13127-0724

$266.75

13128

SHAFT-TRANSMISSION OUTPUT,13T

13128-0733

$204.17

13144

SPROCKET-OUTPUT,14T

13144-0586

$53.99

13262

GEAR,INPUT 2ND,20T

13262-1636

$52.03

13262A

GEAR,INPUT 3RD&4TH,22T,25T

13262-1637

$101.58

13262B

GEAR,INPUT 5TH,27T

13262-1638

$67.47

13262C

GEAR,INPUT 6TH,28T

13262-1639

$70.37

13262D

GEAR,OUTPUT LOW,38T

13262-1640

$83.60

13262E

GEAR,OUTPUT 2ND,36T

13262-1641

$79.05

13262F

GEAR,OUTPUT 3RD,33T

13262-1642

$84.23

13262G

GEAR,OUTPUT 4TH,31T

13262-1643

$82.15

13262H

GEAR,OUTPUT 5TH,29T

13262-1644

$100.14

13262I

GEAR,OUTPUT 6TH,27T

13262-1645

$100.77

43058

RING

43058-0715

$12.39

92022

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022A

WASHER,25.3X30X1

92022-161

$8.10

92022B

WASHER,INPUT,3RD,LH

92022-1854

$8.31

92028

BUSHING,OUTPUT,3RD&4TH

92028-1738

$41.11

92028A

BUSHING,OUTPUT,2ND

92028-1739

$24.03

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92033B

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.54

92045

BEARING-BALL,DAC2557NSSH

92045-0003

$107.07

92045A

BEARING-BALL,28X58X16

92045-0841

$40.56

92046

BEARING-NEEDLE,KMJ20X26X15.1X2

92046-0649

$16.42

92048

RACE

92048-0046

$35.55

92055

RING-O,20.8X1.9

92055-0053

$3.69

92055A

RING-O,19.8X1.9

92055-1729

$2.41

92139

BUSHING,26X28X16.6

92139-0781

$23.44

92139A

BUSHING,25X28X10.4

92139-0793

$14.54

92152

COLLAR

92152-2906

$33.81

92200

WASHER,28.5X34.0X1.5

92200-1240

$7.83

92200A

WASHER,20.5X31X1.5

92200-1375

$4.17

92200B

WASHER

92200-1389

$1.68

92200C

WASHER

92200-1932

$3.51

92210

NUT,20MM

92210-0850

$10.93

600

BALL-STEEL,5/32

600A0500

$0.68
