2024 Kawasaki Z7 Hybrid Fuel Tank Diagram

← All diagrams

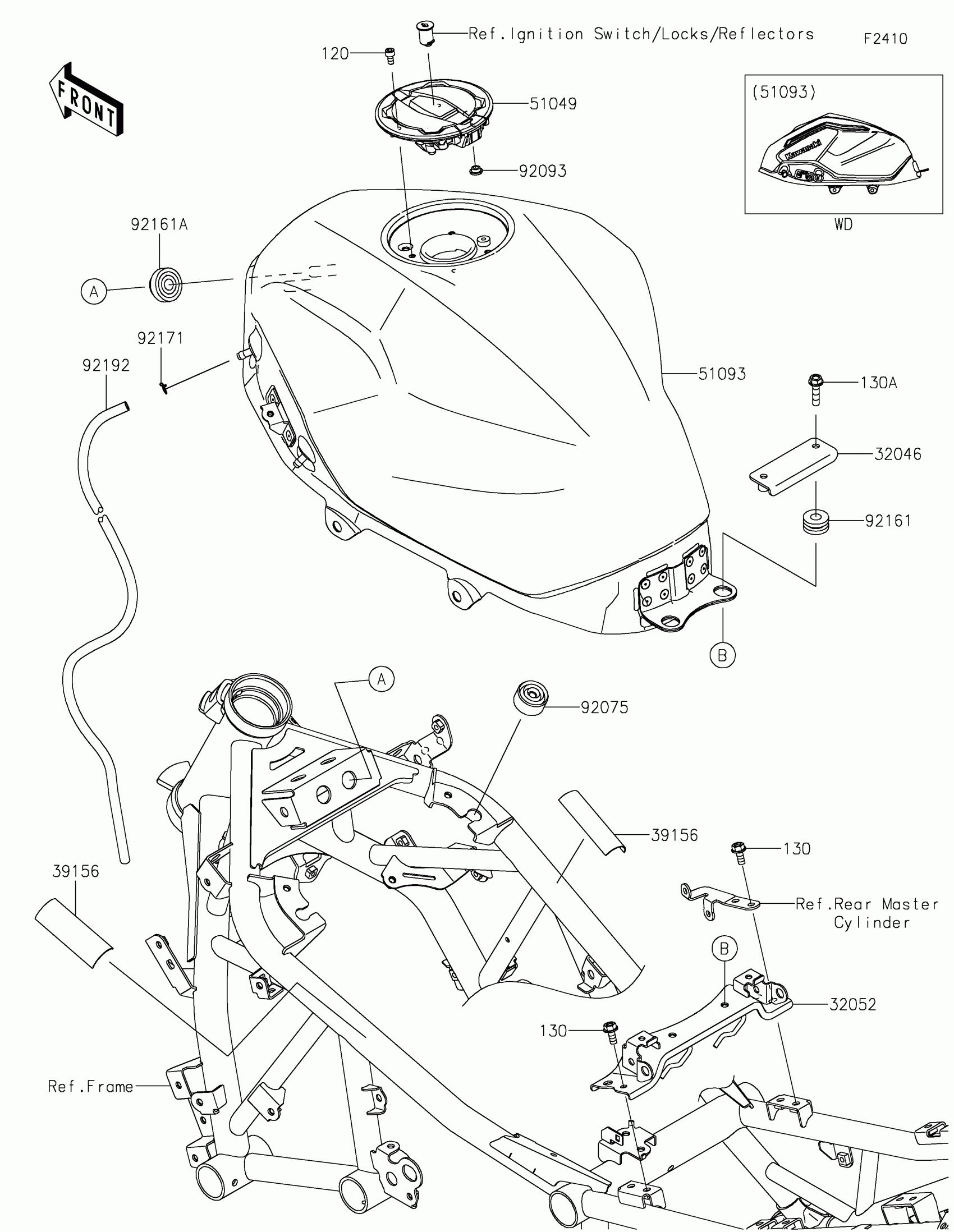

Find the part on the Fuel Tank diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Z7 Hybrid Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32046

BRACKET-SEAT

32046-0423

1
Out of stock

32052

BRACKET-TANK

32052-0851

1
Out of stock

39156

PAD,35X75X1

39156-2383

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51093

TANK-COMP-FUEL,M.B.SILVER

51093-5188-63S

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92161

DAMPER,10X24X12

92161-0927

1
Out of stock

92161A

DAMPER,10X32X17

92161-1980

1
Out of stock

92171

CLAMP,8X0.7

92171-1973

1
Out of stock

92192

TUBE,DRAIN,6X9X950

92192-2665

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

130A

BOLT-FLANGED,6X25

130CA0625

1
Out of stock
