2024 Kawasaki Z7 Hybrid Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2024 Kawasaki Z7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

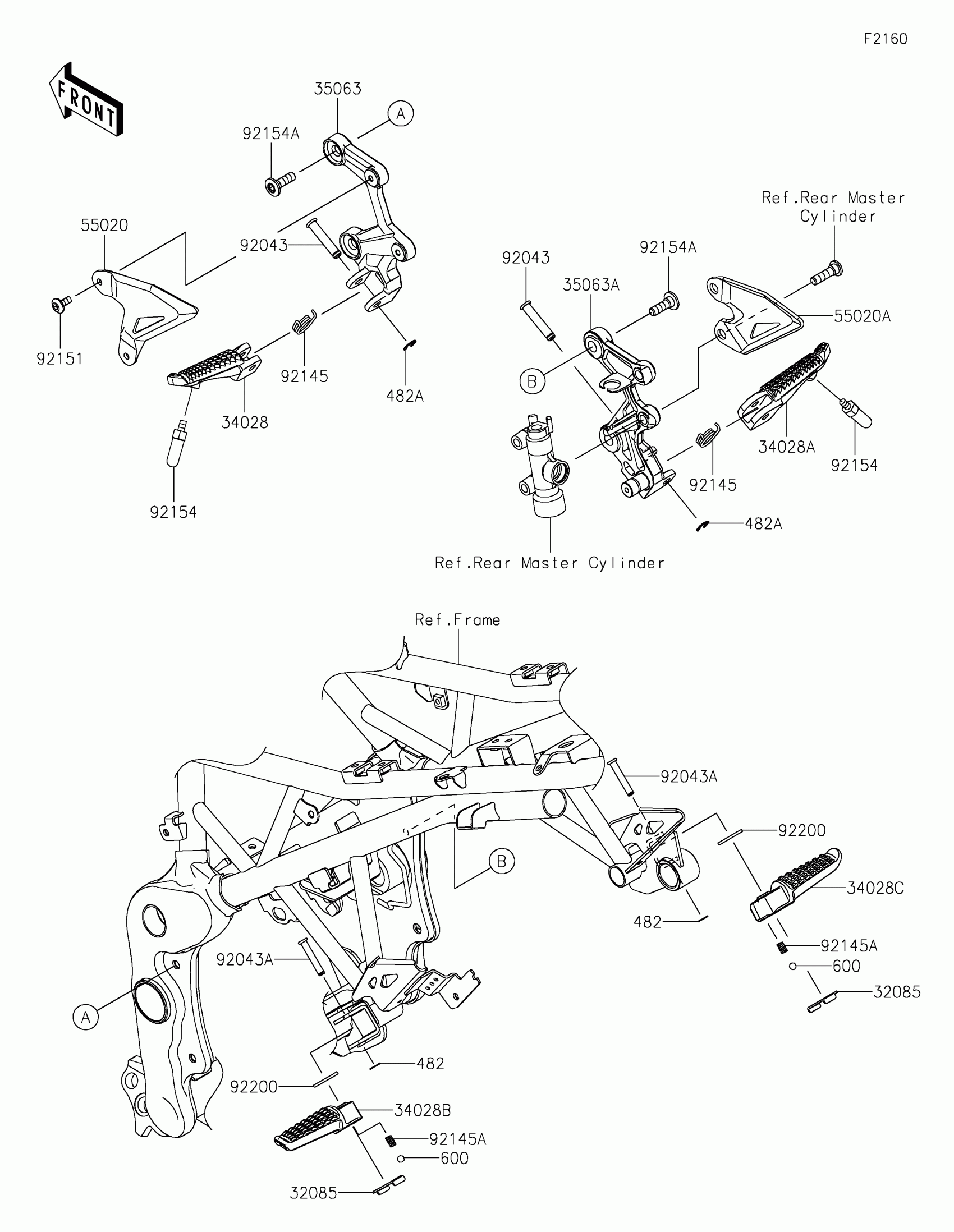

2024 Kawasaki Z7 Hybrid Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32085

STOPPER,REAR STEP

32085-0047

1
Out of stock

34028

STEP,FR,LH

34028-0356

1
Out of stock

34028A

STEP,FR,RH

34028-0357

1
Out of stock

34028B

STEP,RR,LH

34028-0366

1
Out of stock

34028C

STEP,RR,RH

34028-0367

1
Out of stock

35063

STAY,FR STEP,LH,F.S.BLACK

35063-1584-18R

1
Out of stock

35063A

STAY,FR STEP,RH,F.S.BLACK

35063-1585-18R

1
Out of stock

55020

GUARD,HEEL,LH

55020-2195

1
Out of stock

55020A

GUARD,HEEL,RH

55020-2196

1
Out of stock

92043

PIN,8X40.5

92043-0877

1
Out of stock

92043A

PIN,6X34

92043-1271

1
Out of stock

92145

SPRING

92145-0780

1
Out of stock

92145A

SPRING

92145-1319

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92154

BOLT,BANK SENSOR

92154-2799

1
Out of stock

92154A

BOLT,SOCKET,8X26

92154-3747

1
Out of stock

92200

WASHER,16X26X2.3

92200-0772

1
Out of stock

482

CIRCLIP-TYPE-E

482EA5000

1
Out of stock

482A

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock
