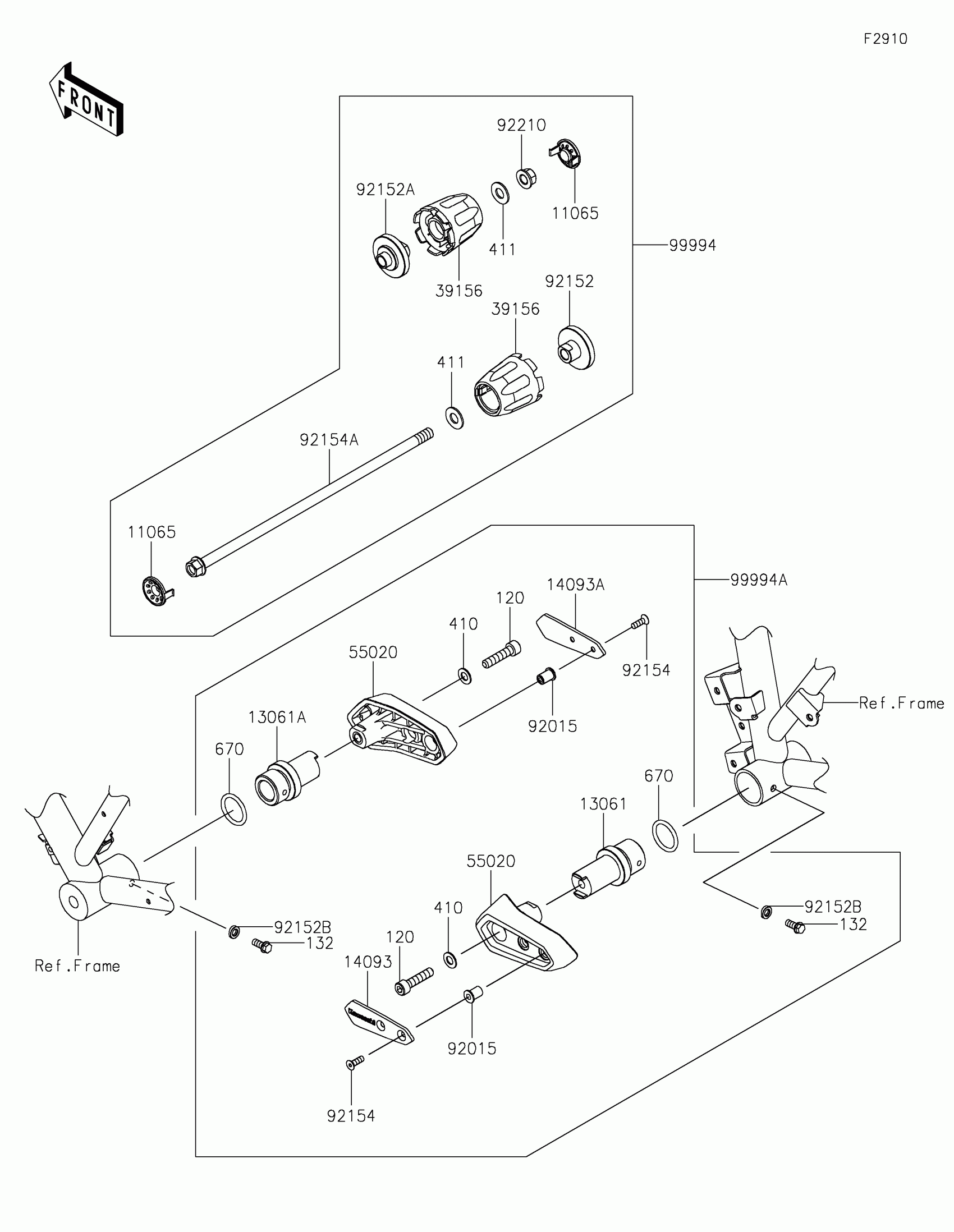

Kawasaki Z7 Hybrid Accessory(Slider) Diagram

Description

Price

11065

CAP,B.SILVER

11065-1313-54N

$7.41

13061

BOSS,LH

13061-2134

$179.20

13061A

BOSS,RH

13061-2135

$155.80

14093

COVER,SLIDER,LH

14093-0350

$91.14

14093A

COVER,SLIDER,RH

14093-0351

$91.14

39156

PAD,AXLE SLIDER

39156-2212

$60.42

55020

GUARD

55020-2411

$105.03

92015

NUT,WELL,5MM

92015-1757

$5.58

92152

COLLAR,LH

92152-2272

$79.30

92152A

COLLAR,RH

92152-2273

$79.30

92152B

COLLAR

92152-2645

$3.68

92154

BOLT,SOCKET,5X16

92154-1014

$0.73

92154A

BOLT,FLANGED,10X310

92154-4229

$85.37

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

99994

AXLE SLIDER,B.SILVER

99994-1542-54N

$169.07

99994A

FRAME SLIDER

99994-1929

$273.46

120

BOLT-SOCKET,8X35

120CA0835

$1.68

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

410

WASHER-PLAIN-SMALL,8MM

410AA0800

$0.81

411

WASHER-PLAIN,10MM

411AA1000

$0.81

670

O RING,26MM

670B3026

$3.89
