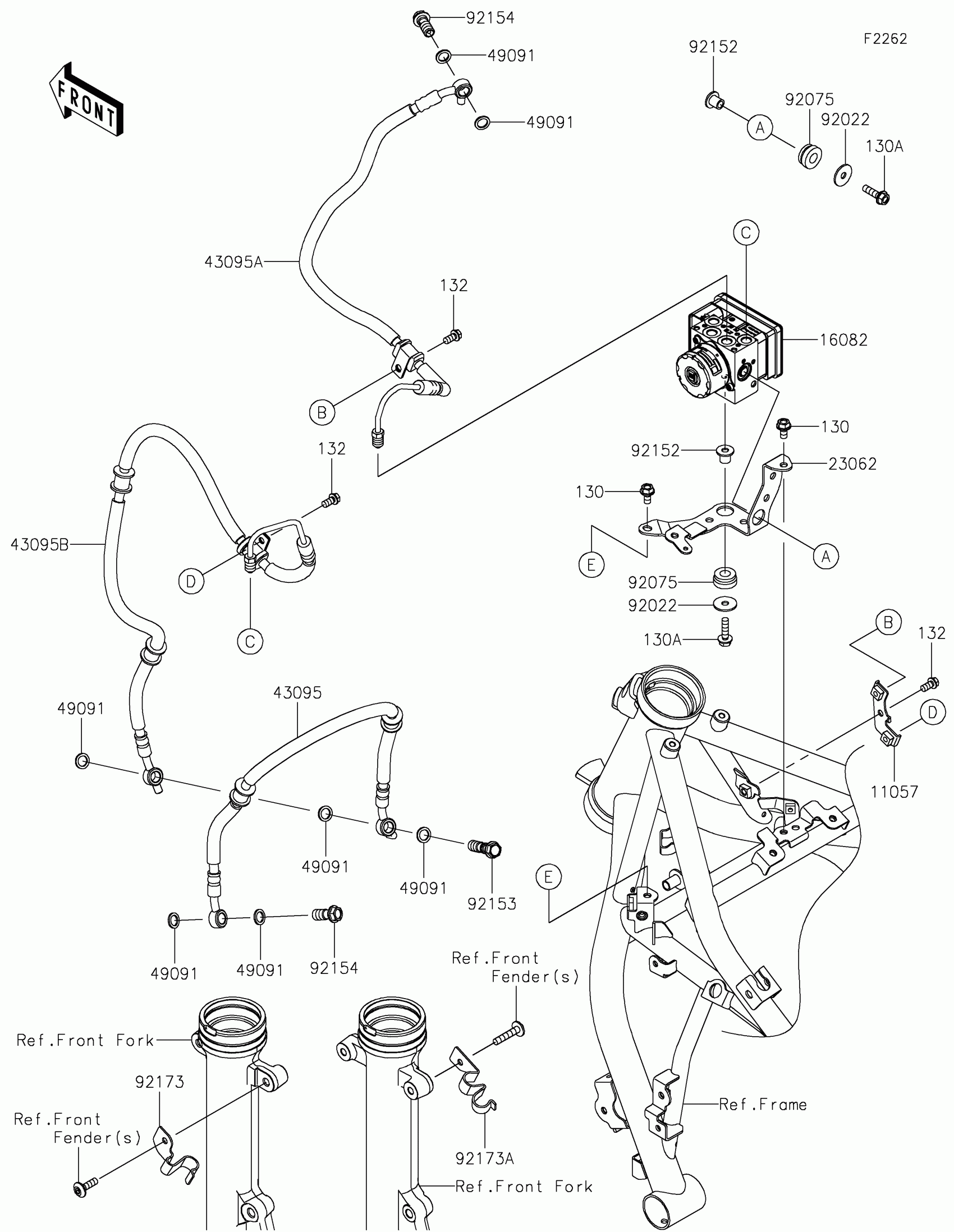

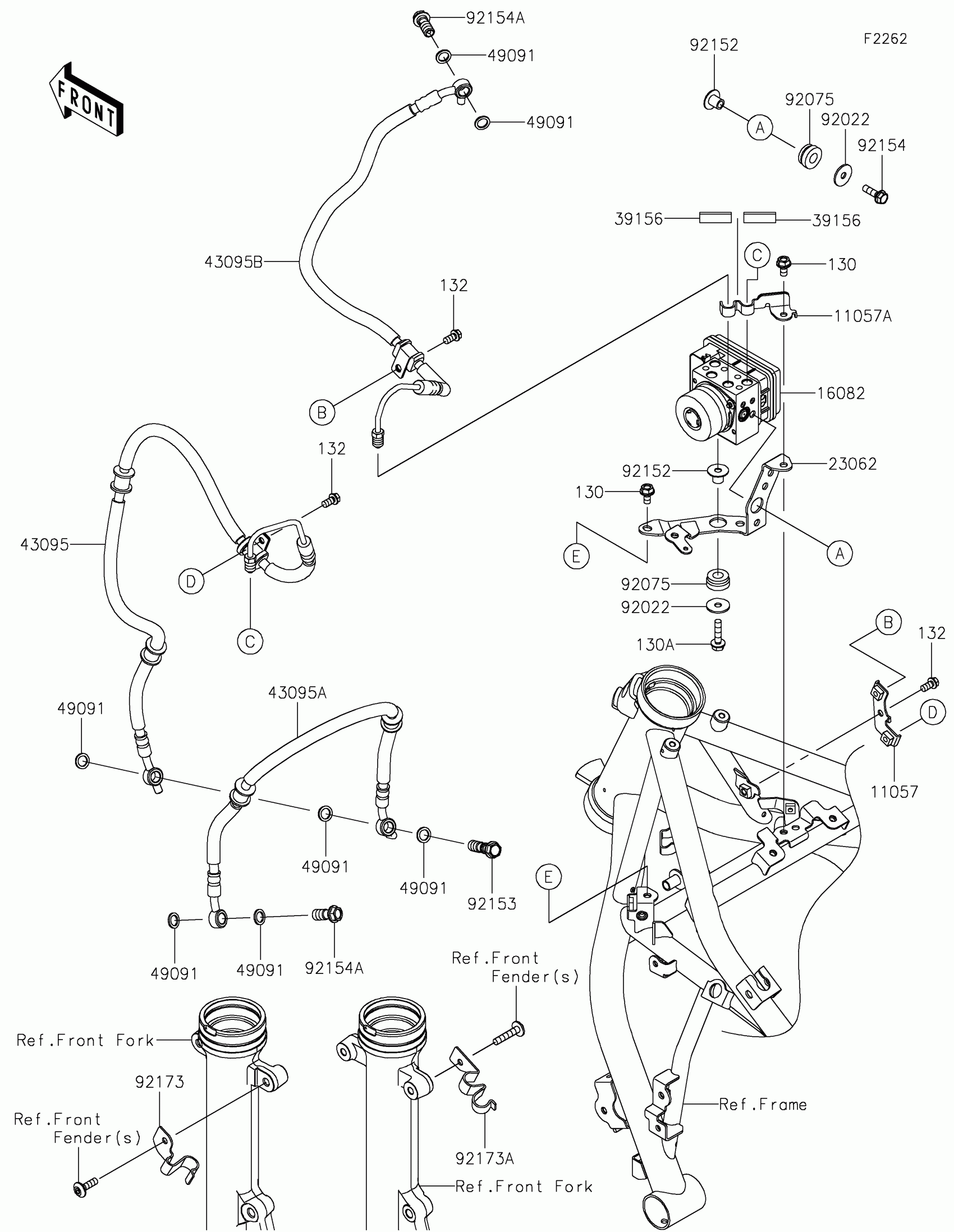

2022 Kawasaki Z650RS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2022 Kawasaki Z650RS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Z650RS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BRAKE HOSE

11057-0275

1

$3.15

In stock

11057A

BRACKET,BRAKE PIPE

11057-7144

1

$5.08

In stock

16082

PUMP-ASSY-OIL,ABS

16082-0767

1

$1,340.31

In stock

23062

1

$5.47

In stock

39156

PAD,10X70X3

39156-2203

1

$0.69

In stock

43095

1

$232.77

In stock

43095A

1

$176.19

In stock

43095B

1

$161.22

In stock

49091

1

$1.81

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92075

DAMPER

92075-277

1

$2.20

In stock

92152

COLLAR,6.5X20X12

92152-2262

1
Out of stock

92153

BOLT,OIL,L=37

92153-0628

1
Out of stock

92154

BOLT,FLANGED,6X20

92154-0776

1

$1.93

In stock

92154A

BOLT,OIL,L=23

92154-4239

1

$4.68

In stock

92173

CLAMP,FR FENDER,LH

92173-2408

1

$3.12

In stock

92173A

CLAMP,FR FENDER,RH

92173-2409

1

$3.68

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock

132

1

$1.12

In stock
← Brake Pedal/torque Link Front Brake →
