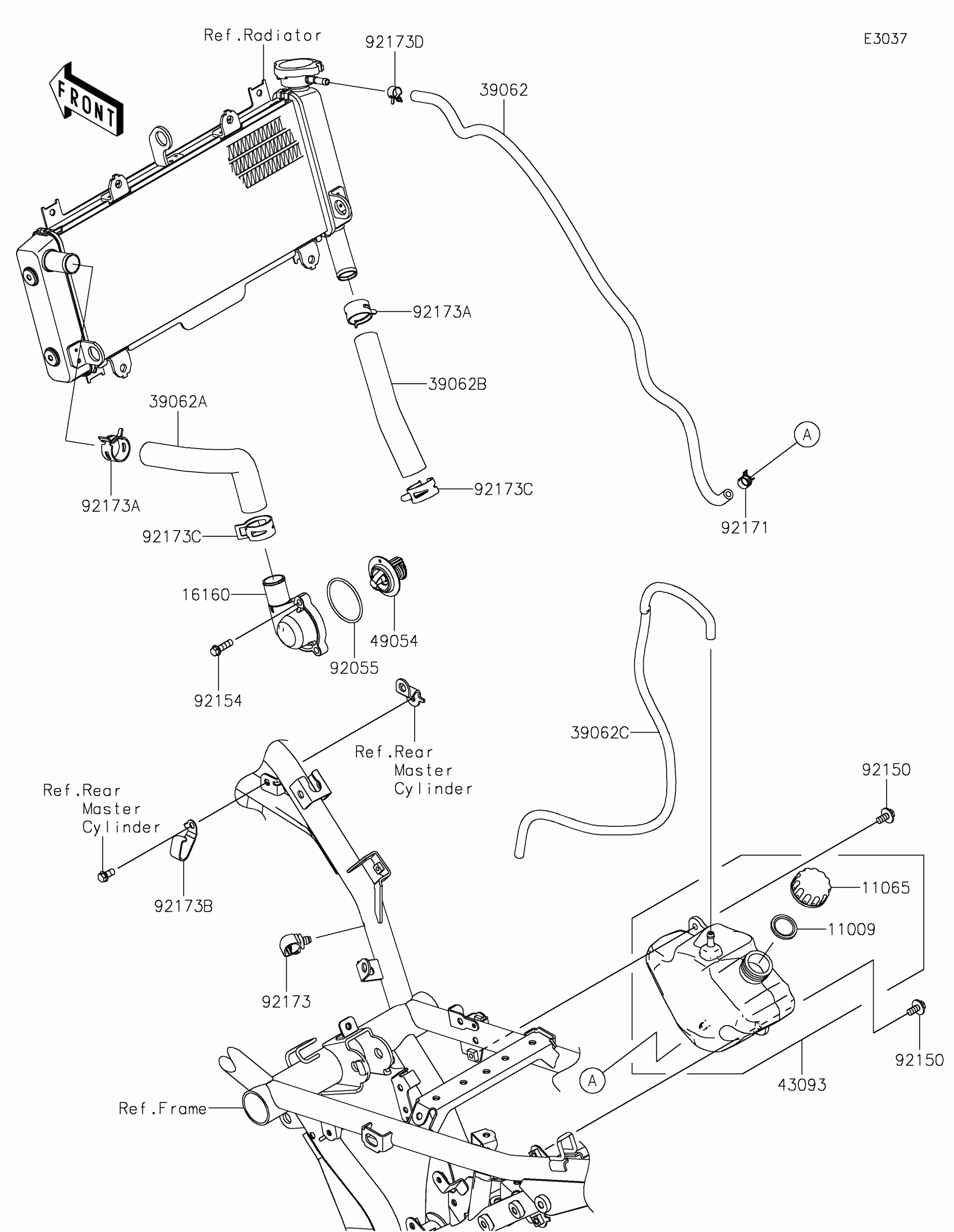

Kawasaki Z650RS ABS Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.25

11065

CAP

11065-0962

$1.69

16160

BODY,THERMOSTAT

16160-0830

$47.83

39062

HOSE-COOLING,RADI.-RESERVOIR

39062-0745

$9.81

39062A

HOSE-COOLING,HEAD-RADIATOR

39062-0747

$10.97

39062B

HOSE-COOLING,RADIATOR-PUMP

39062-0748

$11.68

39062C

HOSE-COOLING,BREATHER

39062-0930

$9.24

43093

RESERVOIR-ASSY-TANK

43093-0003

$67.09

49054

THERMOSTAT

49054-0001

$27.83

92055

RING-O,46.7X2.4

92055-0992

$5.00

92150

BOLT,6X14

92150-1340

$4.02

92154

BOLT,FLANGED,6X20

92154-1778

$1.88

92171

CLAMP,10.5X8X0.7

92171-1992

$5.42

92173

CLAMP,12MM DIA.

92173-0736

$4.01

92173A

CLAMP

92173-1567

$3.14

92173B

CLAMP

92173-1592

$2.59

92173C

CLAMP

92173-1688

$3.07

92173D

CLAMP

92173-2425

$1.22
