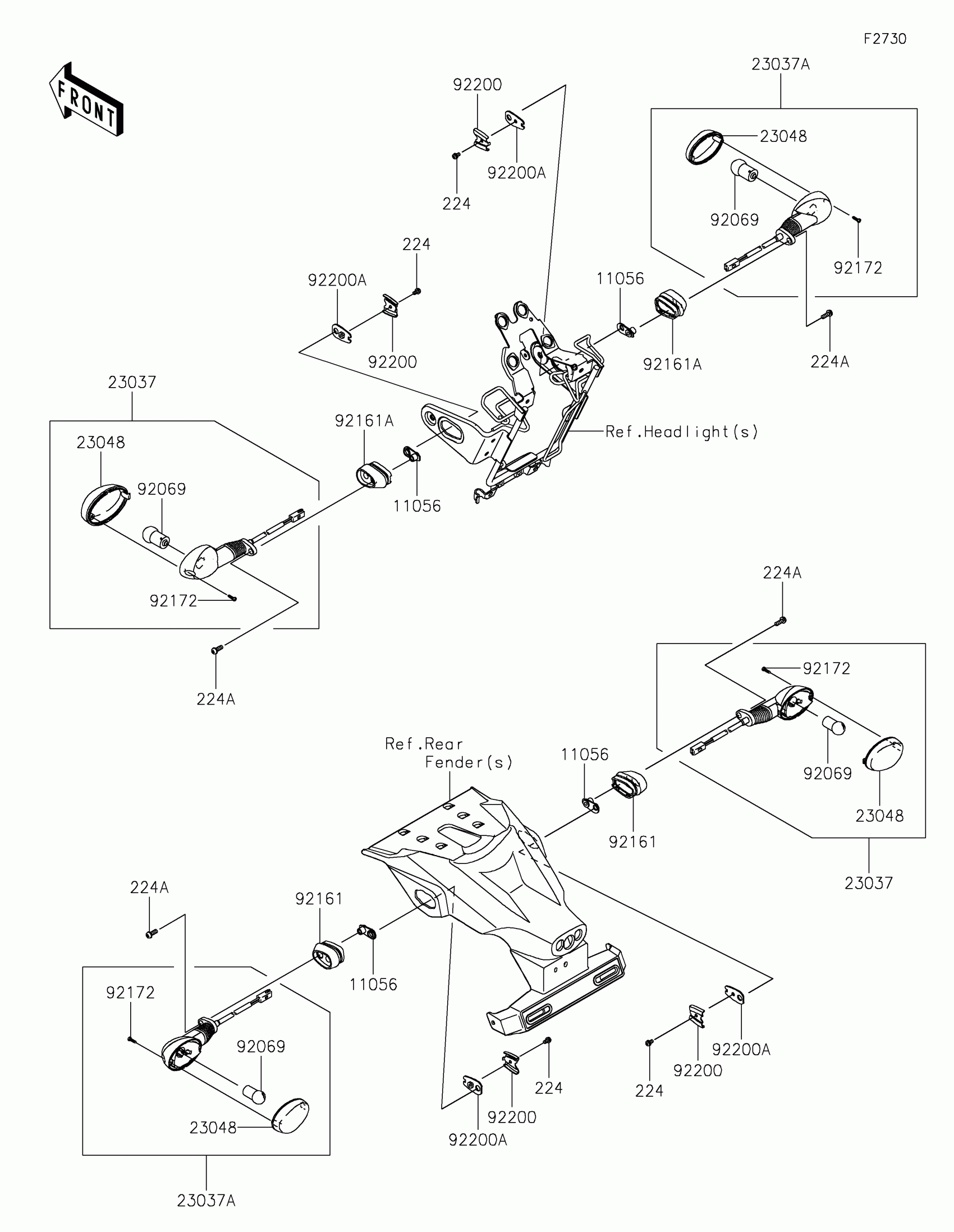

Kawasaki Z650RS ABS Turn Signals Diagram

Description

Price

11056

BRACKET,6MM

11056-4156

$3.78

23037

LAMP-ASSY-SIGNAL,RR,RH

23037-0416

$43.57

23037A

LAMP-ASSY-SIGNAL,RR,LH

23037-0417

$43.57

23048

LENS-SIGNAL LAMP

23048-0035

$8.27

92069

BULB,12V 10W

92069-0106

$3.16

92161

DAMPER

92161-2287

$7.88

92161A

DAMPER,SIGNAL LAMP

92161-2374

$5.69

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92200

WASHER,SIGNAL LAMP

92200-0165

$3.01

92200A

WASHER

92200-2291

$2.56

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$2.79

224A

SCREW-PAN-WP-CROS,6X14

224AB0614

$3.14
