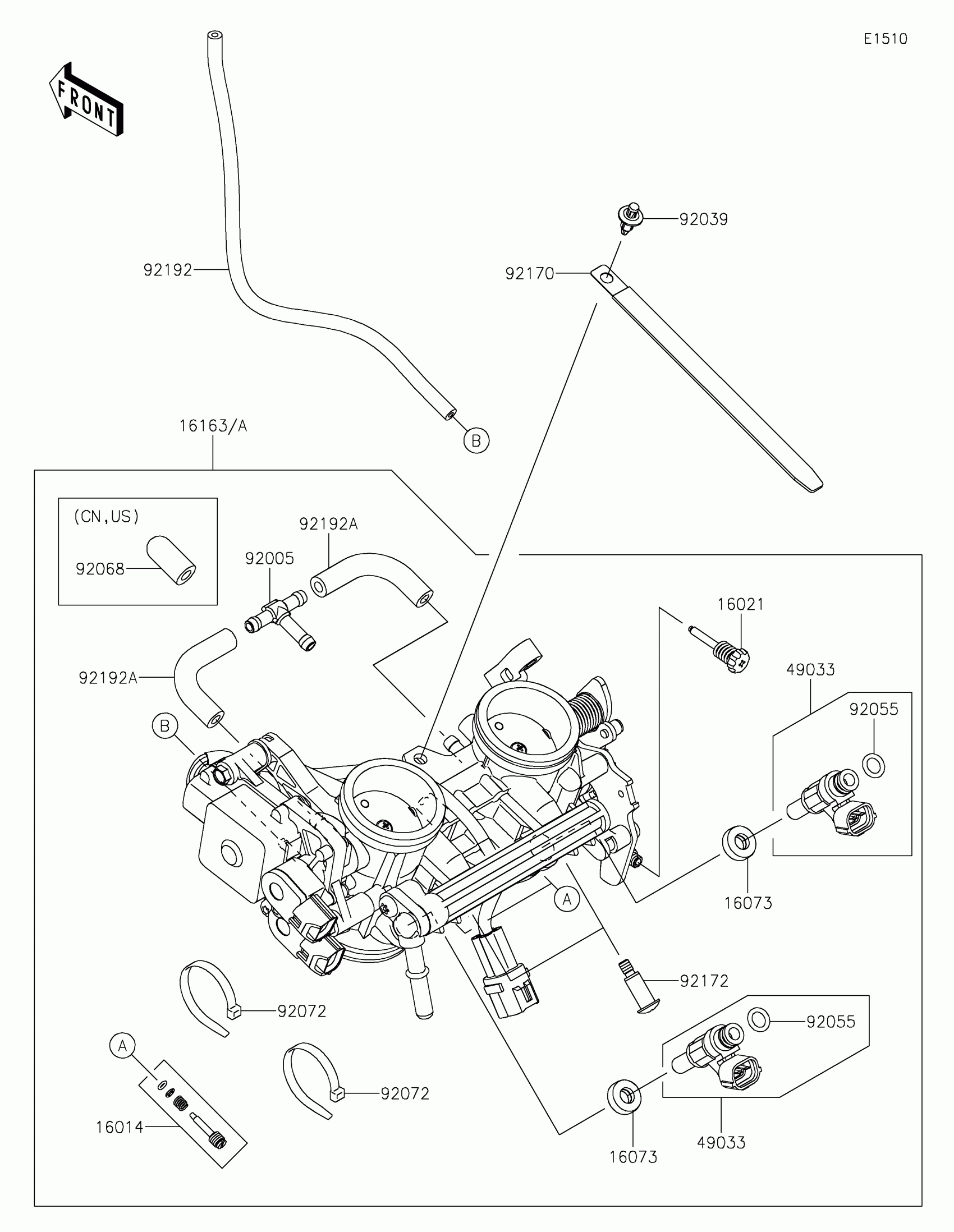

Kawasaki Z650RS ABS Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0002

$23.08

16021

SCREW-THROTTLE STOP

16021-0033

$70.89

16073

INSULATOR

16073-0129

$4.75

16163

THROTTLE-ASSY

16163-0875

$819.75

16163A

THROTTLE-ASSY

16163-1131

$819.75

49033

NOZZLE-INJECTION

49033-0568

$94.10

92005

FITTING,3WAY

92005-0730

$14.00

92039

RIVET

92039-0707

$1.69

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.42

92068

PLUG,12X25

92068-006

$3.39

92072

BAND,SUB-HARNESS

92072-0012

$3.97

92170

CLAMP,L=150

92170-1114

$7.36

92172

SCREW,PIPE INJECTION

92172-0064

$2.29

92192

TUBE,3X6.7X300

92192-0977

$4.42

92192A

TUBE

92192-1045

$5.71
