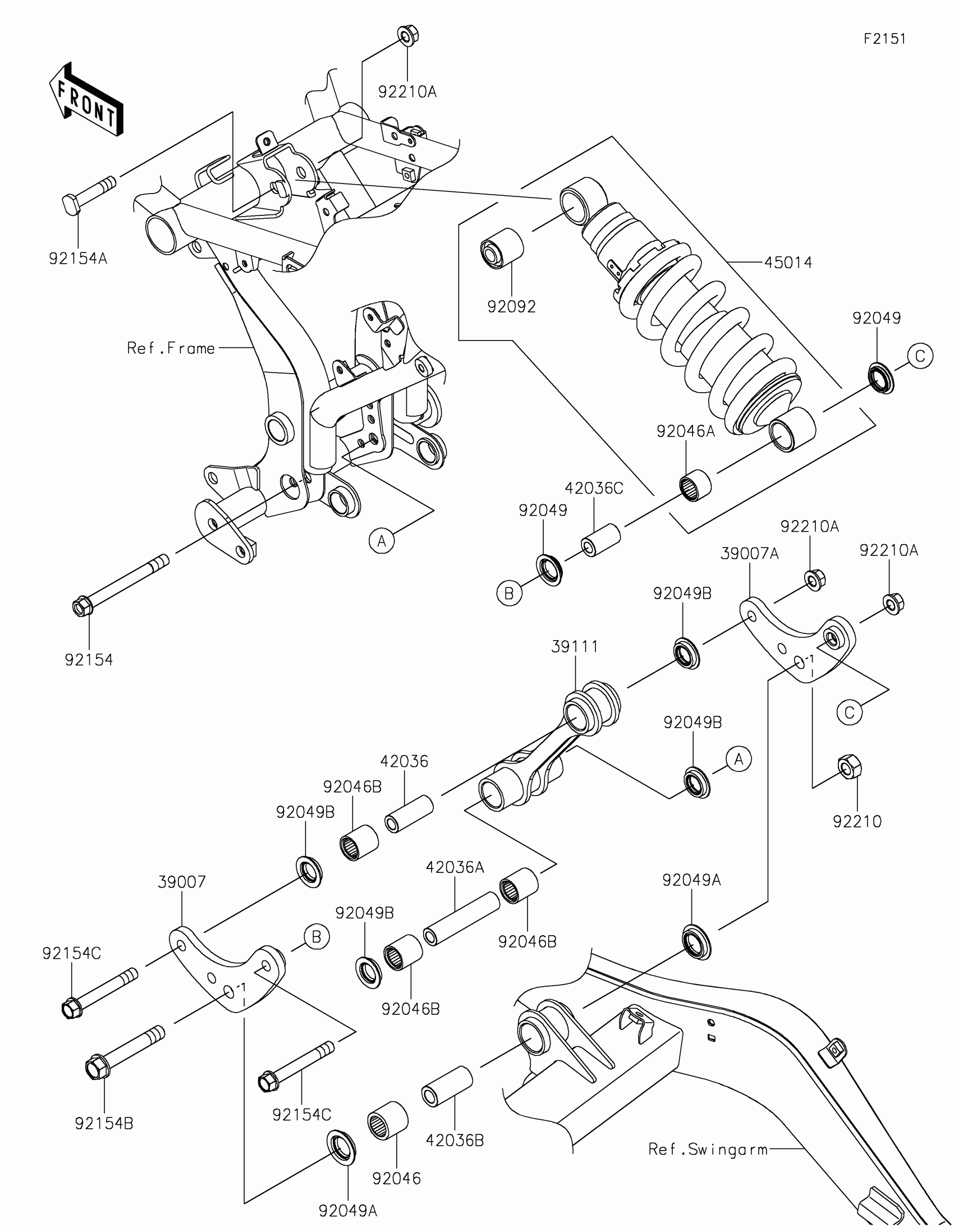

Kawasaki Z650RS ABS Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,LH

39007-0401

$75.32

39007A

ARM-SUSP,RH

39007-0402

$75.32

39111

ROD-TIE

39111-0343

$160.02

42036

SLEEVE,10.1X17X44.5

42036-0718

$22.61

42036A

SLEEVE,10.1X17X79.8

42036-0787

$30.39

42036B

SLEEVE,12.1X20X44.5

42036-0788

$23.46

42036C

SLEEVE,10.1X18X32

42036-1344

$10.83

45014

SHOCKABSORBER,P.SILVER

45014-0565-458

$476.88

92046

BEARING-NEEDLE,7E-HVS20X27X25

92046-1236

$18.56

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

$12.45

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

$13.34

92049

SEAL-OIL

92049-0133

$9.71

92049A

SEAL-OIL,ARM

92049-1109

$7.08

92049B

SEAL-OIL,MHA17245.7F

92049-1223

$6.75

92092

BUSHING-RUBBER

92092-1058

$30.46

92154

BOLT,FLANGED,10X100

92154-1257

$9.88

92154A

BOLT,10X50

92154-2165

$5.14

92154B

BOLT,FLANGED,12X75

92154-2166

$10.85

92154C

BOLT,FLANGED,10X75

92154-2226

$8.97

92210

NUT,LOCK,12MM

92210-0274

$2.15

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90
