Description

Price

11012

CAP,AXLE NUT

11012-1590

$4.16

41068

AXLE,RR,20X339.9

41068-0617

$112.09

41073

WHEEL-ASSY,RR,GOLD

41073-0798-63J

$999.56

41073A

WHEEL-ASSY,RR,G.BLACK

41073-0798-QT

$999.56

42033

COUPLING-ASSY,RR HUB

42033-0570

$235.46

42036

SLEEVE,RR HUB,L=23

42036-1251

$23.69

42041

SPROCKET-HUB,46T

42041-0177

$79.55

42045

NUT,CASTLE,18MM

42045-018

$7.31

92004

STUD,10X19

92004-0048

$6.75

92033

RING-SNAP,52MM

92033-1043

$6.41

92045

BEARING-BALL,20X47X14

92045-0821

$18.29

92049

SEAL-OIL,28 47 5

92049-0140

$6.71

92049A

SEAL-OIL

92049-1287

$10.37

92057

CHAIN,DRIVE,DID520VEX114L

92057-0695

$240.29

92058

JOINT-CHAIN

92058-0044

$13.00

92152

COLLAR,RR AXLE,RH,L=17

92152-0302

$13.35

92152A

COLLAR,20X35X18

92152-0751

$18.36

92152B

COLLAR,20.2X27.2X133

92152-2228

$22.31

92161

DAMPER,SHOCK,RR HUB

92161-0303

$12.55

92200

WASHER,19X32X4

92200-1865

$2.20

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.15

550

PIN-COTTER,4.0X35

550AA4035

$1.81

601

BEARING-BALL

601B6205UU

$26.83

671

O RING,60MM

671B2560

$5.45

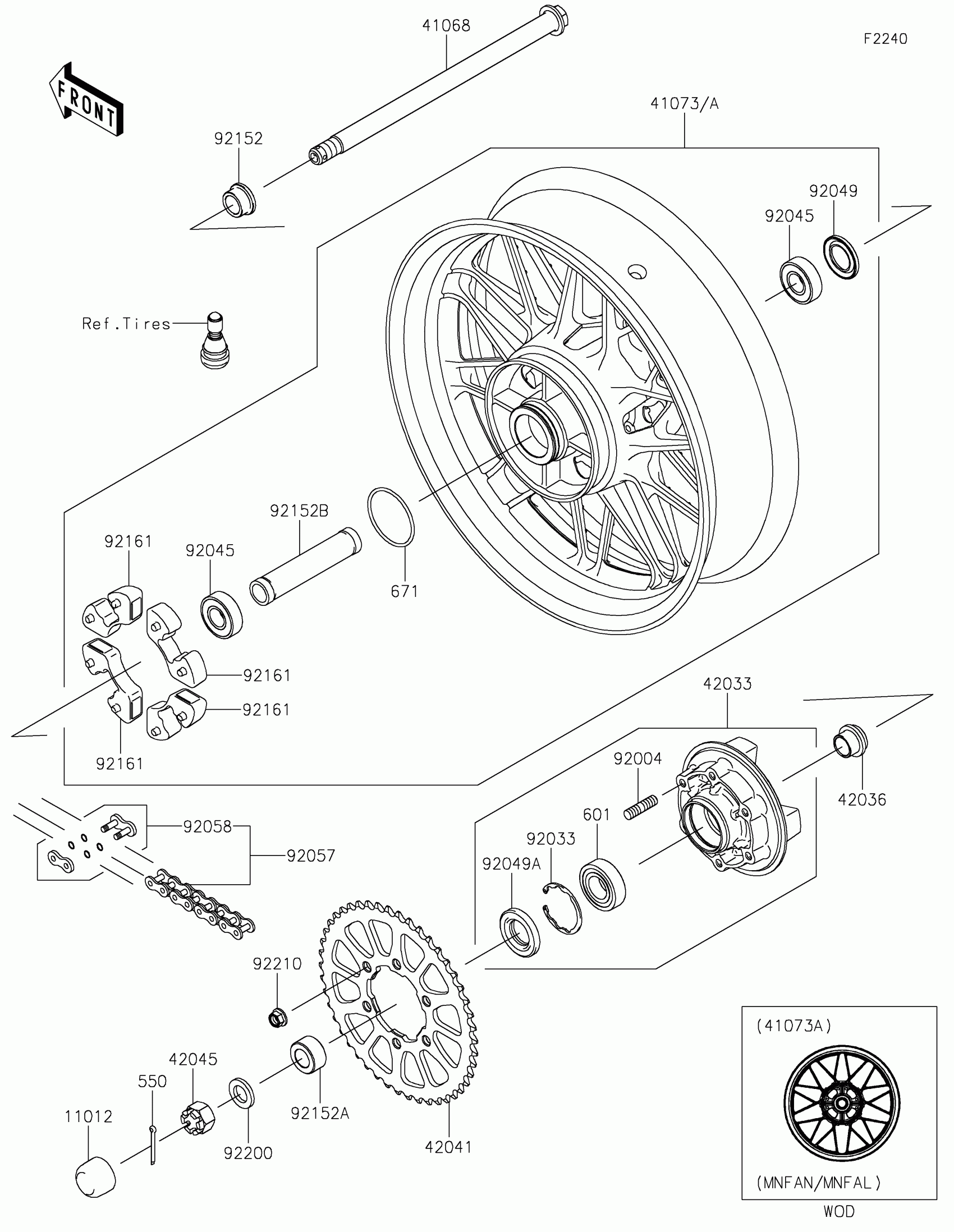

Kawasaki Z650RS ABS Rear Wheel/Chain Diagram
