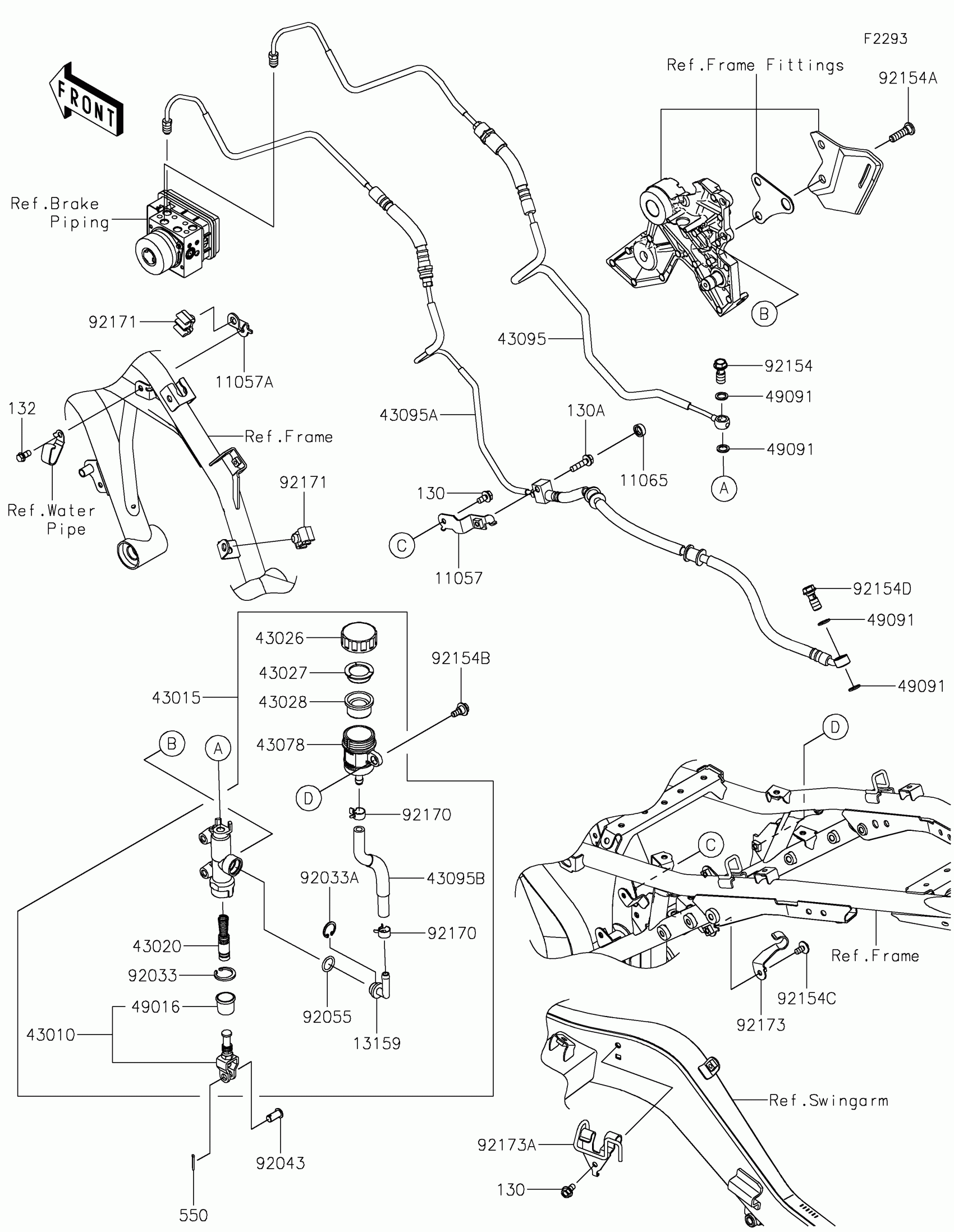

Kawasaki Z650RS ABS Rear Master Cylinder Diagram

#

Description
Price

11057

BRACKET,ABS JOINT

11057-0161

$4.93

11057A

BRACKET,FR ABS PIPE

11057-0166

$2.59

11065

CAP,BOLT

11065-0752

$1.93

13159

CONNECTOR

13159-1056

$10.71

43010

ROD-ASSY-BRAKE

43010-0020

$29.90

43015

CYLINDER-ASSY-MASTER,RR

43015-0754

$267.96

43020

PISTON-COMP-BRAKE

43020-1094

$58.51

43026

CAP-BRAKE

43026-0009

$38.22

43027

PLATE-DIAPHRAGM

43027-1053

$4.97

43028

DIAPHRAGM

43028-1065

$17.85

43078

RESERVOIR

43078-0060

$33.06

43095

HOSE-BRAKE,RR M/CYL.-ABS UNIT

43095-0961

$284.04

43095A

HOSE-BRAKE,ABS UNIT-RR CAL.

43095-0962

$329.31

43095B

HOSE-BRAKE,RR M/CYL.

43095-0969

$17.29

49016

COVER-SEAL,BRAKE PISTON

49016-1103

$12.73

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92043

PIN

92043-0182

$2.64

92055

RING-O,14.8X2.4

92055-0741

$2.82

92154

BOLT,FLANGED,10X23

92154-0732

$3.85

92154A

BOLT,SOCKET,8X30

92154-0843

$3.59

92154B

BOLT

92154-0929

$3.27

92154C

BOLT,SOCKET,6X12

92154-0951

$1.24

92154D

BOLT,OIL,L=23

92154-4239

$4.46

92170

CLAMP,HOSE

92170-1091

$3.81

92171

CLAMP

92171-0818

$3.93

92173

CLAMP,RR BRAKE HOSE

92173-1604

$2.76

92173A

CLAMP

92173-2291

$7.41

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X25

130BA0625

$0.97

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

550

PIN-COTTER,2.0X15

550AA2015

$0.90
