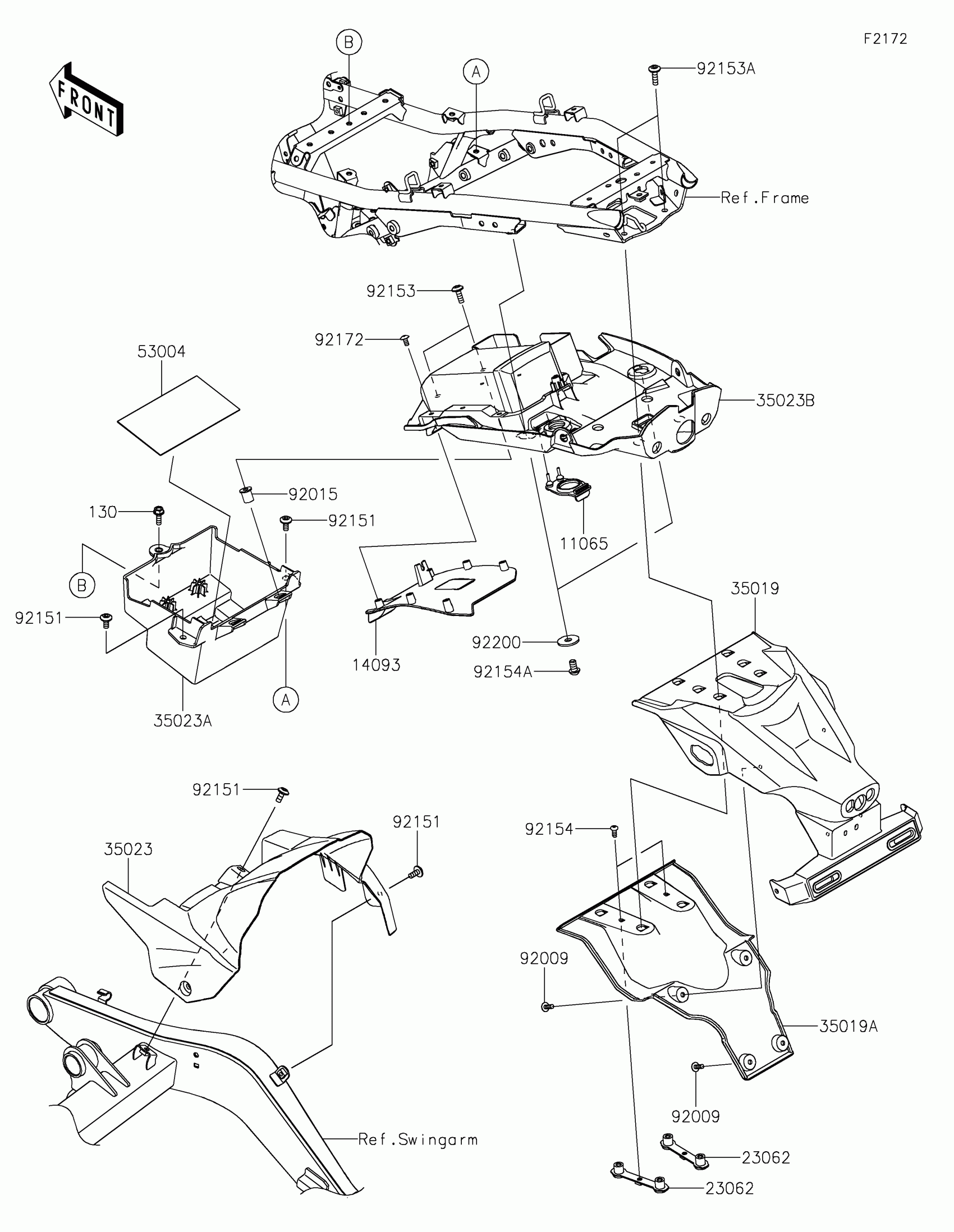

Kawasaki Z650RS ABS Rear Fender(s) Diagram

Description

Price

11065

CAP

11065-1375

$2.61

14093

COVER,CANISTER

14093-1101

$37.61

23062

BRACKET-COMP,RR FENDER

23062-1314

$11.17

35019

FLAP,UPP

35019-0684

$57.63

35019A

FLAP,LWR

35019-0685

$39.52

35023

FENDER-REAR

35023-0417

$25.51

35023A

FENDER-REAR,FR

35023-0483

$37.31

35023B

FENDER-REAR,RR

35023-0484

$55.42

53004

MAT,BATTERY

53004-0560

$8.85

92009

SCREW,TAPPING,5X14

92009-1197

$3.12

92015

NUT

92015-1700

$6.82

92151

BOLT,SOCKET,6X14

92151-1654

$1.56

92153

BOLT,6X18

92153-0816

$1.81

92153A

BOLT,SOCKET,6X22

92153-1356

$1.81

92154

BOLT,SOCKET,5X12

92154-1471

$1.32

92154A

BOLT,SOCKET,8X14

92154-2651

$2.03

92172

SCREW,5X10

92172-0864

$1.20

92200

WASHER,9X28X2.3

92200-1951

$3.92

130

BOLT-FLANGED,6X18

130BA0618

$1.36
