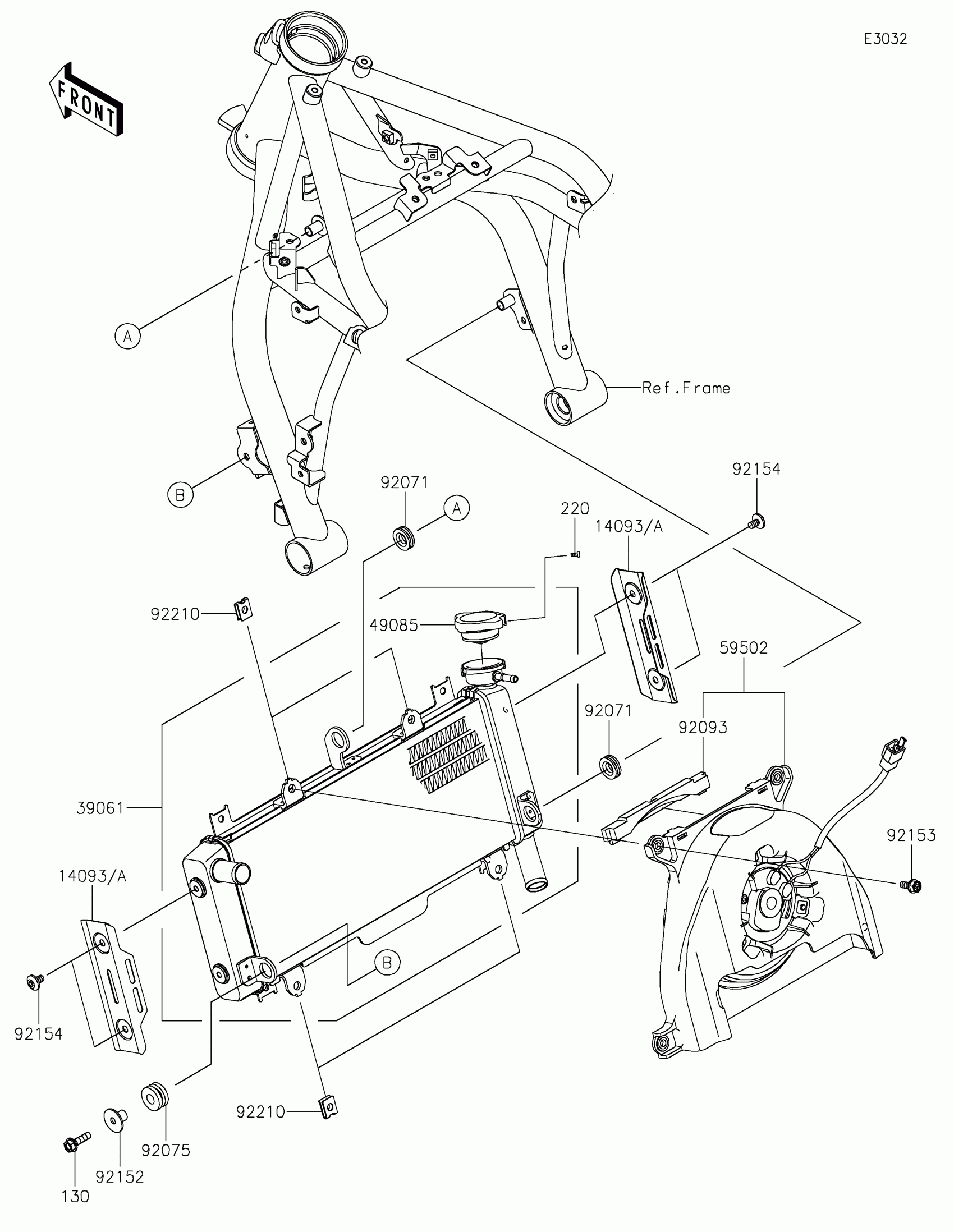

Kawasaki Z650RS ABS Radiator Diagram

Description

Price

14093

COVER,RADIATOR,SILVER

14093-1094-28Z

$59.25

14093A

COVER,RADIATOR,BLACK

14093-1094-499

$59.25

39061

RADIATOR-ASSY

39061-0833

$881.07

49085

CAP-ASSY-PRESSURE

49085-0016

Unavailable

59502

FAN-ASSY

59502-0608

$360.00

92071

GROMMET

92071-1115

$4.14

92075

DAMPER,10X24X12

92075-1690

$3.81

92093

SEAL

92093-0695

$7.51

92152

COLLAR

92152-2324

$3.29

92153

BOLT

92153-0531

$1.85

92154

BOLT,SOCKET,6X10

92154-2558

$1.47

92210

NUT

92210-1323

$3.19

130

BOLT-FLANGED,6X22

130BB0622

$2.79

220

SCREW-PAN-CROS,3X6

220AB0306

Unavailable
