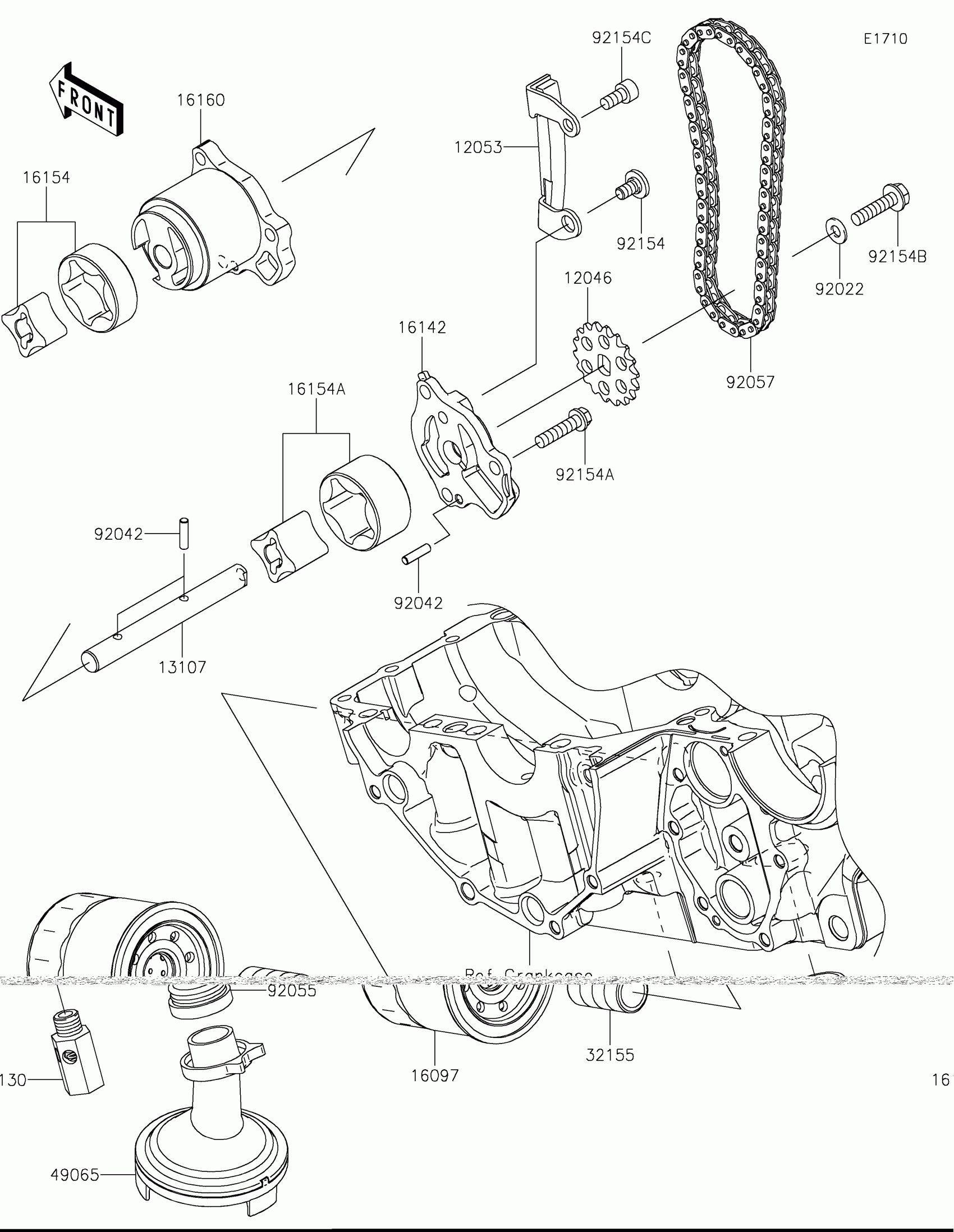

Kawasaki Z650RS ABS Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,18T,BF04M

12046-0040

$11.41

12053

GUIDE-CHAIN

12053-0071

$31.36

13107

SHAFT,OIL PUMP

13107-0772

$30.16

16097

FILTER-ASSY-OIL

16097-0008

$11.00

16130

VALVE-ASSY-RELIEF

16130-0552

$46.63

16142

COVER-PUMP

16142-0712

$30.16

16154

ROTOR-PUMP,L=14

16154-0037

$62.33

16154A

ROTOR-PUMP,40.56X22

16154-1115

$62.78

16160

BODY

16160-0110

$39.15

32155

PIPE,OIL FILTER

32155-0029

$14.17

49065

FILTER-OIL

49065-0708

$32.36

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92055

RING-O,OIL FILTER

92055-1354

$7.25

92057

CHAIN,DID 215FD-DHA,56LE

92057-0098

$40.63

92154

BOLT,SOCKET,6X11

92154-0188

$2.41

92154A

BOLT,FLANGED,6X25

92154-0783

$7.15

92154B

BOLT,FLANGED,6X25

92154-0811

$1.66

92154C

BOLT,SOCKET,6X12

92154-0812

$4.95
