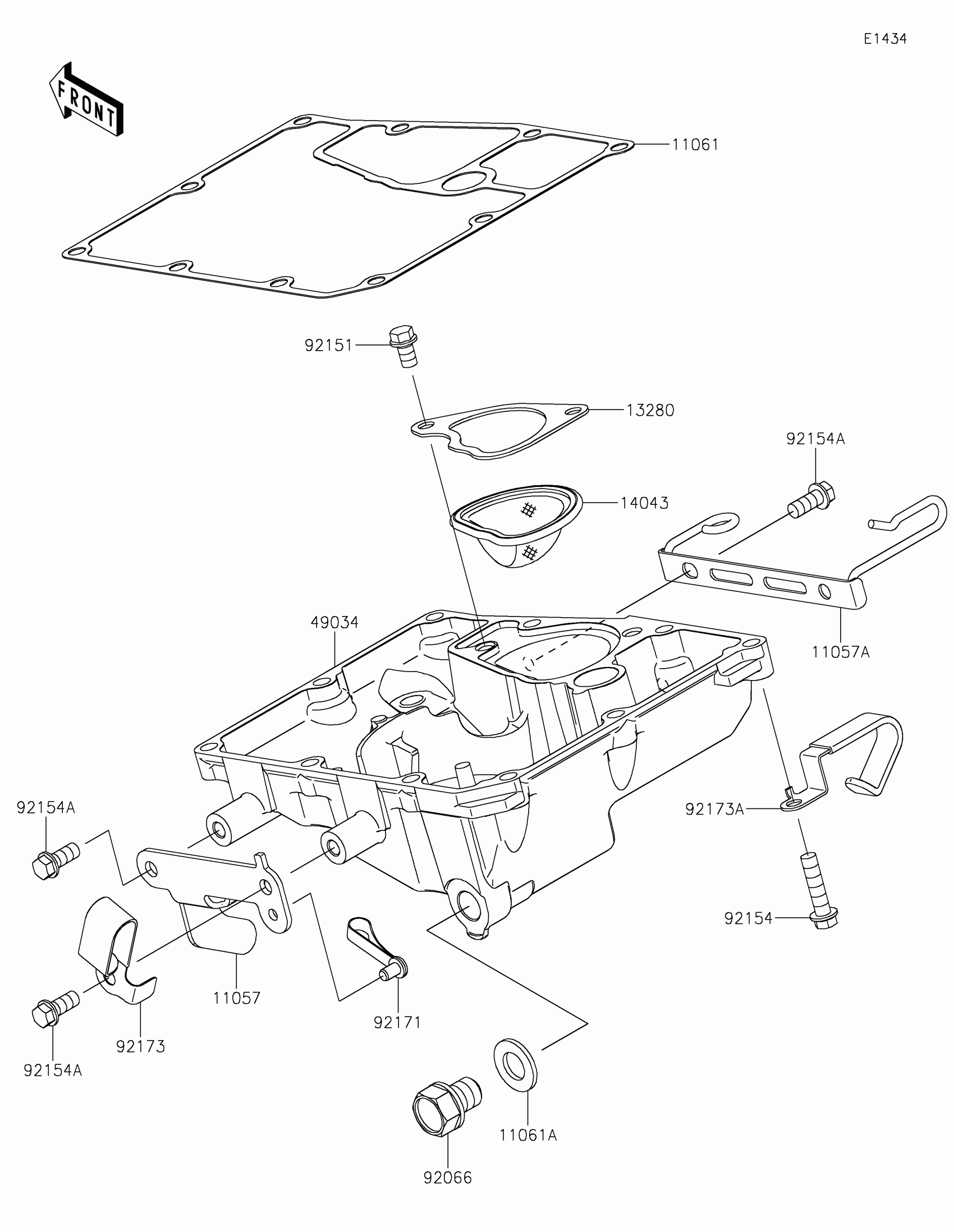

Kawasaki Z650RS ABS Oil Pan Diagram

Description

Price

11057

BRACKET,LH

11057-0046

$4.93

11057A

BRACKET,RH

11057-0047

$7.56

11061

GASKET,OIL PAN

11061-0167

$11.91

11061A

GASKET,12X22X2

11061-0417

$2.58

13280

HOLDER,OIL FILTER

13280-0134

$3.66

14043

FILTER,OIL(SCAVENGE)

14043-0008

$10.46

49034

PAN-OIL

49034-0552

$141.32

92066

PLUG,OIL DRAIN,12X15

92066-0767

$5.45

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

$1.95

92154

BOLT,FLANGED,6X25

92154-0819

$1.93

92154A

BOLT,FLANGED,6X14

92154-1426

$1.69

92171

CLAMP,SPEED

92171-0836

$3.51

92173

CLAMP,84MM

92173-1008

$4.68

92173A

CLAMP

92173-1693

$3.29
