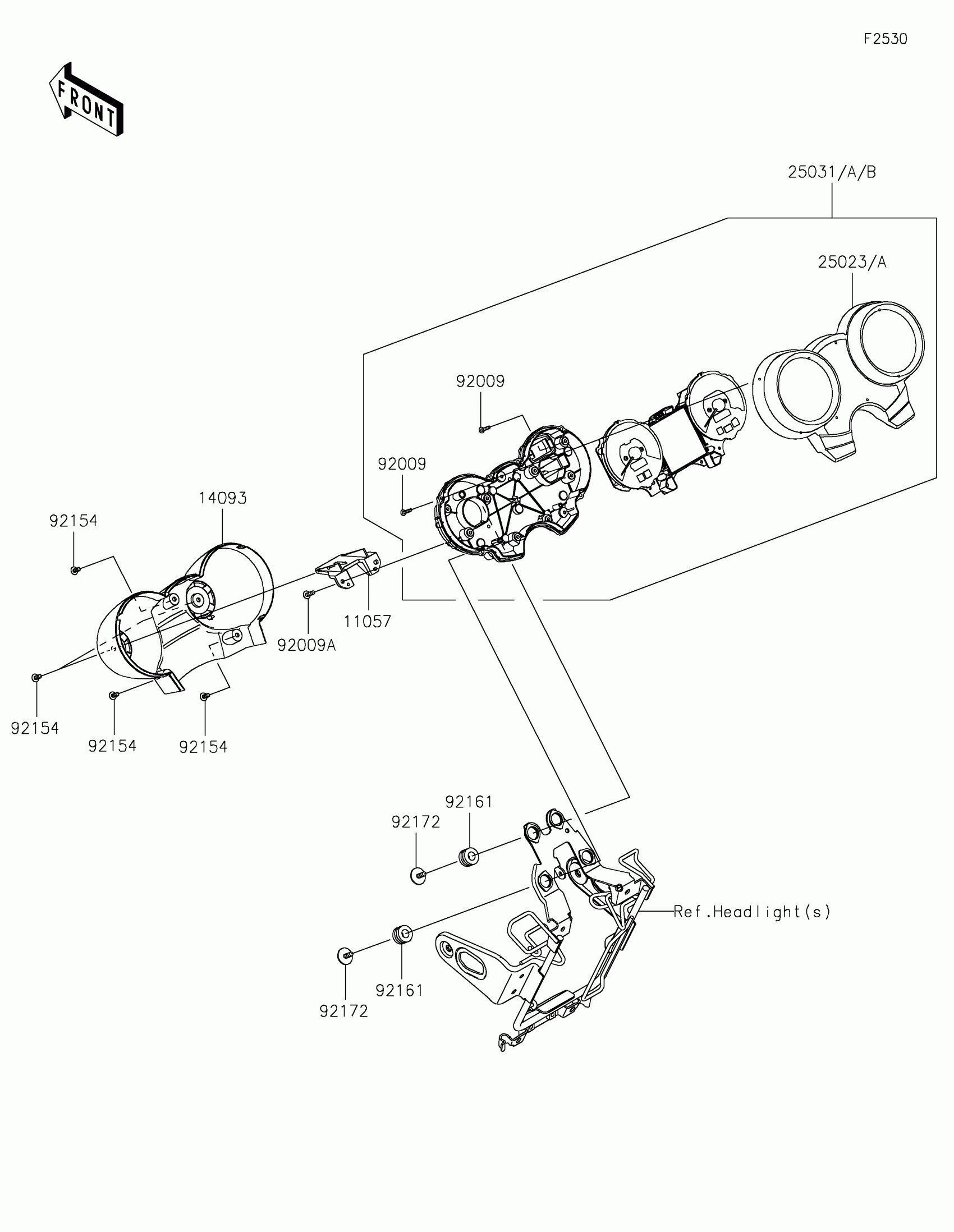

Kawasaki Z650RS ABS Meter(s) Diagram

Description

Price

11057

BRACKET

11057-0912

$21.85

14093

COVER,METER,LWR

14093-1110

$164.68

25023

COVER-METER CASE,UPP

25023-0148

$167.23

25023A

COVER-METER CASE,UPP

25023-0151

$178.89

25031

METER-ASSY,KPH

25031-0977

Unavailable

25031A

METER-ASSY,MPH

25031-0979

$1,183.08

25031B

METER-ASSY,MPH

25031-1284

$1,183.08

92009

SCREW,TAPPING,3X16

92009-1391

$2.92

92009A

SCREW,TAPPING,4X14

92009-1792

$1.88

92154

BOLT,TORX,4X10

92154-4103

$1.93

92161

DAMPER

92161-2375

$1.22

92172

SCREW,TAPPING,WP,5X14

92172-0441

$2.25
