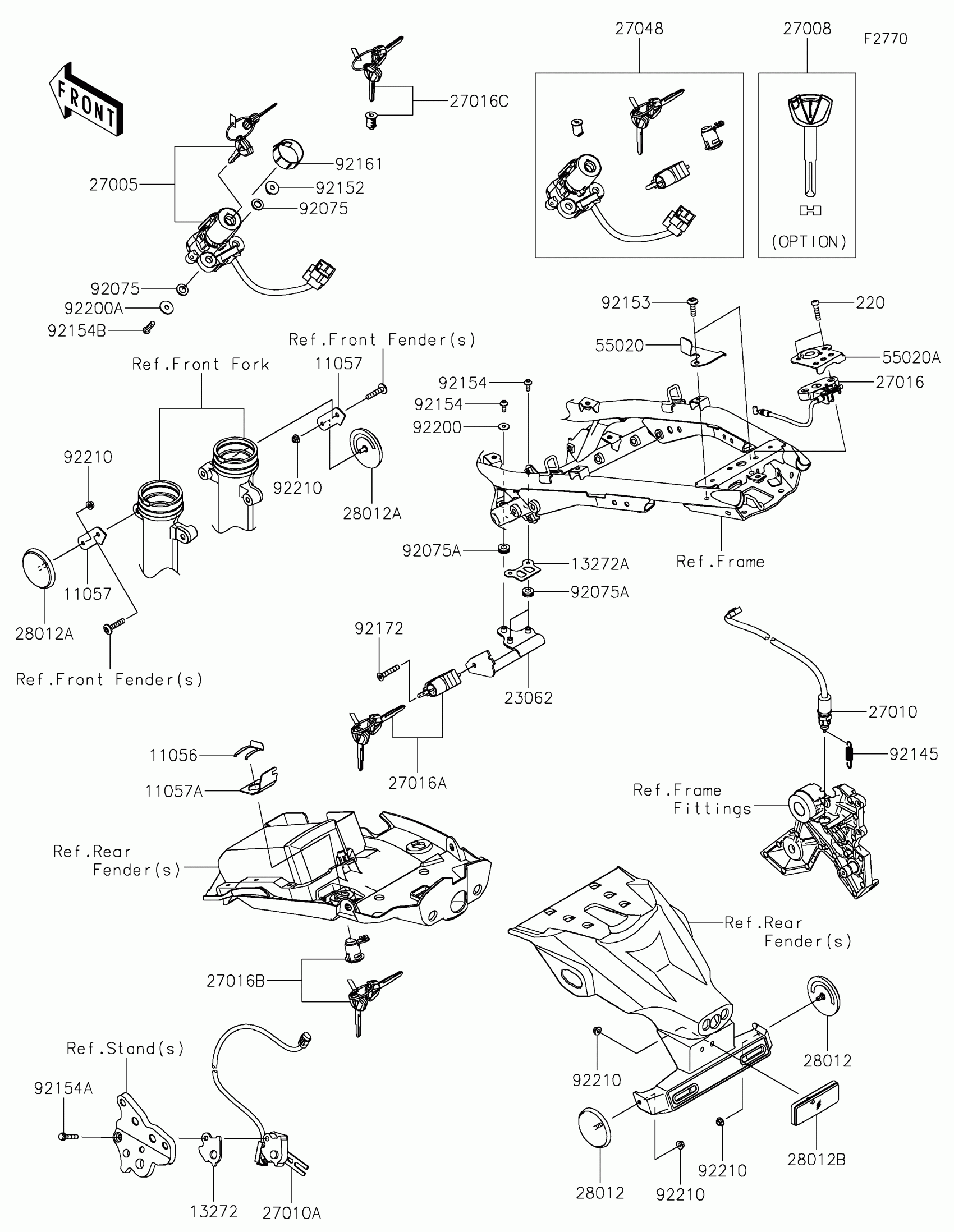

Kawasaki Z650RS ABS Ignition Switch/Locks/Reflectors Diagram

#

Description
Price

11056

BRACKET,CLASP

11056-0238

$4.53

11057

BRACKET,REFLECTOR

11057-7140

$2.46

11057A

BRACKET,SEAT LOCK

11057-7534

$3.12

13272

PLATE

13272-1330

$2.82

13272A

PLATE

13272-2967

$1.98

23062

BRACKET-COMP

23062-1288

$34.25

27005

SWITCH-ASSY-IGNITION

27005-0704

$181.84

27008

KEY-LOCK,BLANK

27008-0662

$25.56

27010

SWITCH,BRAKE

27010-0857

$29.63

27010A

SWITCH,SIDE STAND

27010-0920

$120.25

27016

LOCK-ASSY,SEAT STRIKER

27016-0025

$25.42

27016A

LOCK-ASSY,HELMET

27016-5423

$112.47

27016B

LOCK-ASSY,SEAT

27016-5424

$137.10

27016C

LOCK-ASSY,TANK CAP

27016-5425

$128.97

27048

SWITCH-ASSY

27048-5268

$531.56

28012

REFLECTOR-REFLEX

28012-0002

$19.59

28012A

REFLECTOR-REFLEX

28012-0008

$24.88

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

55020

GUARD

55020-2365

$3.29

55020A

GUARD

55020-2404

$2.25

92075

DAMPER

92075-1564

$4.15

92075A

DAMPER

92075-161

$3.57

92145

SPRING,REAR BRAKE

92145-1896

$4.42

92152

COLLAR

92152-2855

$2.12

92153

BOLT,SOCKET,6X22

92153-1356

$1.57

92154

BOLT,SOCKET,5X12

92154-0917

$3.59

92154A

BOLT,FLANGED,6X30

92154-1040

$2.19

92154B

BOLT,TORX,6X22

92154-1858

$3.01

92161

DAMPER

92161-1506

$4.97

92172

SCREW,HEXLOBE,6X35

92172-0835

$2.44

92200

WASHER,5.2X15X1.0

92200-0456

$1.22

92200A

WASHER,6X20X1.6

92200-0780

$0.95

92210

NUT,FLANGED,5MM

92210-0007

$1.90

220

SCREW-PAN-CROS,6X25

220AC0625

$1.10
