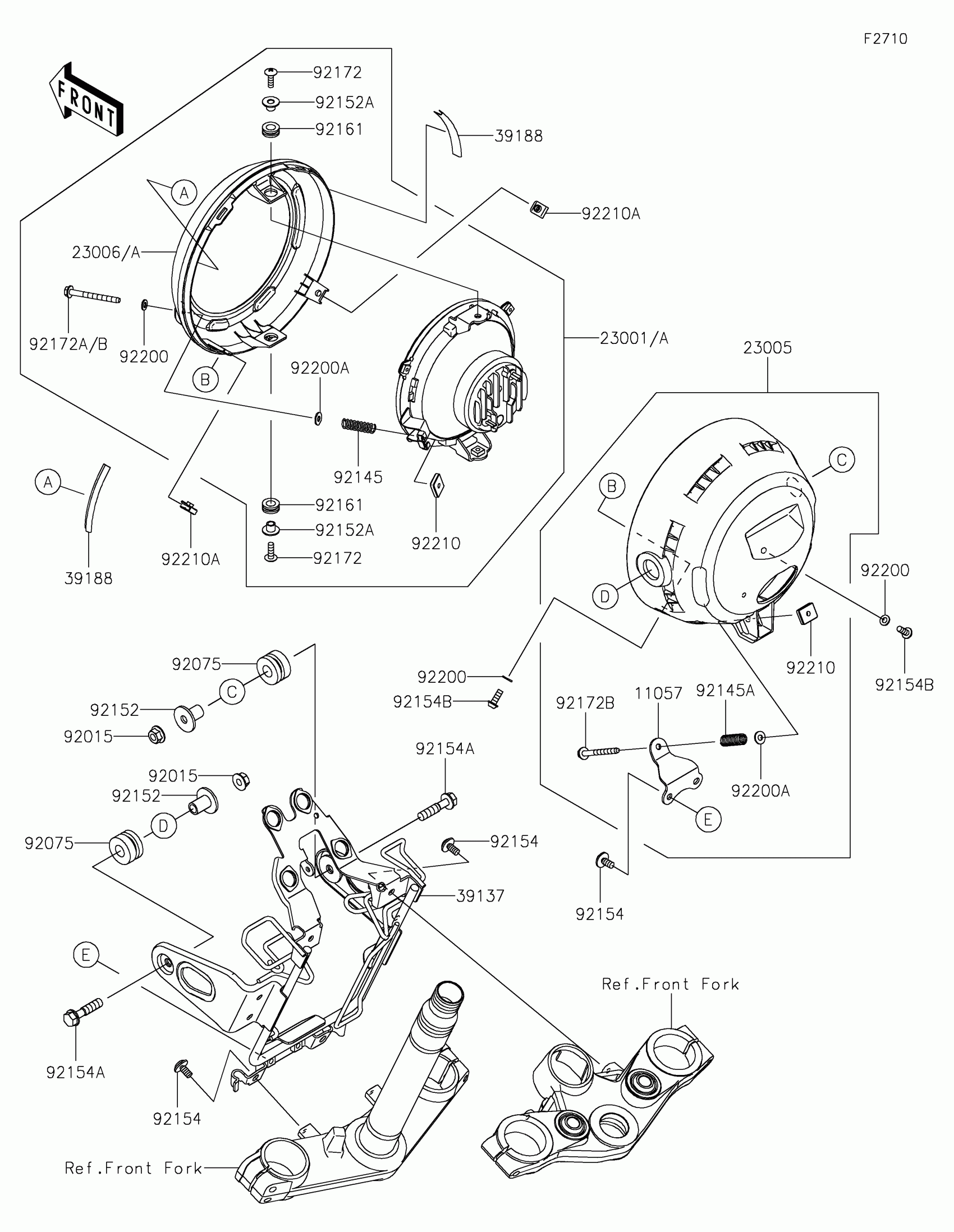

Kawasaki Z650RS ABS Headlight(s) Diagram

#

Description
Price

11057

BRACKET,HEAD LAMP BODY

11057-7150

$12.05

23001

LAMP-ASSY-HEAD,LED

23001-0071

$1,456.61

23001A

LAMP-ASSY-HEAD,LED

23001-0073

$1,456.61

23005

BODY-COMP-HEAD LAMP

23005-0315

$143.42

23006

RIM-LAMP

23006-0026

$93.68

23006A

RIM-LAMP

23006-0027

$93.68

39137

STAY-COMP

39137-0714

$100.99

39188

TAPE,70X15

39188-0597

$2.27

92015

NUT,FLANGED,8MM

92015-1014

$0.57

92075

DAMPER

92075-1736

$4.93

92145

SPRING

92145-1990

$20.51

92145A

SPRING

92145-1991

$20.51

92152

COLLAR,8X12X20.3

92152-2433

$7.76

92152A

COLLAR

92152-2785

$2.17

92154

BOLT,SOCKET,6X12

92154-2706

$1.32

92154A

BOLT,FLANGED,8X35

92154-2923

$5.71

92154B

BOLT,HEX HEAD,5X14

92154-4228

$2.20

92161

DAMPER

92161-2376

$9.73

92172

SCREW,PAN-CROSS,5X15

92172-1407

Unavailable

92172A

SCREW,FLANGED,5X52

92172-1408

$3.63

92172B

SCREW,FLANGED,5X52

92172-1409

$3.63

92200

WASHER,5.2X10X1

92200-2435

$0.45

92200A

WASHER,5.2X12X1

92200-2436

$0.86

92210

NUT

92210-1850

$3.58

92210A

NUT

92210-1851

$3.63
