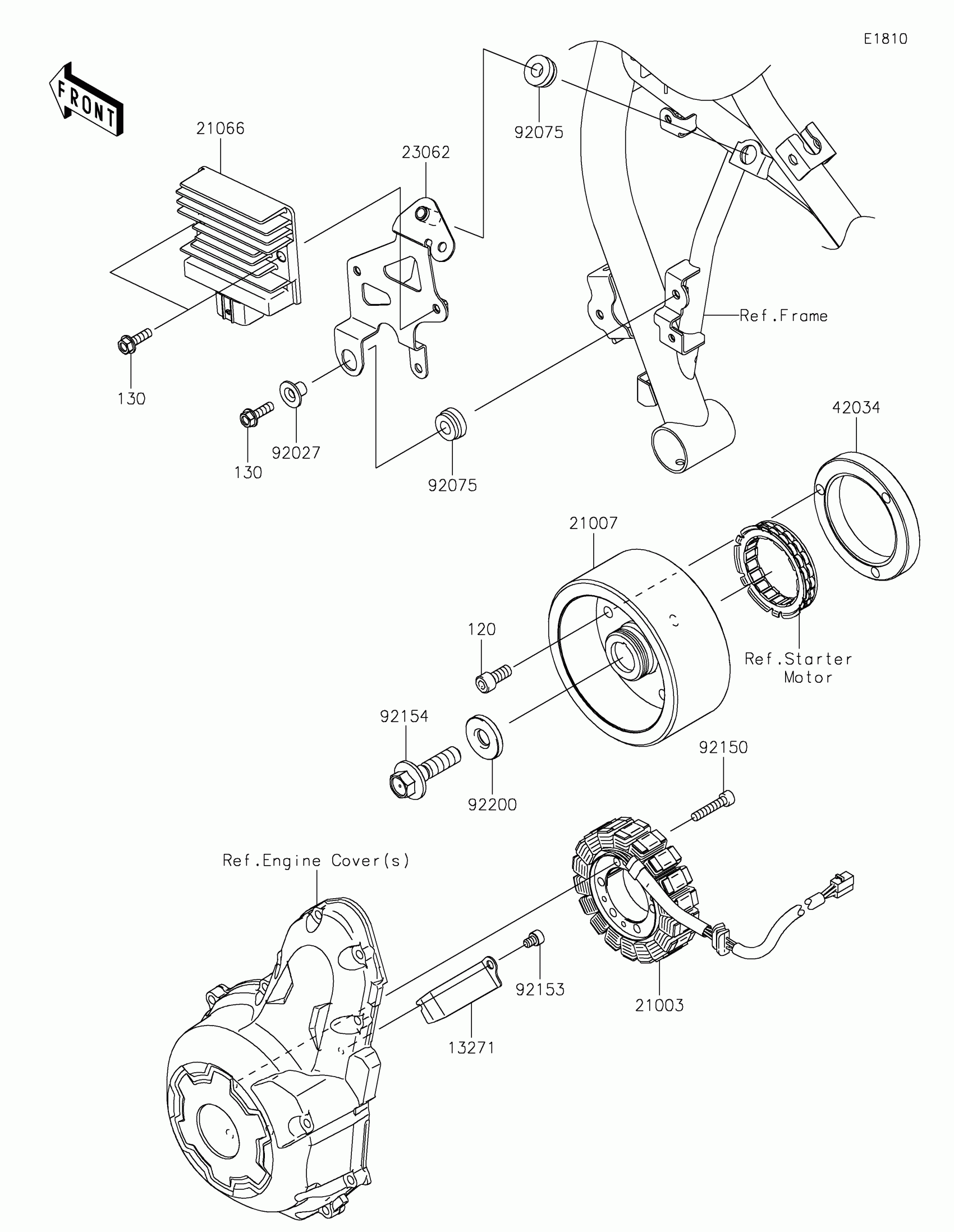

Kawasaki Z650RS ABS Generator Diagram

Description

Price

13271

PLATE

13271-0952

$7.61

21003

STATOR

21003-0206

$363.35

21007

ROTOR

21007-0601

$531.63

21066

REGULATOR-VOLTAGE

21066-0750

$187.45

23062

BRACKET-COMP

23062-1311

$13.37

42034

COUPLING

42034-1143

$123.69

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90

92150

BOLT,SOCKET,6X30

92150-1433

$3.71

92153

BOLT,SOCKET,6X8

92153-1414

$1.53

92154

BOLT,FLANGED,12X45

92154-1812

$17.47

92200

WASHER,12X33X5

92200-0220

$7.61

120

BOLT-SOCKET,8X18

120CA0818

$2.29

130

BOLT-FLANGED,6X20

130BA0620

$1.28
