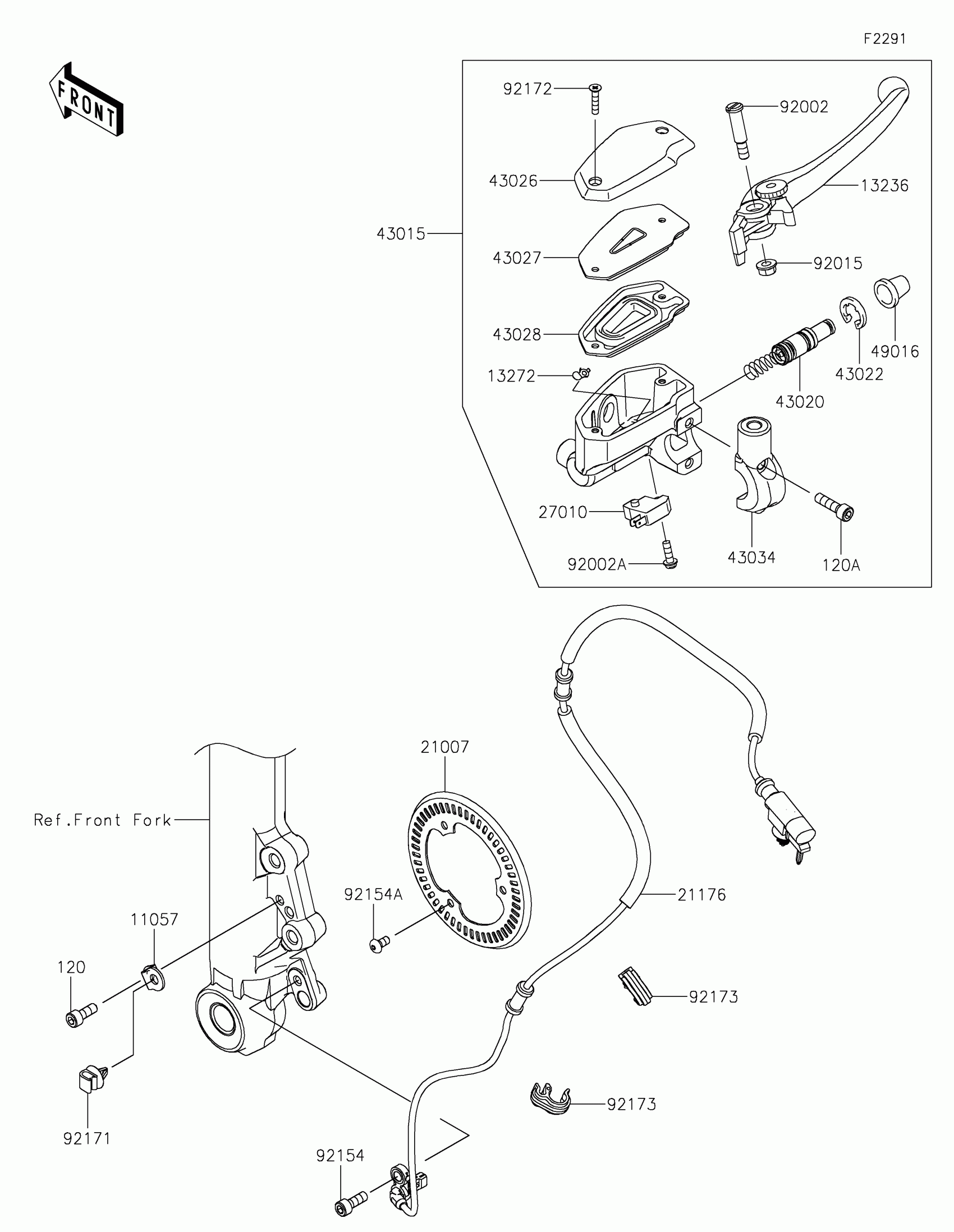

Kawasaki Z650RS ABS Front Master Cylinder Diagram

Description

Price

11057

BRACKET,SENSOR CORD

11057-7143

$2.12

13236

LEVER-COMP,FRONT BRAKE

13236-0140

$62.48

13272

PLATE

13272-0573

$7.47

21007

ROTOR,SENSOR,FR

21007-0671

$91.54

21176

SENSOR,SPEED,FR

21176-1125

$142.66

27010

SWITCH,BRAKE

27010-0762

$32.10

43015

CYLINDER-ASSY-MASTER,FR

43015-0601

$419.59

43020

PISTON-COMP-BRAKE

43020-0008

$67.05

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.69

43026

CAP-BRAKE

43026-0019

$47.10

43027

PLATE-DIAPHRAGM

43027-0008

$8.47

43028

DIAPHRAGM

43028-0015

$37.15

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

$45.93

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.90

92002

BOLT,LEVER SET,BLACK

92002-1322

$9.29

92002A

BOLT,SCREW,4X12

92002-1323

$3.12

92015

NUT,FLANGED,6MM

92015-1528

$4.37

92154

BOLT,SOCKET,6X16

92154-0235

$2.41

92154A

BOLT,SOCKET,5X10

92154-2801

$0.88

92171

CLAMP

92171-0640

$3.51

92172

SCREW,4X20

92172-0320

$3.11

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.27

120

BOLT-SOCKET,6X16

120CA0616

$2.05

120A

BOLT-SOCKET,6X22

120CB0622

$4.68
