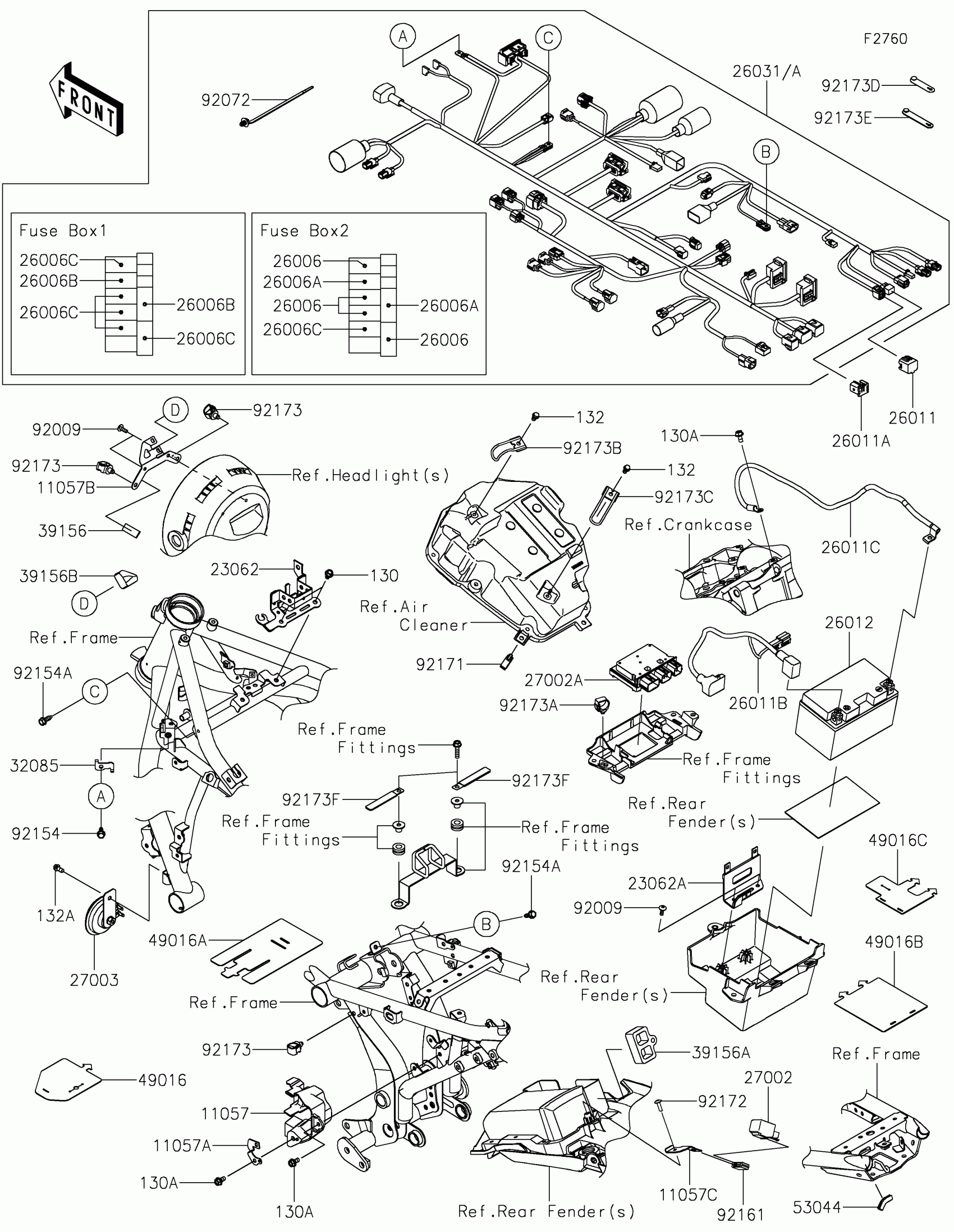

Kawasaki Z650RS ABS Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,MAGNETIC SW.

11057-0137

$7.78

11057A

BRACKET,COUPLER

11057-0138

$2.20

11057B

BRACKET,SIGNAL LAMP

11057-7138

$4.47

11057C

BRACKET,RELAY

11057-7590

$3.12

23062

BRACKET-COMP

23062-1318

$12.71

23062A

BRACKET-COMP,FUSE BOX

23062-1339

$8.95

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$5.71

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.32

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26011B

WIRE-LEAD,BATTERY(+)

26011-1947

$46.37

26011C

WIRE-LEAD,BATTERY(-)

26011-1948

$34.75

26012

BATTERY,YTZ10,12V 8.6AH

26012-0689

$210.80

26031

HARNESS,MAIN

26031-3882

$1,036.23

26031A

HARNESS,MAIN

26031-3883

$1,036.23

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$55.88

27002A

RELAY-ASSY

27002-0050

$127.74

27003

HORN

27003-0158

$69.50

32085

STOPPER

32085-0890

$1.39

39156

PAD,12X32.8X2

39156-2336

$1.17

39156A

PAD,DIAGNOSTIC CONNECTOR

39156-2685

$7.51

39156B

PAD

39156-2819

$2.64

49016

COVER-SEAL

49016-0645

$5.63

49016A

COVER-SEAL,ECU CONNECTOR

49016-0672

$9.31

49016B

COVER-SEAL,REAR LAMP

49016-0699

$4.58

49016C

COVER-SEAL,FUEL-PUMP CONNECTOR

49016-0700

$3.66

53044

TRIM,L=30

53044-0001

$2.29

92009

SCREW,TAPPING,5X14

92009-1197

$2.99

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92154A

BOLT,FLANGED,6X18

92154-4008

$1.22

92161

DAMPER,15X25X8.5

92161-1443

$1.66

92171

CLAMP,BRAKE HOSE

92171-0316

$2.93

92172

SCREW,TAPPING,5X16

92172-0742

$1.43

92173

CLAMP,12MM DIA.

92173-0736

$3.85

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173B

CLAMP,A/C CASE,FR

92173-1586

$4.93

92173C

CLAMP,A/C CASE,RR

92173-1587

$4.93

92173D

CLAMP

92173-2198

$1.32

92173E

CLAMP

92173-2199

$1.32

92173F

CLAMP

92173-2480

$2.29

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49
