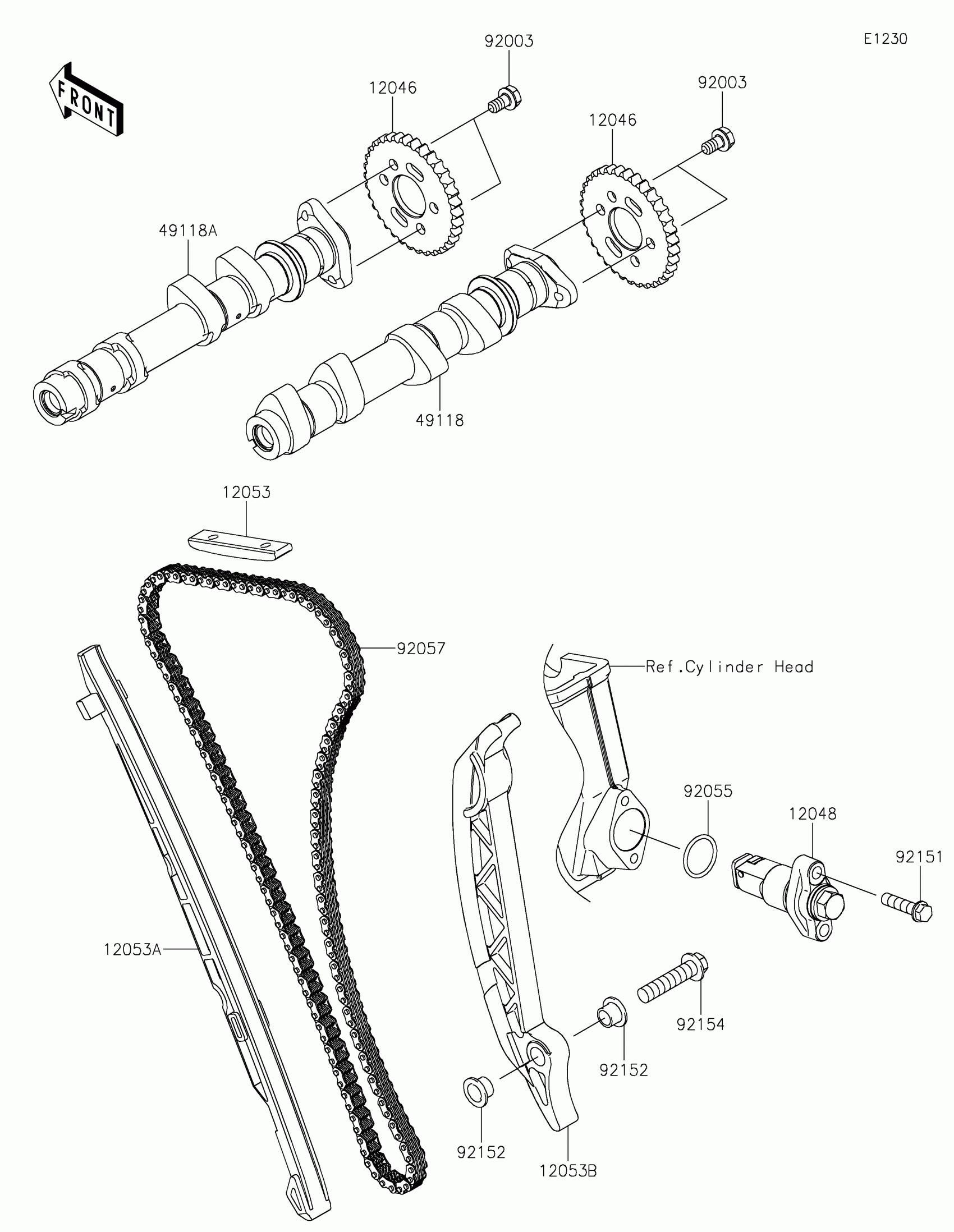

Kawasaki Z650RS ABS Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAM,34T

12046-0041

$37.40

12048

TENSIONER-ASSY

12048-0102

$84.50

12053

GUIDE-CHAIN,UPP

12053-0051

$19.45

12053A

GUIDE-CHAIN,FR

12053-0059

$67.31

12053B

GUIDE-CHAIN,RR

12053-0239

$81.74

49118

CAMSHAFT-COMP,INTAKE

49118-0953

$318.75

49118A

CAMSHAFT-COMP,EXHAUST

49118-0954

$318.75

92003

BOLT,FLANGED,6X11

92003-208

$3.29

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM,92RH 2015-134M

92057-0618

$81.81

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR,8.2X10.6X6.9

92152-0974

$2.68

92154

BOLT,FLANGED,8X35

92154-0725

$2.68
