2019 Kawasaki Z650 Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

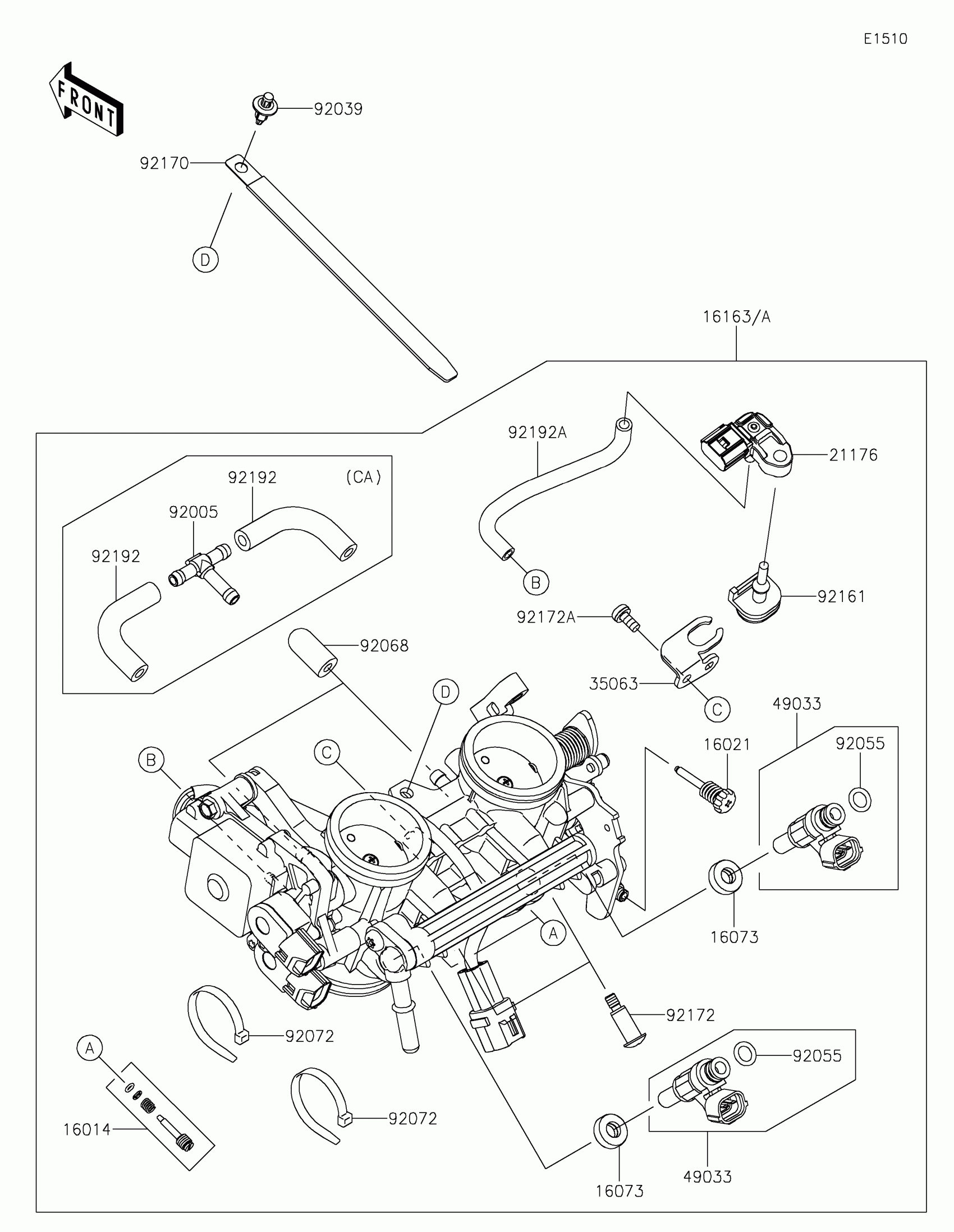

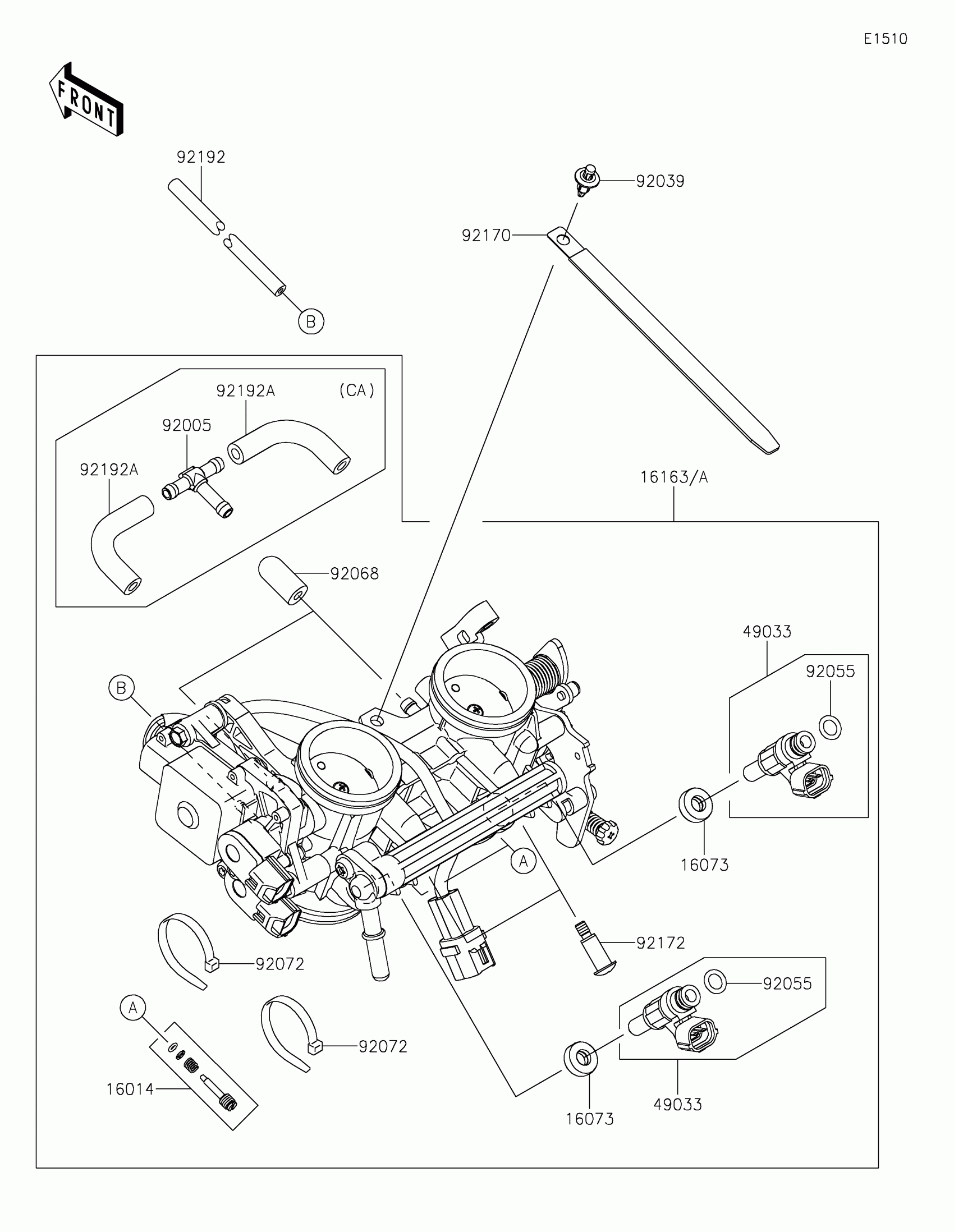

2019 Kawasaki Z650 Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16014

SCREW-PILOT AIR

16014-0002

1

$23.08

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

16163

THROTTLE-ASSY

16163-0873

1

$819.75

In stock

49033

NOZZLE-INJECTION

49033-0042

1

$94.10

In stock

92005

FITTING,3WAY

92005-0730

1
Out of stock

92039

RIVET

92039-0707

1

$1.69

In stock

92055

1

$2.42

In stock

92072

BAND,SUB-HARNESS

92072-0012

1

$3.97

In stock

92170

CLAMP,L=150

92170-1114

1

$7.36

In stock

92172

1

$2.29

In stock

92192

TUBE,3X6.7X300

92192-0977

1
Out of stock

92192A

TUBE

92192-1045

1
Out of stock

16163A

THROTTLE-ASSY

16163-0875

1

$819.75

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock
