2019 Kawasaki Z650 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

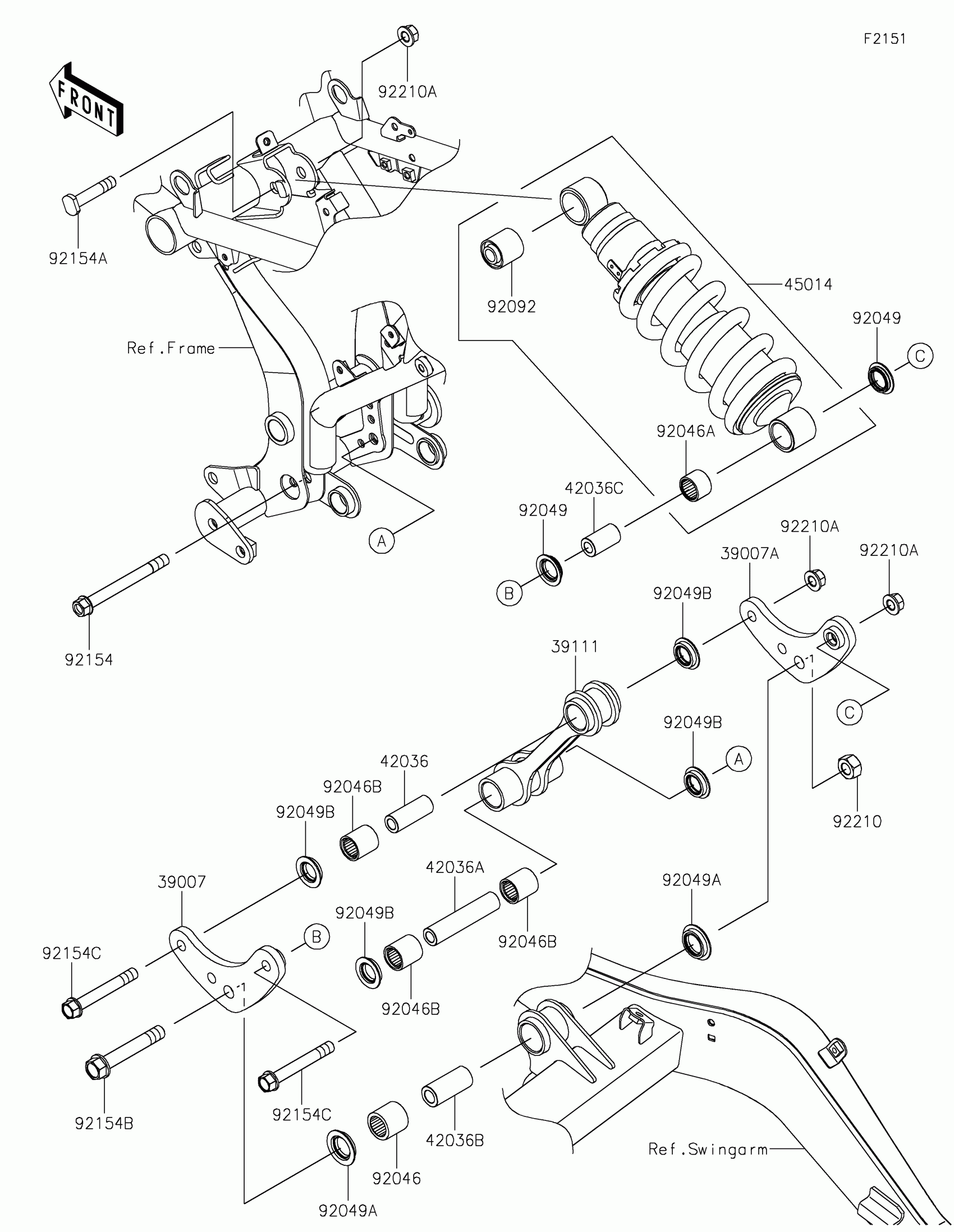

2019 Kawasaki Z650 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,LH

39007-0401

1

$75.32

In stock

39007A

ARM-SUSP,RH

39007-0402

1

$75.32

In stock

39111

ROD-TIE

39111-0343

1

$160.02

In stock

42036

SLEEVE,10.1X17X44.5

42036-0718

1

$22.61

In stock

42036A

SLEEVE,10.1X17X79.8

42036-0787

1

$30.39

In stock

42036B

SLEEVE,12.1X20X44.5

42036-0788

1

$23.46

In stock

42036C

SLEEVE,10.1X18X32

42036-1344

1

$10.83

In stock

45014

SHOCKABSORBER,P.SILVER

45014-0565-458

1

$476.88

In stock

92046

BEARING-NEEDLE,7E-HVS20X27X25

92046-1236

1
Out of stock

92046A

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92046B

BEARING-NEEDLE,SFYZM172425

92046-1273

1
Out of stock

92049

SEAL-OIL

92049-0133

1
Out of stock

92049A

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049B

SEAL-OIL,MHA17245.7F

92049-1223

1
Out of stock

92092

BUSHING-RUBBER

92092-1058

1

$30.46

In stock

92154

BOLT,FLANGED,10X100

92154-1257

1

$9.88

In stock

92154A

BOLT,10X50

92154-2165

1

$5.14

In stock

92154B

BOLT,FLANGED,12X75

92154-2166

1

$10.85

In stock

92154C

BOLT,FLANGED,10X75

92154-2226

1

$8.97

In stock

92210

NUT,LOCK,12MM

92210-0274

1
Out of stock

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock
