2019 Kawasaki Z650 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 2019 Kawasaki Z650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

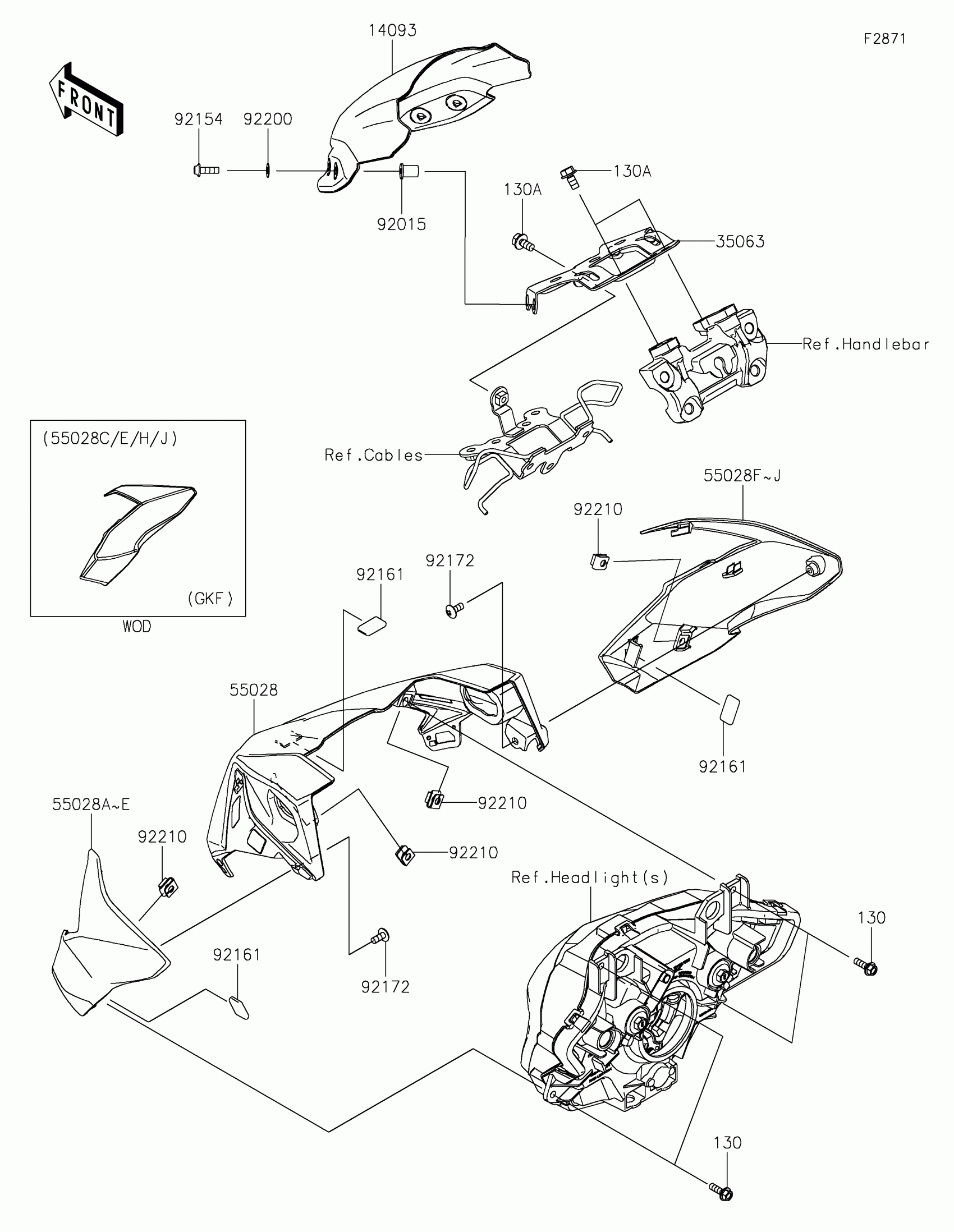

2019 Kawasaki Z650 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X16

130BA0516

1

$0.85

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

14093

COVER,METER

14093-0487

1

$173.07

In stock

35063

STAY,METER

35063-1352

1

$29.50

In stock

55028

COWLING,UPP

55028-0587

1

$22.44

In stock

55028C

COWLING,UPP,LH,S.C.BLUE

55028-0588-62K

1

$55.91

In stock

55028E

1

$55.91

In stock

55028H

COWLING,UPP,RH,S.C.BLUE

55028-0589-62K

1

$55.91

In stock

55028J

1

$55.91

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92154

BOLT,SOCKET,5X16

92154-1701

1

$1.10

In stock

92161

DAMPER,12X23

92161-1367

1

$1.10

In stock

92172

SCREW,5X12

92172-0821

1

$0.85

In stock

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

1
Out of stock

92210

NUT,5MM

92210-0351

1
Out of stock
