2025 Kawasaki Z500 Water Pipe Diagram

← All diagrams

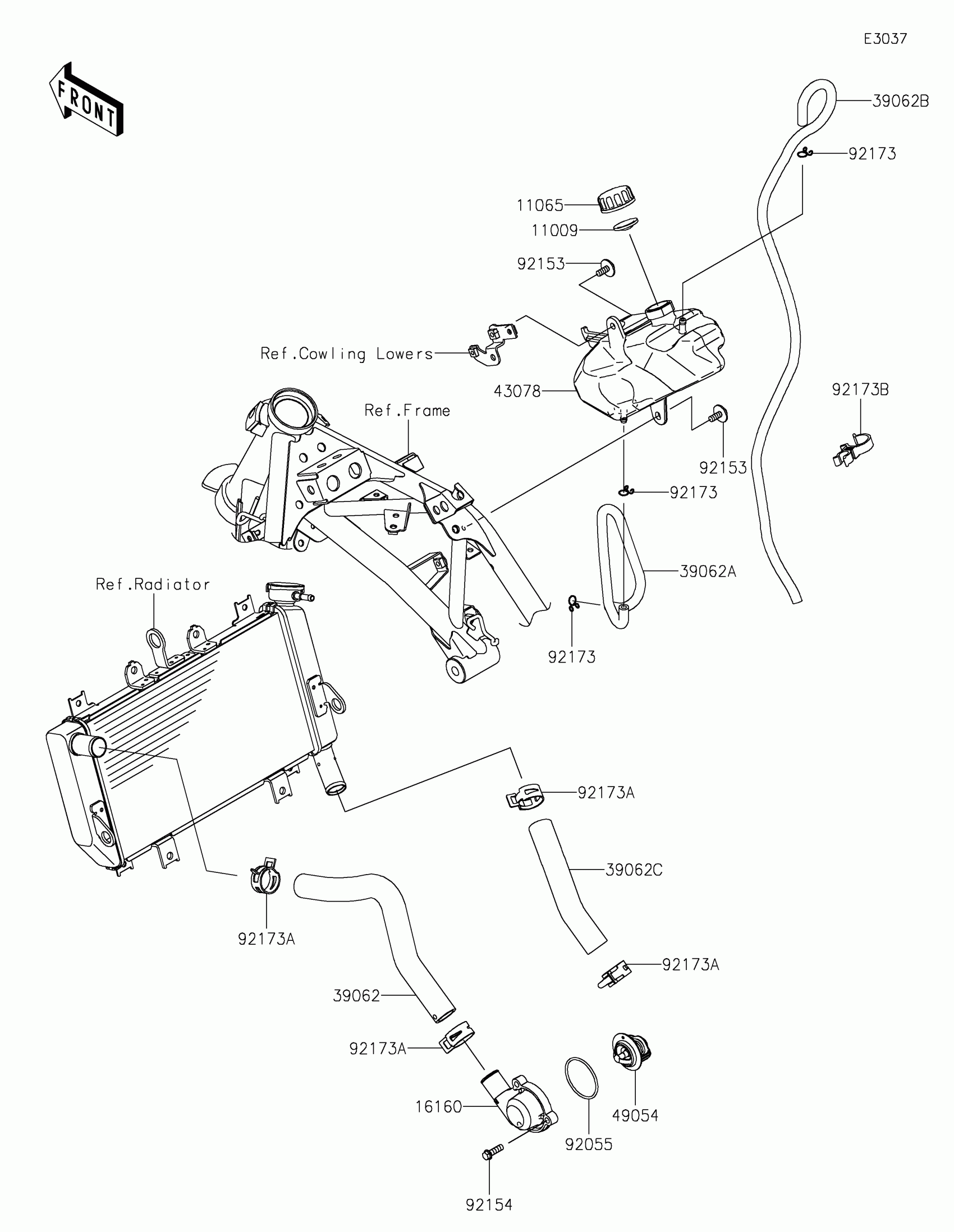

Find the part on the Water Pipe diagram for your 2025 Kawasaki Z500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Z500 Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11065

CAP

11065-0969

1

$1.69

In stock

16160

BODY,THERMOSTAT

16160-0830

1

$47.83

In stock

39062

1

$13.29

In stock

39062A

1

$7.47

In stock

39062B

1

$9.47

In stock

39062C

1

$8.06

In stock

43078

RESERVOIR

43078-0605

1

$43.55

In stock

49054

THERMOSTAT

49054-0001

1

$27.83

In stock

92055

RING-O,46.7X2.4

92055-0992

1

$5.00

In stock

92153

1

$1.53

In stock

92154

BOLT,FLANGED,6X20

92154-1778

1

$1.88

In stock

92173

CLAMP

92173-0050

1

$5.75

In stock

92173A

CLAMP

92173-1688

1

$3.07

In stock

92173B

CLAMP

92173-1691

1

$2.59

In stock
