2025 Kawasaki Z500 Se Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2025 Kawasaki Z500 Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

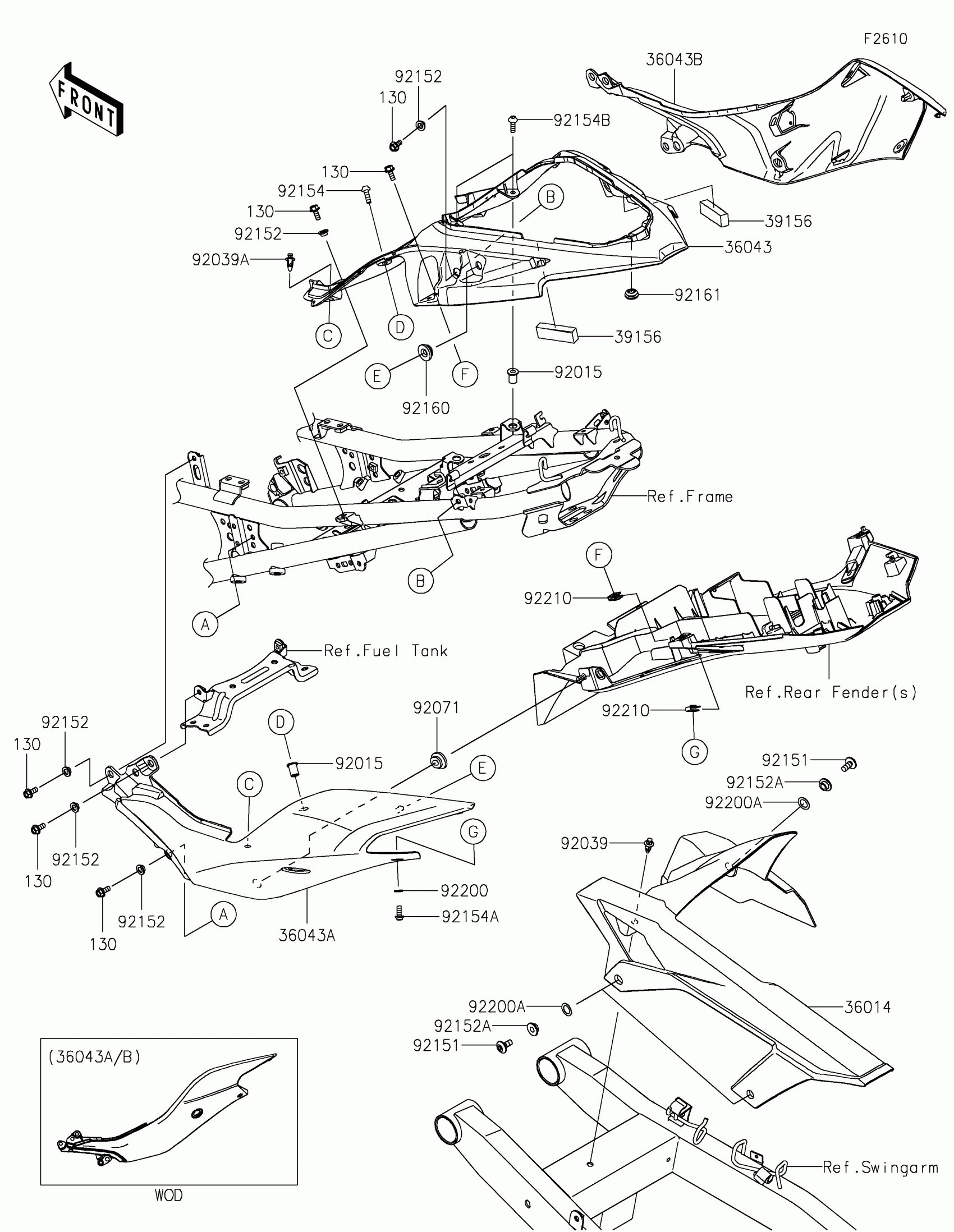

2025 Kawasaki Z500 Se Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-0571

1
Out of stock

36043

COVER-TAIL,CNT

36043-0001

1
Out of stock

36043A

COVER-TAIL,LH,M.M.G.GRAY

36043-0002-68P

1
Out of stock

36043B

COVER-TAIL,RH,M.M.G.GRAY

36043-0003-68P

1
Out of stock

39156

PAD,50X10X15

39156-2932

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92039A

RIVET

92039-0709

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6X8X4.5

92152-2395

1
Out of stock

92152A

COLLAR,6.5X10X5.9

92152-2486

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-1701

1
Out of stock

92154A

BOLT,SOCKET,5X12

92154-4289

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-4294

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER

92161-0631

1
Out of stock

92200

WASHER,5.2X10X1

92200-2286

1
Out of stock

92200A

WASHER,10.4X15.9X0.5

92200-2525

1
Out of stock

92210

NUT

92210-0571

1
Out of stock

130

BOLT-FLANGED,5X12

130BA0512

1
Out of stock
